Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

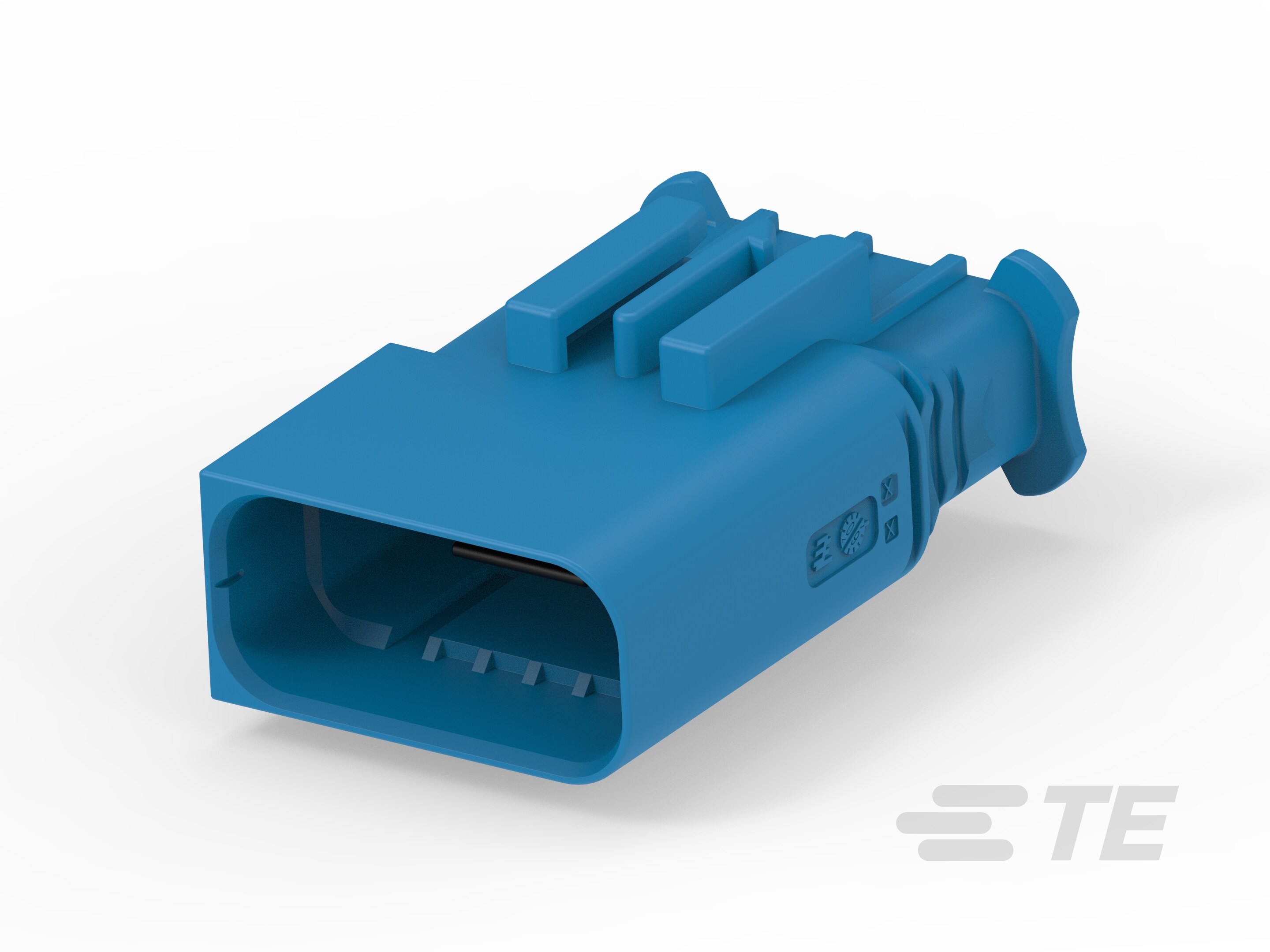

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Male Terminals

• Connector System : Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : Integrated in Housing

• Connector & Contact Terminates To : Wire & Cable

• Number of Positions : 10

• Number of Rows : 2

• Operating Voltage (VDC): 16

• Nominal Voltage Architecture (V): 16

• Cable Exit Angle : 180°

• Primary Product Color : Blue

• Connector & Keying Code : C

• Contact Type : Tab

• Contact Size : 1.2mm

• Mating Tab Width : 1.2 mm [ .04 in ]

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Housing Material : PBT GF

• Centerline (Pitch) : 4.5 mm [ .17 in ]

• Connector Height : 21.45 mm [ .844 in ]

• Product Length : 30.2 mm [ 1.189 in ]

• Product Width : 47.6 mm [ 1.874 in ]

• Row-to-Row Spacing : 4.5 mm [ .177 in ]

• Operating Temperature (Max) : 150 °C [ 302 °F ]

• Operating Temperature Range : -40 – 150 °C [ -40 – 302 °F ]

• Circuit Application : Power

• UL Flammability Rating : UL 94HB

• IP Rating : IPX9K

• Packaging Method : Box

• Packaging Quantity : 900
