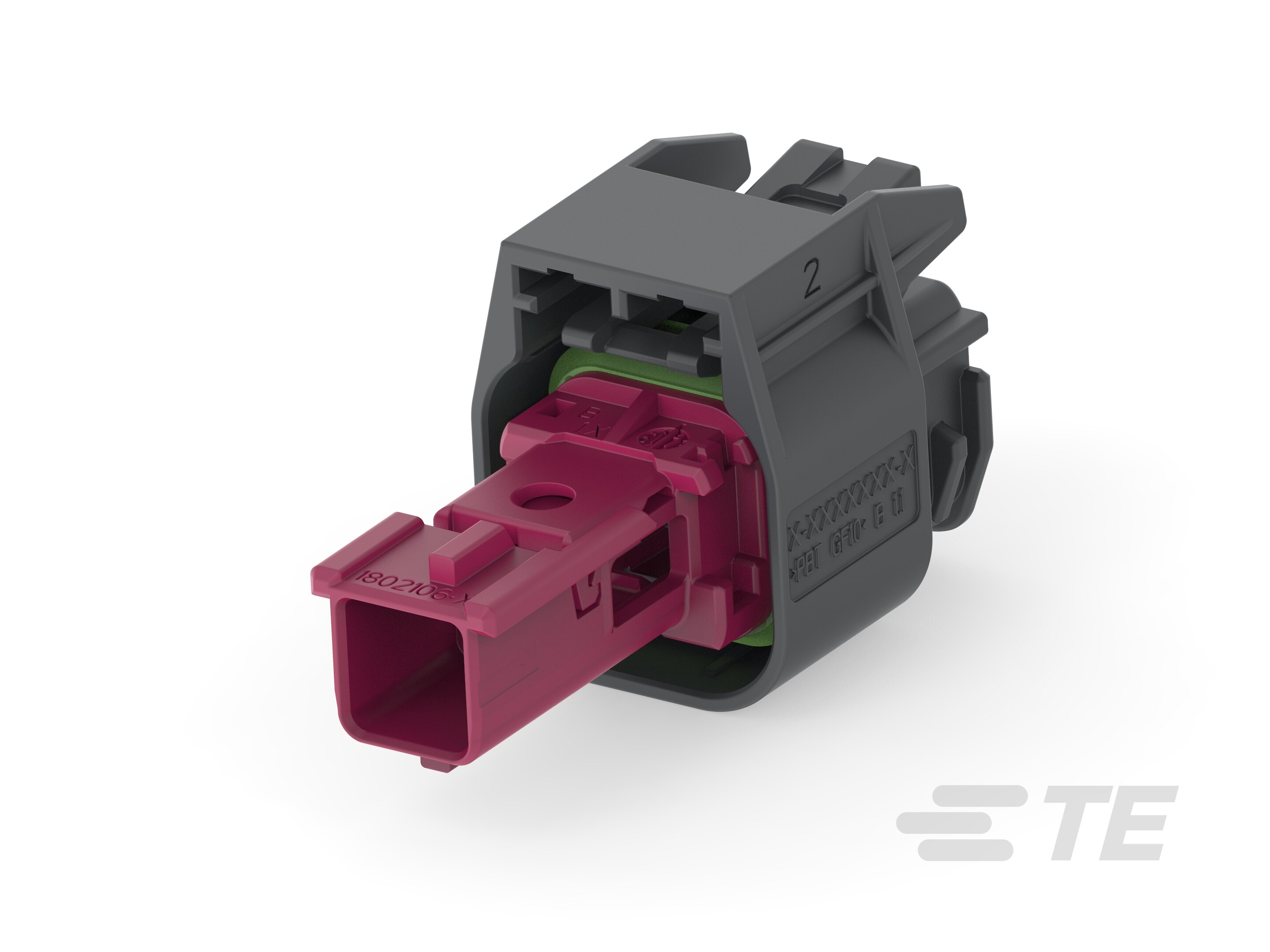

1802105-4
Cable-to-Board / Cable-to-Cable, Sealable, 180° Cable Exit, 1 Position, D Code, Housing for Female Terminals, Data Connectivity Housings
1802105-4
Cable-to-Board / Cable-to-Cable, Sealable, 180° Cable Exit, 1 Position, D Code, Housing for Female Terminals, Data Connectivity Housings
- TE Internal #: 1802105-4
- TE Internal Description: 1PORT,MATENET,REC HSG,SLD,COD D,UTP,ASSY
-
Connector System : Cable-to-Board, Cable-to-Cable
-
Sealable : Yes
-
Cable Exit Angle : 180°
-
Number of Positions : 1
-
Connector & Keying Code : D
Documents
Product Drawings
- REC HSG ASSY MATEnet Sealed 1-Port ENG_CD_1802105_C1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1802105-4_C.pdf 3D
- Customer View Model ENG_CVM_CVM_1802105-4_C.2d_dxf.zip English
- ENG_CVM_CVM_1802105-4_C.3d_igs.zip English
- ENG_CVM_CVM_1802105-4_C.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-94431_E.pdf English
