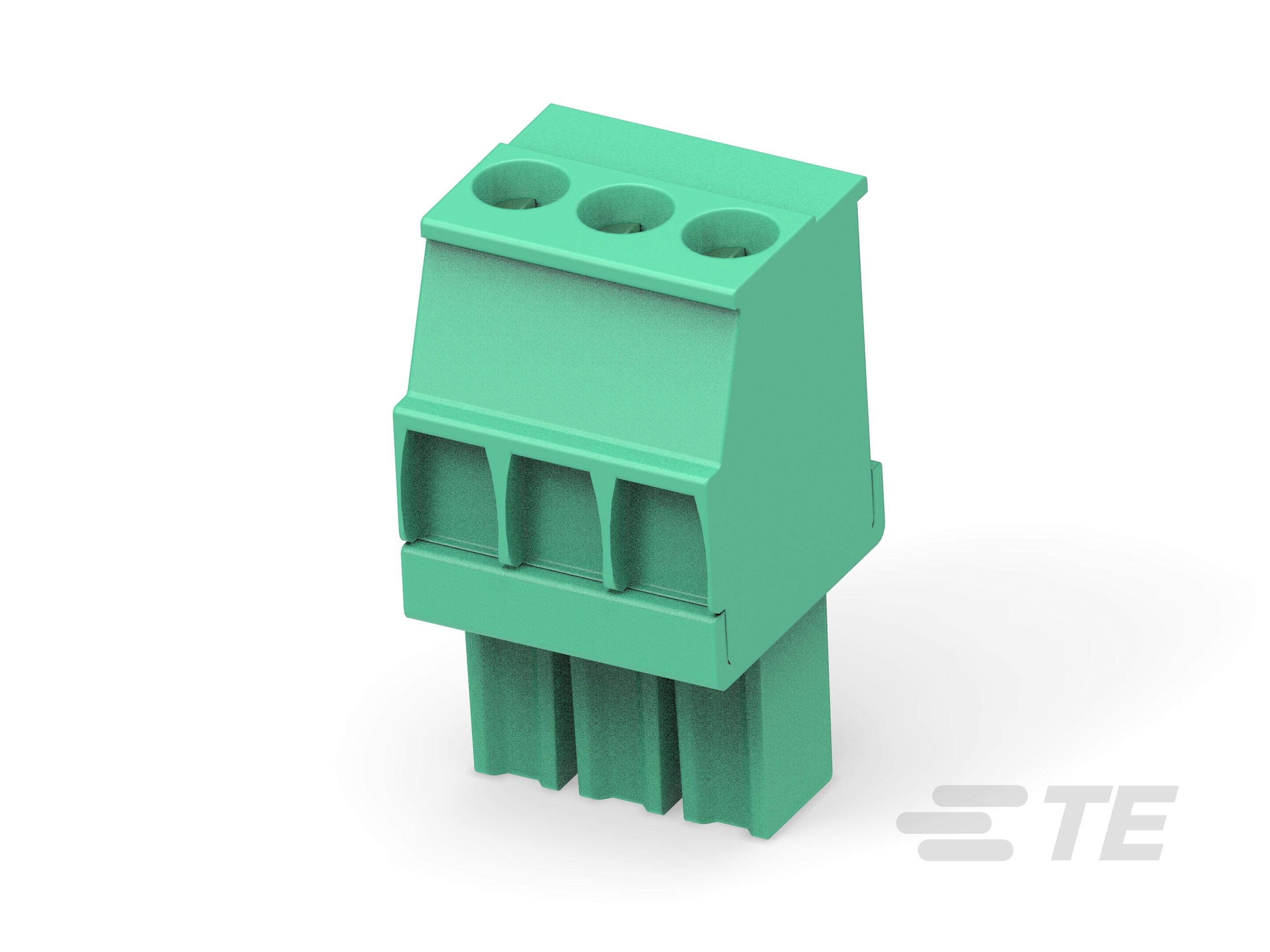

3 Position PCB Terminal Block, Plug, Wire-to-Board, 3.5 mm [.138 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 14 AWG, .05 – 2 mm² Wire, 300 VAC
1986371-3
3 Position PCB Terminal Block, Plug, Wire-to-Board, 3.5 mm [.138 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 14 AWG, .05 – 2 mm² Wire, 300 VAC
-
- Buchanan
- TE Internal #: 1986371-3
- TE Internal Description: Str Plug, 3.5mm, Green, LH, 3
-
Number of Positions : 3
-
Terminal Block Connector Type : Plug
-
Connector System : Wire-to-Board
-
Centerline (Pitch) : 3.5 mm [ .138 in ]
-
Number of Rows : 1
