1SNA519003R0000

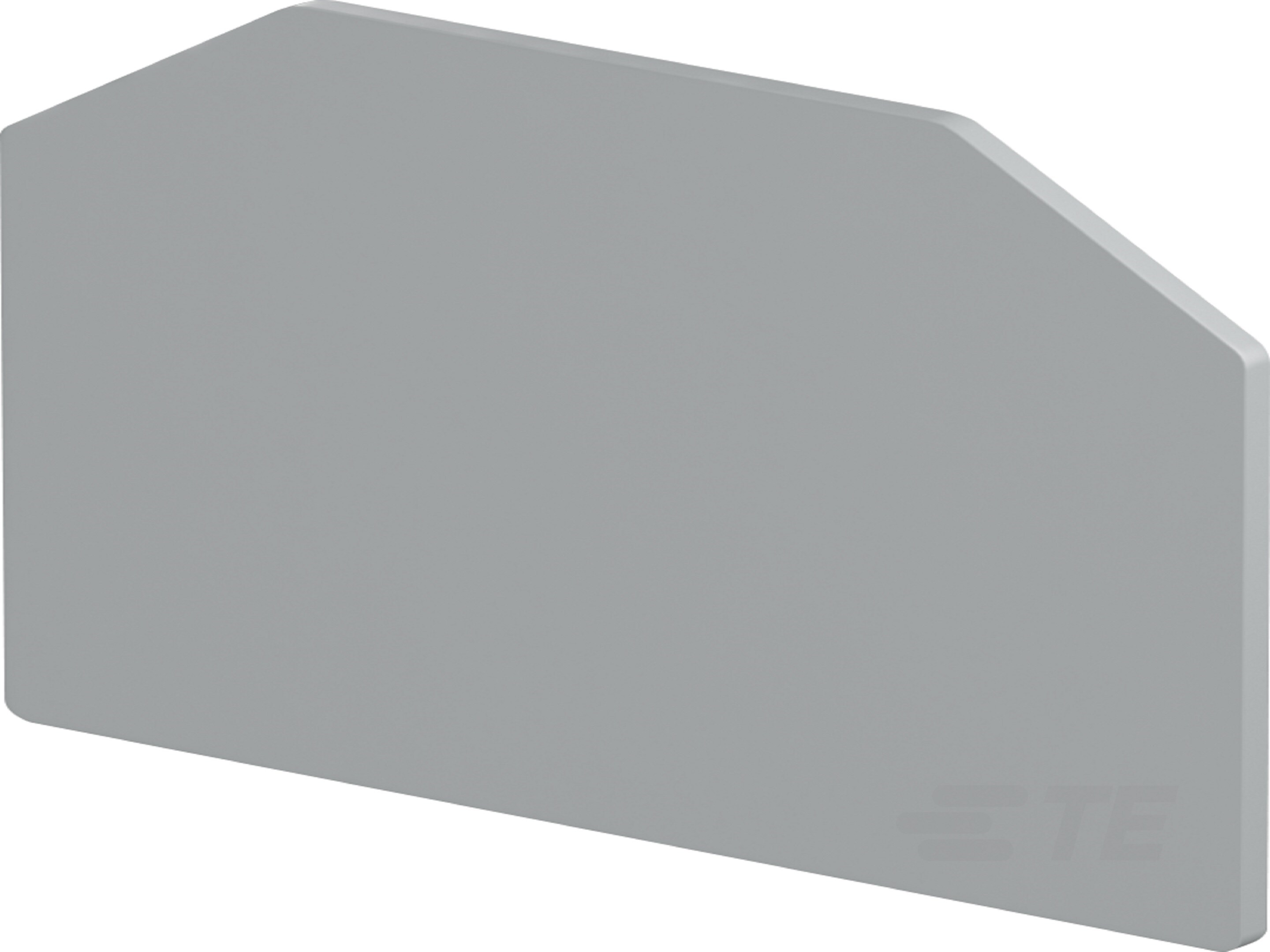

End Section Cover, Used With Screw Clamp Terminal Blocks, -40 – 100 °C [-40 – 212 °F], Terminal Block & Strip Insulating Accessories
1SNA519003R0000
End Section Cover, Used With Screw Clamp Terminal Blocks, -40 – 100 °C [-40 – 212 °F], Terminal Block & Strip Insulating Accessories
- TE Internal #: 1SNA519003R0000
- TE Internal Description: E-RGW2.5
-
Insulating Accessory Type : End Section Cover
-
Compatible With Block or Strip Type : Screw Clamp Terminal Blocks
-
Operating Temperature Range : -40 – 100 °C [ -40 – 212 °F ]
Documents
Product Drawings
- E-RGW2,5 ENG_CD_1SNP200136-0100_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_1SNA519003R0000_A.pdf 3D
- Customer View Model ENG_CVM_CVM_1SNA519003R0000_A.2d_dxf.zip English
- ENG_CVM_CVM_1SNA519003R0000_A.3d_igs.zip English
- ENG_CVM_CVM_1SNA519003R0000_A.3d_stp.zip English
Datasheets & Catalog Pages
- RGW RING LUG TERMINAL BLOCKS ENG_CS_1-1773970-7_2002.pdf English
- E-RGW2.5 ENG_DS_1SNA519003R0000_A.pdf English
- ENTRELEC Terminal Block - Master Catalog CHI_DS_1-1773980-7_2001.pdf
- ENTRELEC Terminal Block - Master Catalog ENG_DS_1-1773980-7_2001.pdf English
