Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

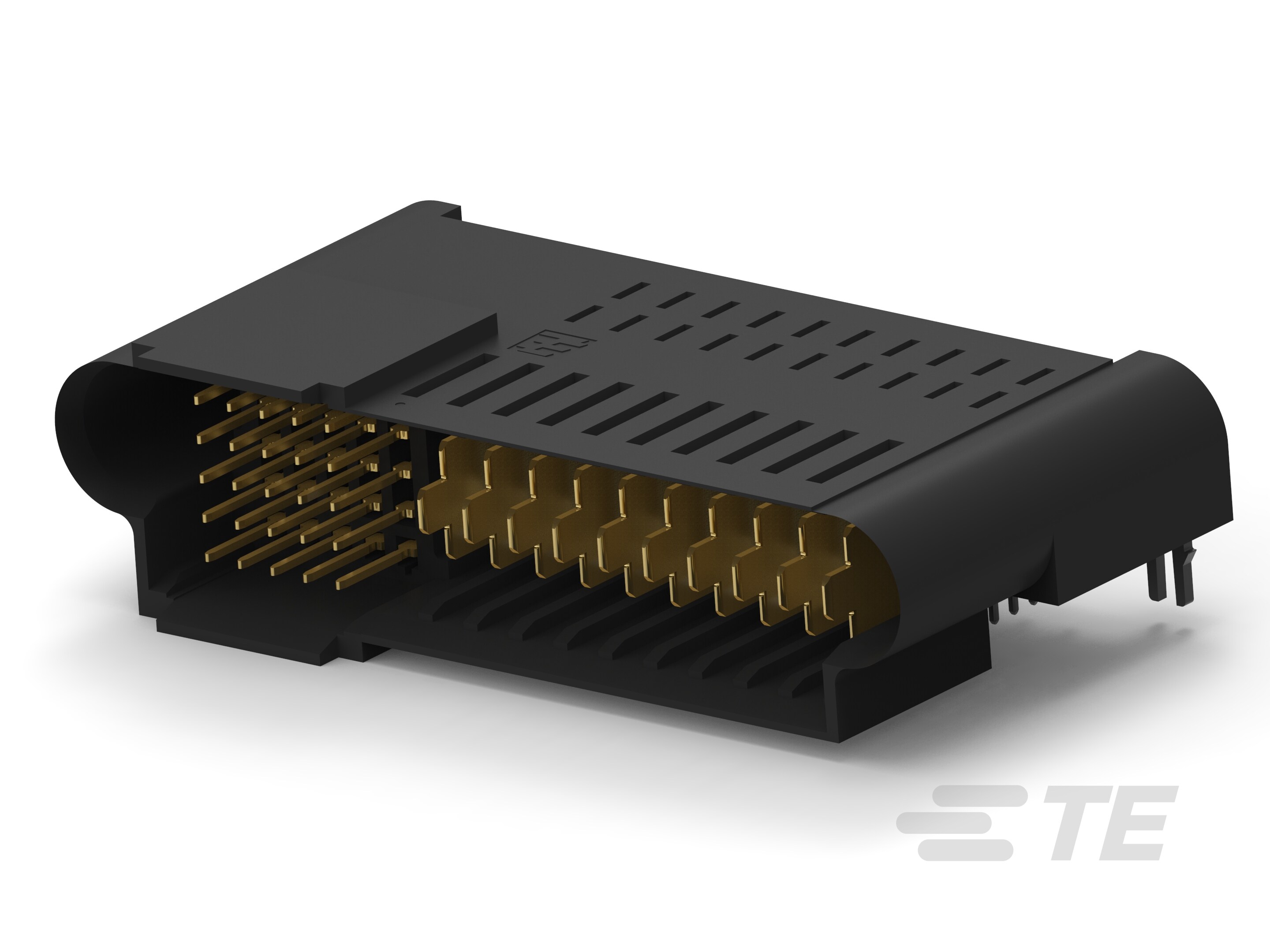

• Connector Shape : Rectangular

• Mixed & Hybrid Header : Yes

• PCB Connector Assembly Type : PCB Mount Plug

• Connector System : Board-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Board-to-Board Configuration : Co-Planar

• Number of Power Positions : 10

• Number of Signal Positions : 25

• Mating & Unmating Configuration : Make First / Break Last

• Number of Loaded Positions : 35

• PCB Mount Orientation : Right Angle

• Number of Positions : 35

• Number of Rows : 5

• Housing Material : High Temperature Thermoplastic Glass-Filled

• Centerline (Pitch) (mm): 2, 2.75

• Centerline (Pitch) (in): .108, .079

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Layout : Matrix

• Contact Shape & Form : Single Beam

• PCB Contact Termination Area Plating Material Thickness : .5 – 1.25 µm [ 20 – 49.21 µin ]

• Contact Mating Area Plating Material Thickness : .08 – .762 µm [ 3.15 – 30 µin ]

• Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Gold

• Contact Type : Pin, Blade

• Contact Current Rating (Max) (A): 16

• Termination Post & Tail Length : 3.3 mm [ .13 in ]

• Termination Method to PCB : Through Hole - Press-Fit, Through Hole - Solder

• PCB Mount Alignment Type : Boardlock

• PCB Mount Retention Type : Boardlock

• Mating Alignment Type : Passive Guide

• PCB Mount Retention : With

• PCB Mount Alignment : With

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Connector Profile : Low

• Primary Product Color : Black

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -40 – 125 °C [ -40 – 257 °F ]

• Glow Wire Rating : Standard Part - Not Glow Wire

• Compatible With Approved Standards Products : UL E28476

• UL Rating : Recognized

• Compatible With Agency/Standards Products : CSA

• UL Flammability Rating : UL 94V-0

• Packaging Quantity : 32

• Packaging Method : Tray

• Connector Length : 51.71 mm [ 2.04 in ]

• Connector Height : 14 mm [ .55 in ]

• PCB Thickness (Recommended) : 1.4 – 2.62 mm [ .055 – .103 in ]

• Connector Width : 26.5 mm [ 1.04 in ]

• Row-to-Row Spacing (mm): 1.5, 2

• Row-to-Row Spacing (in): .06, .079

• Insulation Resistance (MΩ): 1000

• Operating Voltage (VDC): 60

• Operating Voltage (VAC): 60

• Circuit Application : Power & Signal
