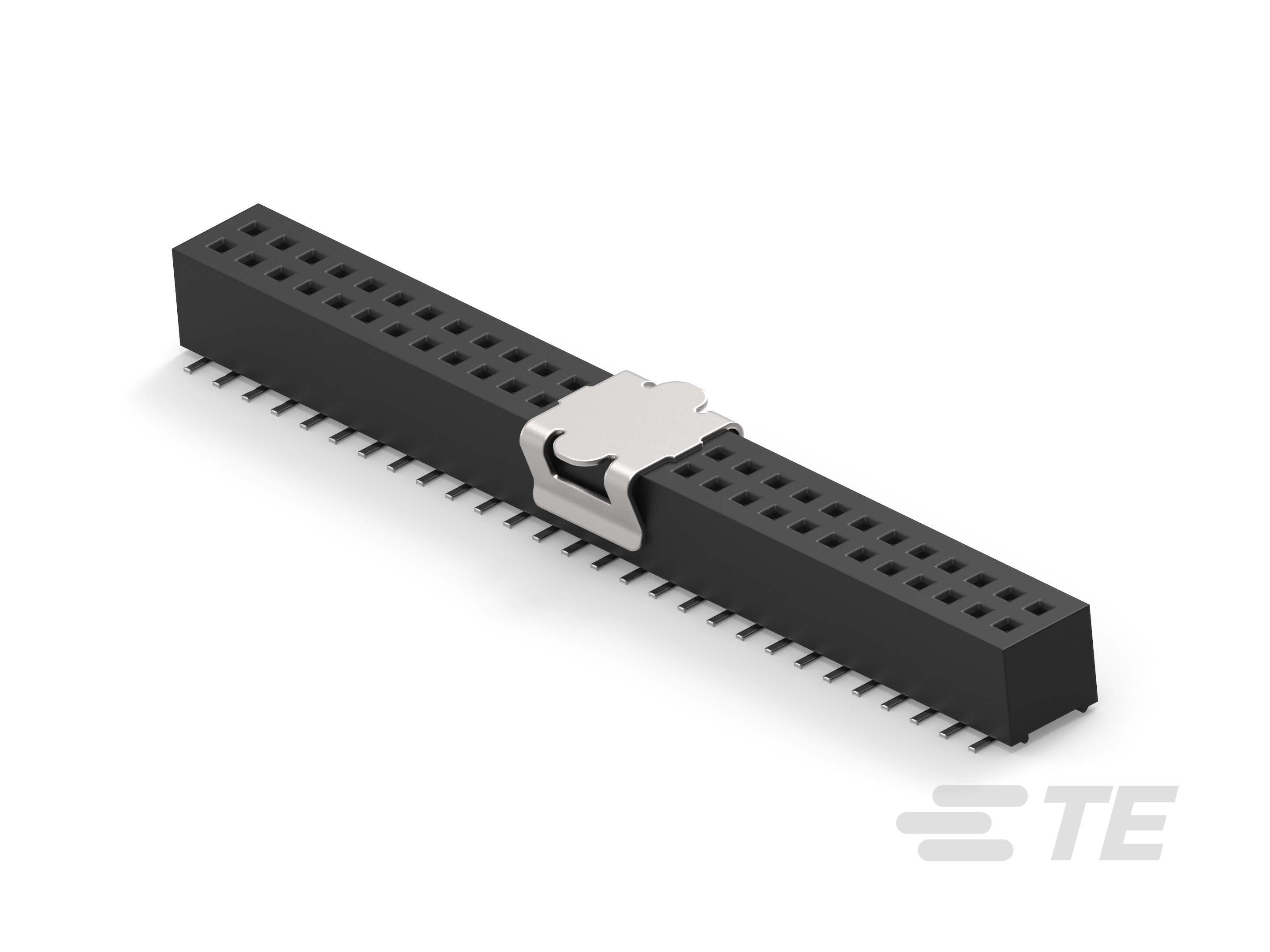

• Applied Pressure : Low

• PCB Connector Assembly Type : PCB Mount Receptacle

• Connector System : Board-to-Board

• Connector & Contact Terminates To : Printed Circuit Board

• Stackable : No

• Board-to-Board Configuration : Parallel

• Number of Signal Positions : 56

• Number of Loaded Positions : 56

• Connector Contact Load Condition : Fully Loaded

• PCB Mount Orientation : Vertical

• Number of Positions : 56

• Number of Rows : 2

• Housing Material : LCP

• Mating Entry Location : Bottom & Top

• Centerline (Pitch) : 1 mm [ .039 in ]

• Contact Mating Area Length (mm): 2

• Contact Protection Type : Closed Entry Housing

• Contact Layout : Inline

• Contact Shape & Form : SMT Lead, Rectangular

• PCB Contact Termination Area Plating Material Thickness : 3.81 µm [ 150 µin ]

• PCB Contact Termination Area Plating Material Finish : Matte

• Contact Mating Area Plating Material Finish : Bright

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Phosphor Bronze

• Mating Square Post Dimension : .3 mm [ .011 in ]

• Contact Mating Area Plating Material Thickness : .00076 µm [ 30 µin ]

• Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Gold

• Contact Type : Socket

• Contact Current Rating (Max) (A): 1

• Rectangular Termination Post & Tail Thickness : .1 mm [ .003 in ]

• Rectangular Termination Post & Tail Width : .24 mm [ .009 in ]

• Termination Method to PCB : Surface Mount

• Assembly Process Feature : Pick and Place Cover

• Circuit Application : Signal

• Assembly Process Feature Material : Stainless Steel

• Primary Product Color : Black

• Mating Retention : Without

• Connector Mounting Type : Board Mount

• Housing Temperature Rating : High

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Dielectric Withstanding Voltage (Max) (VAC): 1000

• Termination Resistance (mΩ): 16

• Operating Voltage (VDC): 30

• Operating Voltage (VAC): 30

• PCB Thickness (Recommended) : 1.02 – 1.27 mm [ .04 – .29 in ]

• Connector Length (mm): 28.6

• Connector Height (mm): 3.12

• Row-to-Row Spacing (mm): 1

• UL Flammability Rating : UL 94V-0

• Packaging Method : Tube
