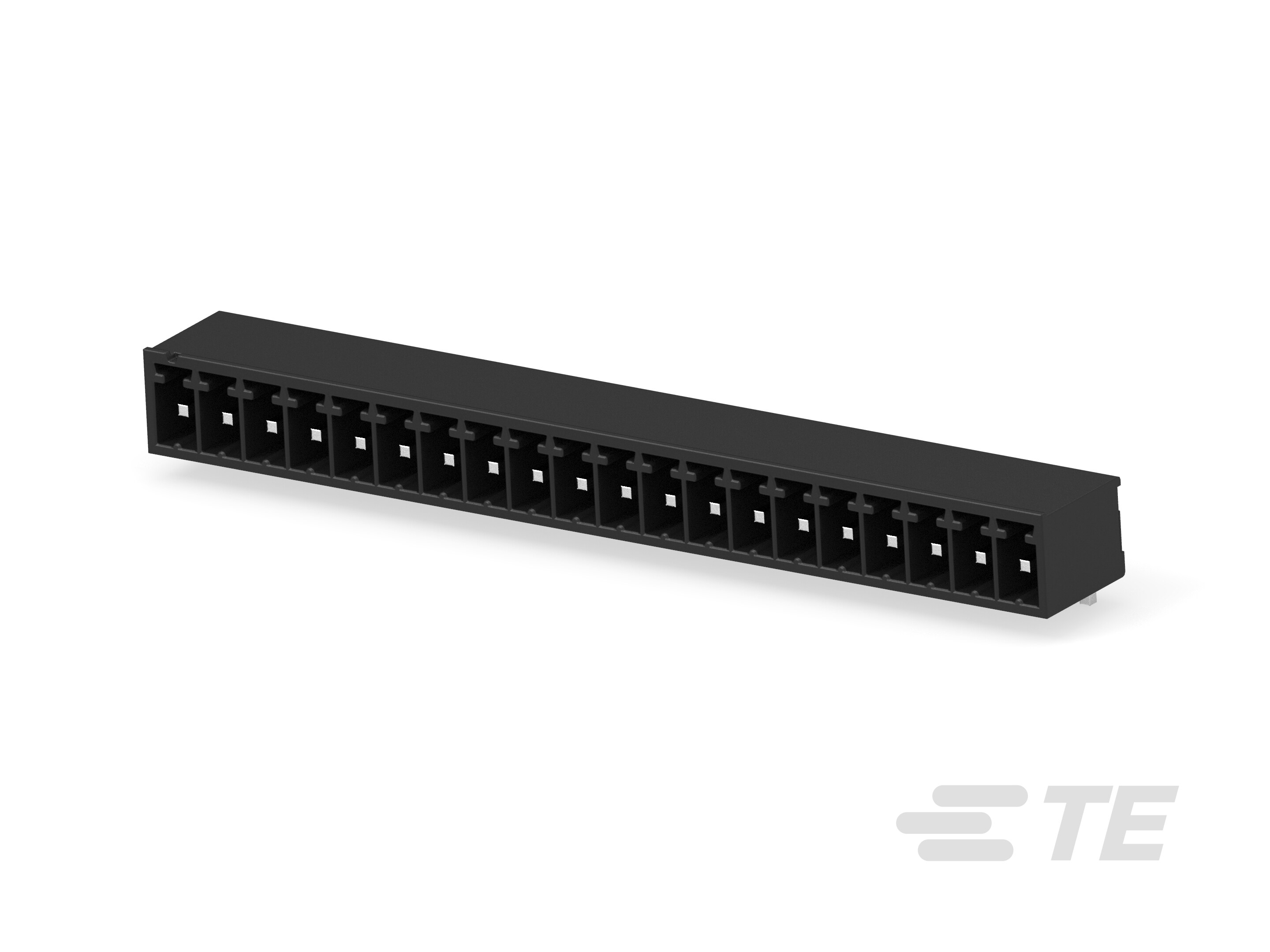

20 Position PCB Terminal Block, Header, Wire-to-Board, 3.5 mm [.138 in] Centerline, 1 Row, Operating Voltage 300 VAC, Printed Circuit Board
2-2342076-0
20 Position PCB Terminal Block, Header, Wire-to-Board, 3.5 mm [.138 in] Centerline, 1 Row, Operating Voltage 300 VAC, Printed Circuit Board
-
- Buchanan
- TE Internal #: 2-2342076-0
- TE Internal Description: 20POS HDR 90 DEG,HT,3.5MM PITCH,TL1.9MM
-
Number of Positions : 20
-
Terminal Block Connector Type : Header
-
Connector System : Wire-to-Board
-
Centerline (Pitch) : 3.5 mm [ .138 in ]
-
Number of Rows : 1
Documents
Product Drawings
- HEADER 90 DEG, HIGH TEMPERATURE, 3.5MM PITCH, TAIL LENGTH 1.9mm ENG_CD_2342076_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2-2342076-0_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2-2342076-0_A.2d_dxf.zip English
- ENG_CVM_CVM_2-2342076-0_A.3d_igs.zip English
- ENG_CVM_CVM_2-2342076-0_A.3d_stp.zip English
Datasheets & Catalog Pages
- BUCHANAN TERMINAL BLOCKS CATALOG - EUROSTYLE TERMINAL BLOCKS ENG_CS_1308389_EUROSTYLE_TERMINAL_BLOCKS_0607.pdf English
Product Specifications
- Product Specification ENG_SS_108-161088_1.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERTB_E60677_19960809_C1_7.pdf English
