Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

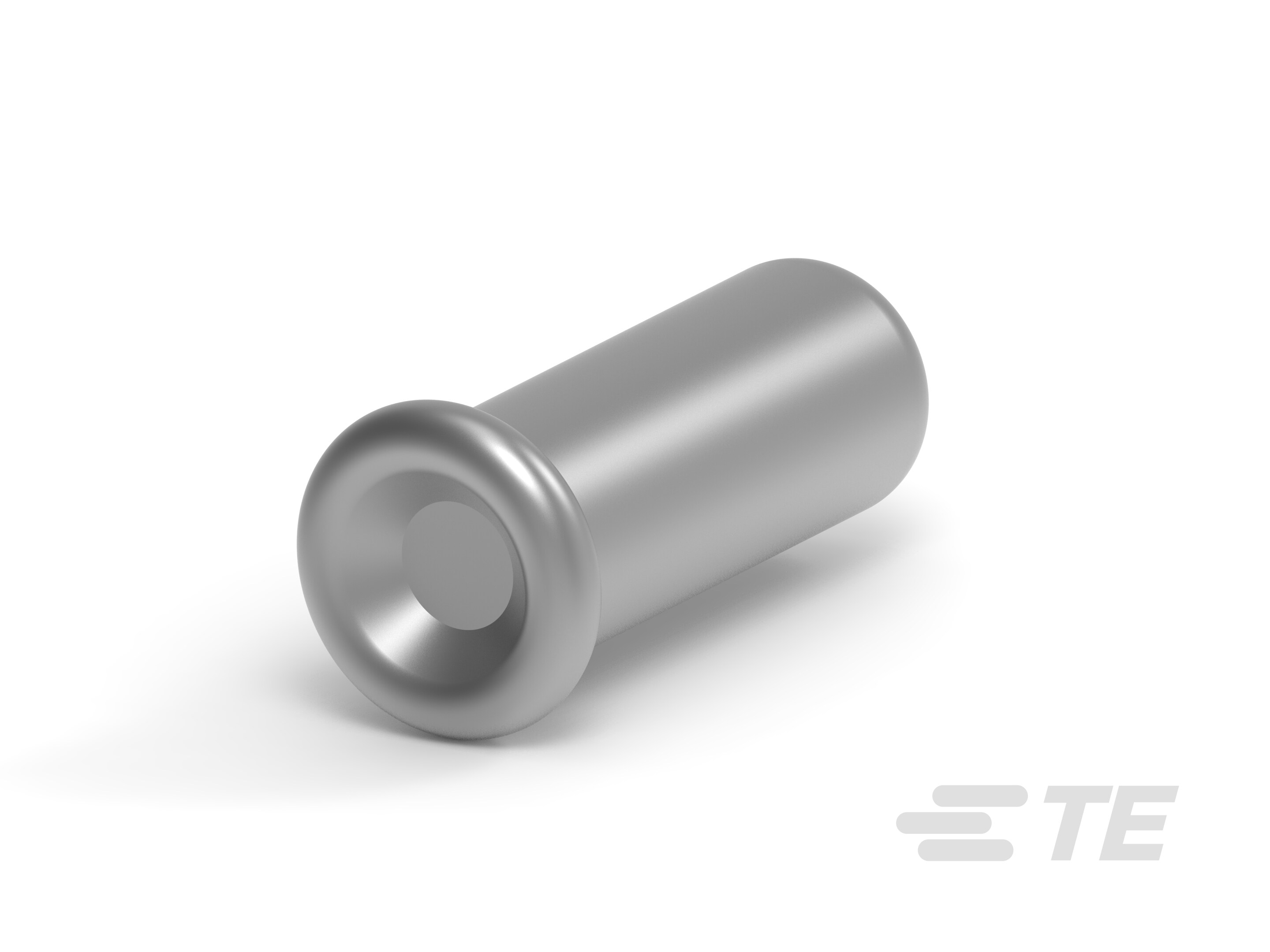

• Connector & Contact Terminates To : Printed Circuit Board

• Socket Sleeve Style : Closed Bottom

• Connector System : Cable-to-Board

• Sealable : No

• Compatible With Wire & Cable Type : Discrete Wire

• Sleeve Material : Copper

• Sleeve Plating Material : Tin

• Contact Spring Plating Thickness : .762 µm [ 30 µin ]

• Contact Mating Area Plating Material Thickness : 30 µm [ 30 µin ]

• Contact Base Material : Beryllium Copper

• Contact Spring Plating Material : Gold

• Contact Current Rating (Max) (A): 4

• Insertion Method : Hand/Semi-Automatic

• Termination Method to Wire & Cable : Solder

• Termination Method to PCB : Through Hole - Press-Fit

• PCB Thickness (Recommended) : .79 – 3.18 mm [ .031 – .125 in ]

• Socket Length : 3.51 mm [ .138 in ]

• PCB Hole Diameter : 1.32 mm [ .052 in ]

• Wire Size (AWG): 25

• Wire Size (mm²): .162

• Mating Pin Diameter Range : .46 – .51 mm [ .018 – .02 in ]

• Operating Temperature Range : -65 – 125 °C [ -85 – 257 °F ]

• Circuit Application : Power & Signal

• Packaging Quantity : 2000

• Packaging Method : Bag, Loose Piece
