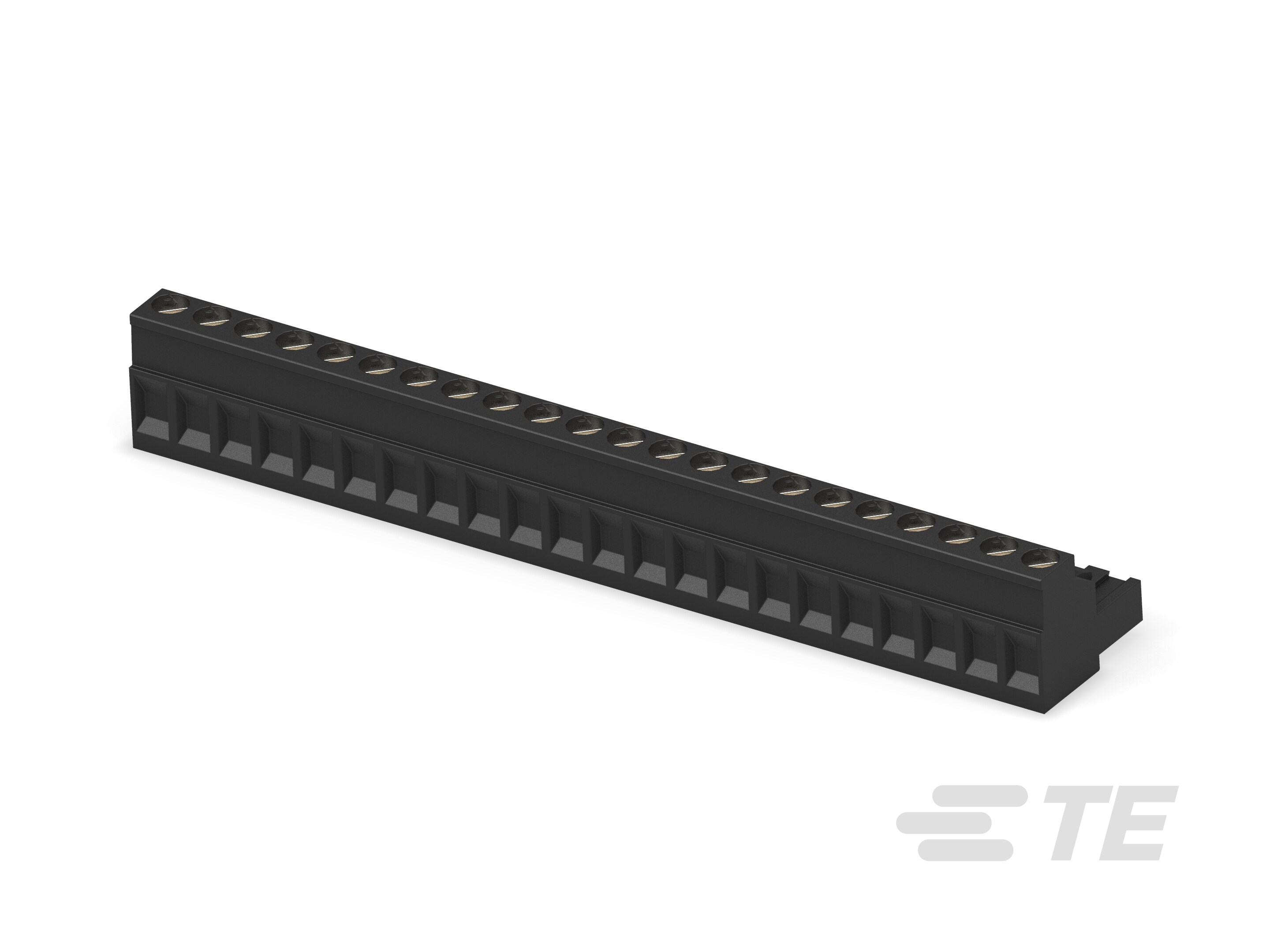

Plug, Wire-to-Board, 22 Position, 5.08 mm [.2 in] Centerline, 1 Row, 180° Wire Entry Angle, 30 – 12 AWG Wire Size, PCB Terminal Blocks
2-796635-2
Plug, Wire-to-Board, 22 Position, 5.08 mm [.2 in] Centerline, 1 Row, 180° Wire Entry Angle, 30 – 12 AWG Wire Size, PCB Terminal Blocks
-
- Buchanan
- TE Internal #: 2-796635-2
- TE Internal Description: 22 POS 5.08MM R/A PLUG,TRM BLK
-
Packaging Method : Box
-
Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]
-
Primary Product Color : Black
-
Connector & Contact Terminates To : Wire & Cable
-
Wire Size (AWG): 30 – 12
