2005071-2

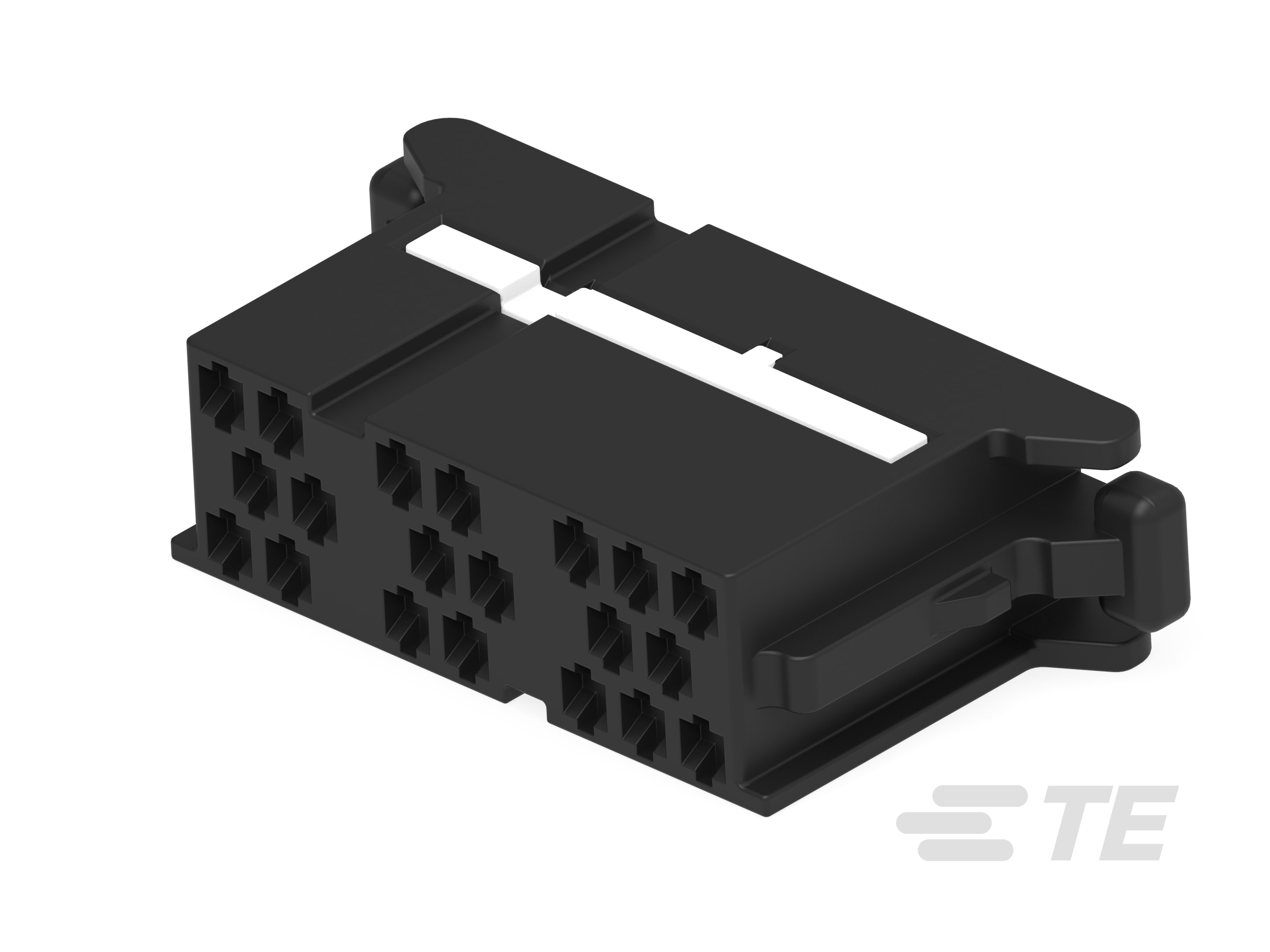

20 Position Housing, Housing for Female Terminals, 1.8 mm [.07 in] Centerline, Black, Wire & Cable, Cable Mount (Free-Hanging)
2005071-2
20 Position Housing, Housing for Female Terminals, 1.8 mm [.07 in] Centerline, Black, Wire & Cable, Cable Mount (Free-Hanging)
- TE Internal #: 2005071-2
- TE Internal Description: MT-III 20P PLUG ASSY
-
Number of Positions : 20
-
Connector & Housing Type : Housing for Female Terminals
-
Mating Tab Width : 1.6 mm [ .06 in ]
-
Centerline (Pitch) : 1.8 mm [ .07 in ]
-
Sealable : No
Documents
Product Drawings
- Dimensional Drawing MT III 20P PLUG ASM ENG_CD_2005071_C.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2005071-2_B.pdf 3D
- Customer View Model ENG_CVM_CVM_2005071-2_B.2d_dxf.zip English
- ENG_CVM_CVM_2005071-2_B.3d_igs.zip English
- ENG_CVM_CVM_2005071-2_B.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-18081_M.pdf English
