Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

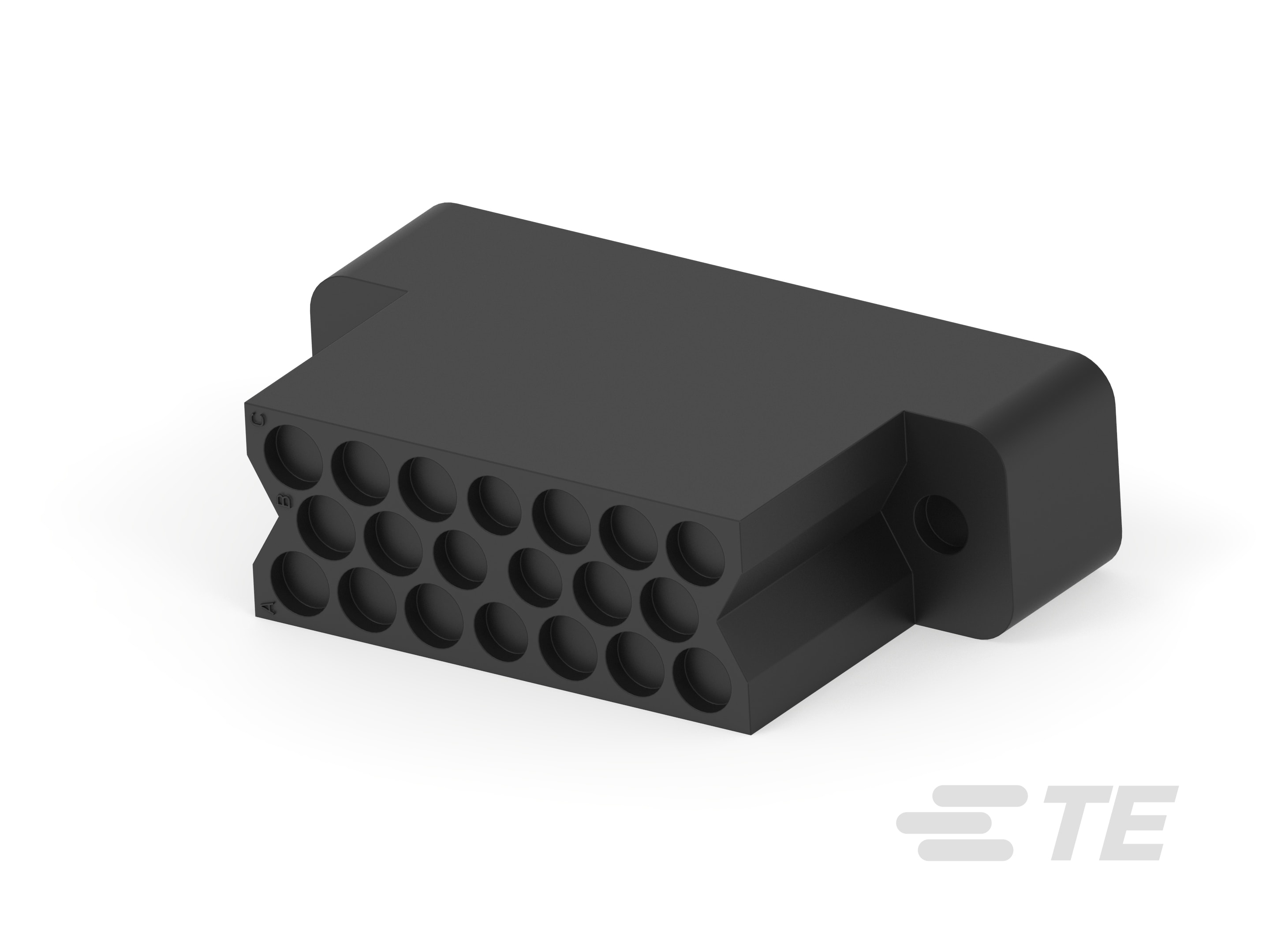

• Connector Product Type : Housing

• Connector & Housing Type : Plug

• Connector System : Cable-to-Cable, Cable-to-Panel

• Sealable : No

• Connector & Contact Terminates To : Wire & Cable

• Number of Power Positions : 14

• Number of Signal Positions : 14

• Number of Positions : 20

• Number of Rows : 4

• Operating Voltage (VDC): 250

• Operating Voltage (VAC): 250

• Primary Product Color : Black

• Contact Type : Pin

• Contact Retention Within Housing : With

• Contact Current Rating (Max) (A): 13

• Termination Method to Wire & Cable : Crimp

• Panel Mount Feature Type : Screw Mount

• Panel Mount Feature : With

• Connector Mounting Type : Panel Mount

• Housing Material : Phenolic

• Centerline (Pitch) : 3.81 mm [ .15 in ]

• Connector Length : 23.24 mm [ .915 in ]

• Wire Size (AWG): 30 – 14

• Wire Size (mm²): .05 – 2

• Connector Height : 39.62 mm [ 1.56 in ]

• Connector Width : 11.18 mm [ .44 in ]

• Row-to-Row Spacing : 3.3 mm [ .13 in ]

• Operating Temperature Range : -55 – 150 °C [ -67 – 302 °F ]

• Circuit Application : Power & Signal

• Glow Wire Rating : Standard Part - Not Glow Wire

• UL Flammability Rating : UL 94V-0
