Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

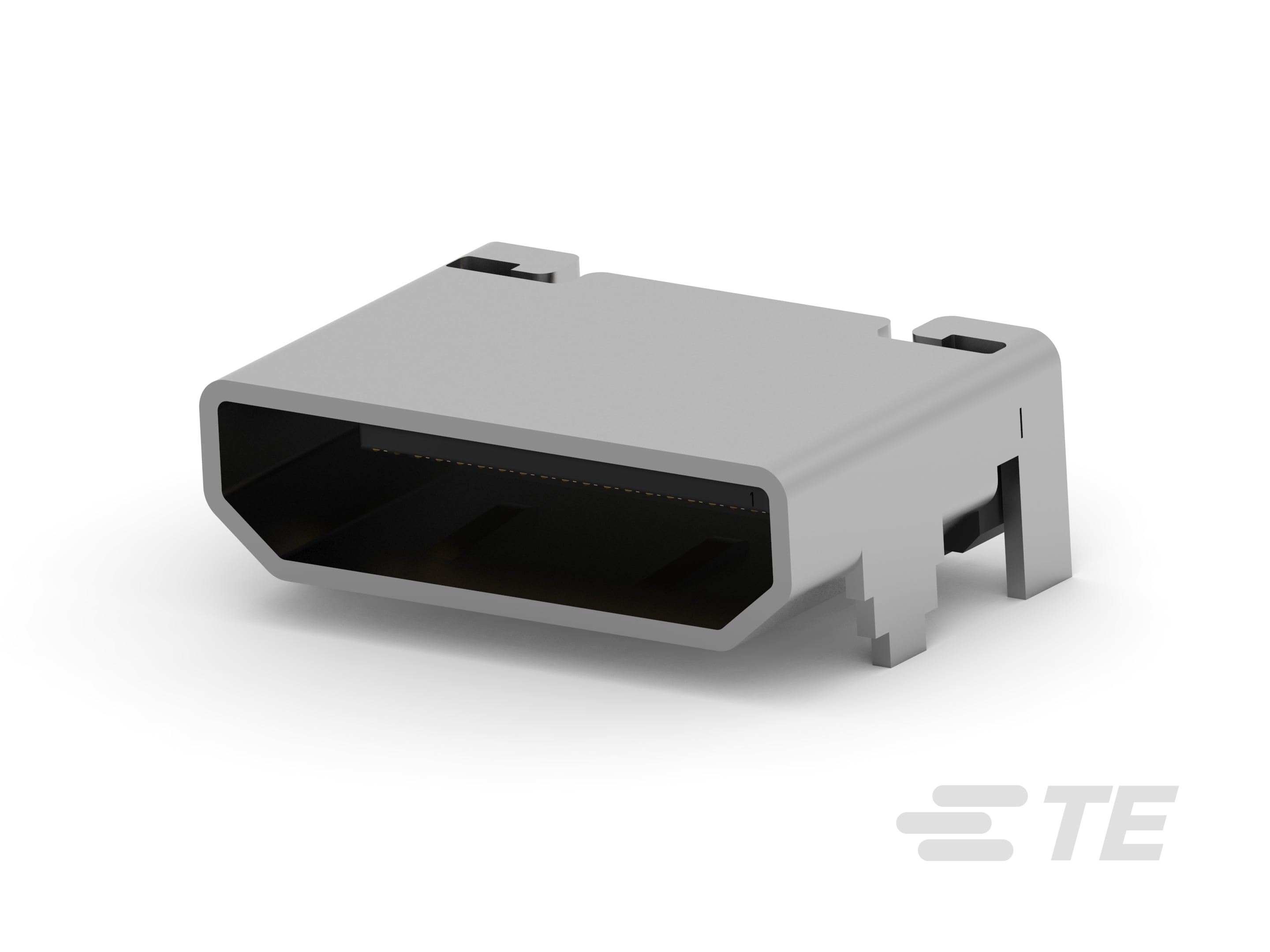

• Shell Plating Finish : Matte

• Shell Plating Material : Tin over Nickel

• Connector Profile : Mini

• Stacked : No

• Number of Ports : 1

• PCB Mount Orientation : Right Angle

• Number of Positions : 19

• PCB Mount Retention Type : Straight Leg

• PCB Mount Location : Top

• Connector Mounting Type : Board Mount

• Termination Post & Tail Length : .6 mm [ .022 in ]

• Termination Method to PCB : Surface Mount

• Mating Cycles (Max) : 5000

• Soldering Temperature (Max) (°C): 250

• Operating Temperature Range : -25 – 70 °C [ -13 – 158 °F ]

• Housing Color : Black

• Centerline (Pitch) : .4 mm [ .015 in ]

• Contact Mating Area Plating Material Thickness : .1 µm [ 3.937 µin ]

• Contact Mating Area Plating Material : Gold

• Contact Current Rating (Max) (A): .5

• Packaging Method : Tape & Reel

• PCB Thickness (Min) : 1.6 mm [ .063 in ]

• Connector & Housing Type : Receptacle

• Connector System : Cable-to-Board

• Connector & Contact Terminates To : Printed Circuit Board

• Assembly Process Feature : Carrier Tape

• Circuit Application : Signal
