Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Compatible With Discrete Wire Type : Stranded

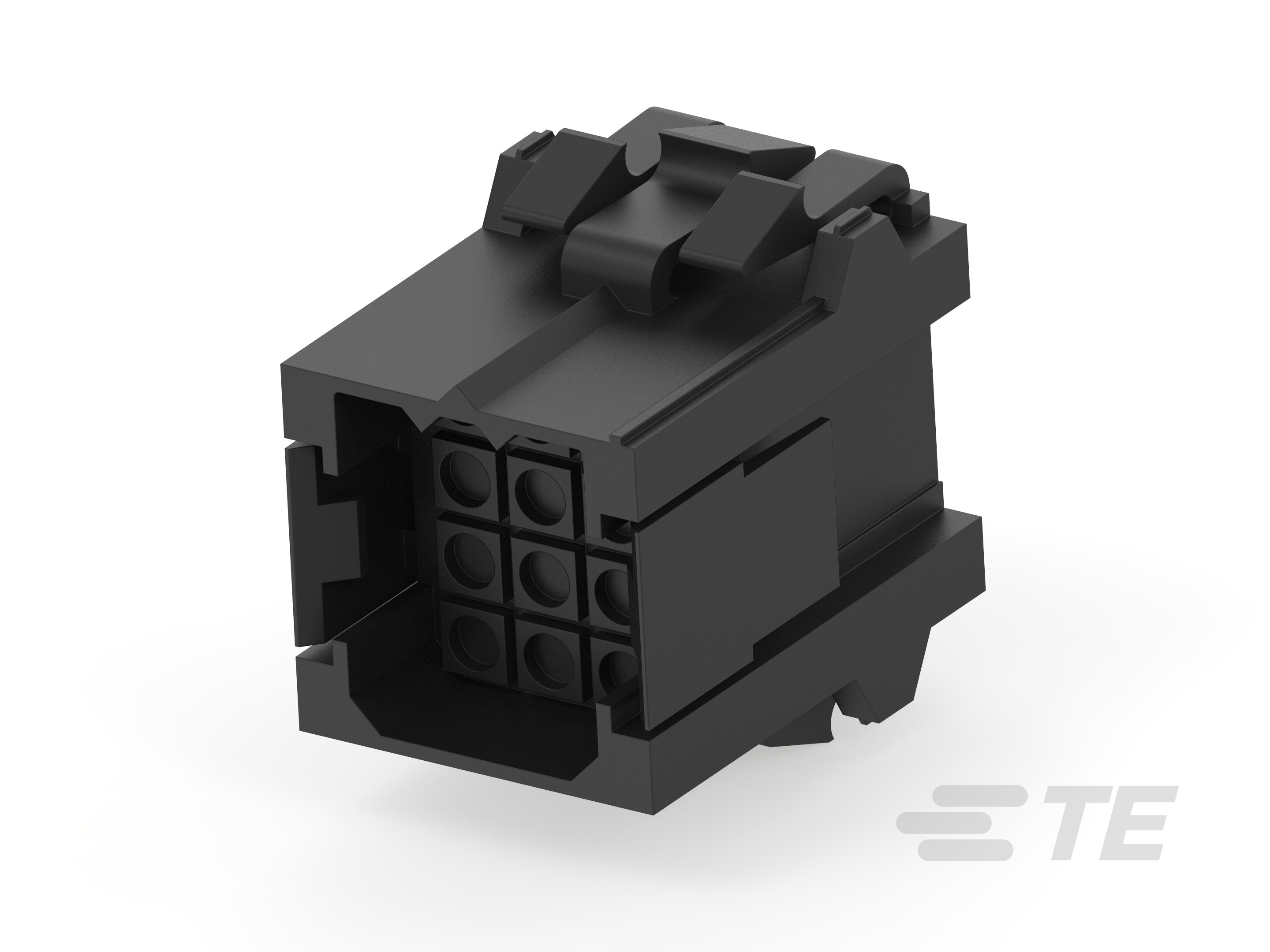

• Connector Product Type : Housing

• Connector & Housing Type : Receptacle

• Connector System : Wire-to-Board, Wire-to-Panel, Wire-to-Wire

• Sealable : No

• Connector & Contact Terminates To : Wire & Cable

• Number of Positions : 12

• Number of Rows : 4

• Operating Voltage (VDC): 600

• Operating Voltage (VAC): 600

• Primary Product Color : Black

• Contact Type : Pin

• Contact Layout : Matrix

• Contact Current Rating (Max) (A): 14

• Panel Mount Feature Type : Latches

• Connector Mounting Type : Panel Mount

• Housing Material : PA 66

• Centerline (Pitch) : 5 mm [ .197 in ]

• Connector Length : 30.23 mm [ 1.19 in ]

• Connector Height : 33.02 mm [ 1.3 in ]

• Row-to-Row Spacing : 5 mm [ .197 in ]

• Connector Width : 23.8 mm [ .937 in ]

• Operating Temperature Range : -55 – 130 °C [ -67 – 266 °F ]

• Circuit Application : Power & Signal

• Compatible With Approved Standards Products : UL E28476

• Compatible With Agency/Standards Products : CSA, UL, VDE

• UL Flammability Rating : UL 94V-0
