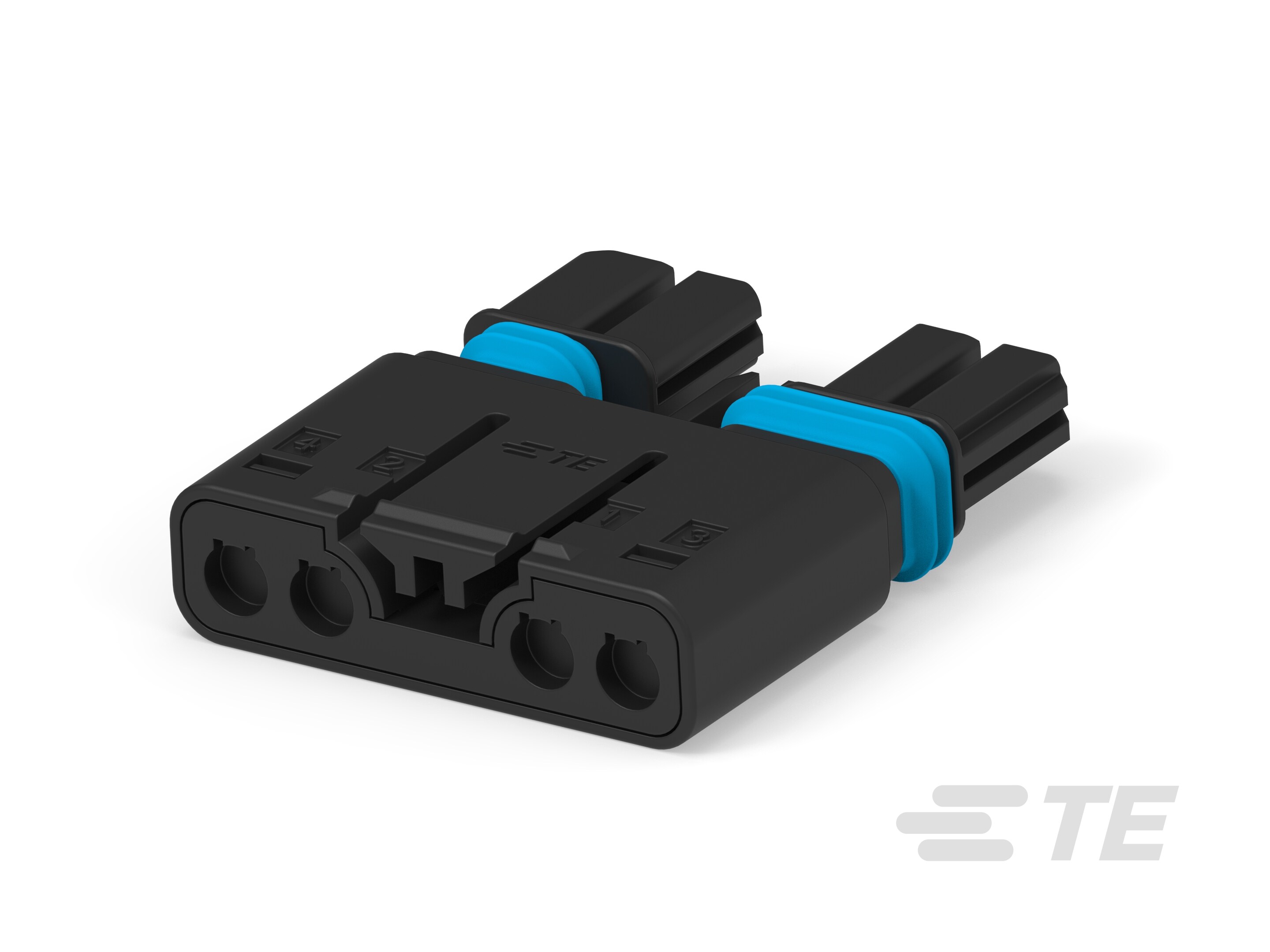

2106135-4
Wire-to-Wire, 4 Position, .14 mm [3.5 in] Centerline, Sealable, Wire & Cable, Plug, SlimSeal Standard Connectors, Plug & Socket Lighting Connectors
2106135-4
Wire-to-Wire, 4 Position, .14 mm [3.5 in] Centerline, Sealable, Wire & Cable, Plug, SlimSeal Standard Connectors, Plug & Socket Lighting Connectors
-
- SlimSeal
- SlimSeal Standard Connectors
- TE Internal #: 2106135-4
- TE Internal Description: Assembly, Free Hanging Plug, SLC, 4 pos
-
Connector System : Wire-to-Wire
-
Number of Positions : 4
-
Centerline (Pitch) : .14 mm [ 3.5 in ]
-
Sealable : Yes
-
Connector & Contact Terminates To : Wire & Cable
Documents
Product Drawings
- ASSEMBLY, PLUG, FREE HANGING SLIMSEAL SSL CONNECTOR ENG_CD_2106135_B2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2106135-4_B1.pdf 3D
- Customer View Model ENG_CVM_CVM_2106135-4_B1.3d_igs.zip English
- ENG_CVM_CVM_2106135-4_B1.3d_stp.zip English
- ENG_CVM_CVM_2106135-4_B1.2d_dxf.zip English
Datasheets & Catalog Pages
- SLIMSEAL_SSL_CONNECOTS ENG_DS_4-1773455-9_SLIMSEAL_SSL_CONNECTORS_0614_4-1773455-9_Slim_Seal_SSL_Connector_062014_R8.pdf English
Product Specifications
- Application Specification ENG_SS_114-13261_J.pdf English
- Product Specification ENG_SS_108-2391_A.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_E28476_20100318_D.pdf English
Product And Material Test Reports
- SlimSeal SSL Connector ENG_PMTR_501-134042_A.pdf English
