2108610-5

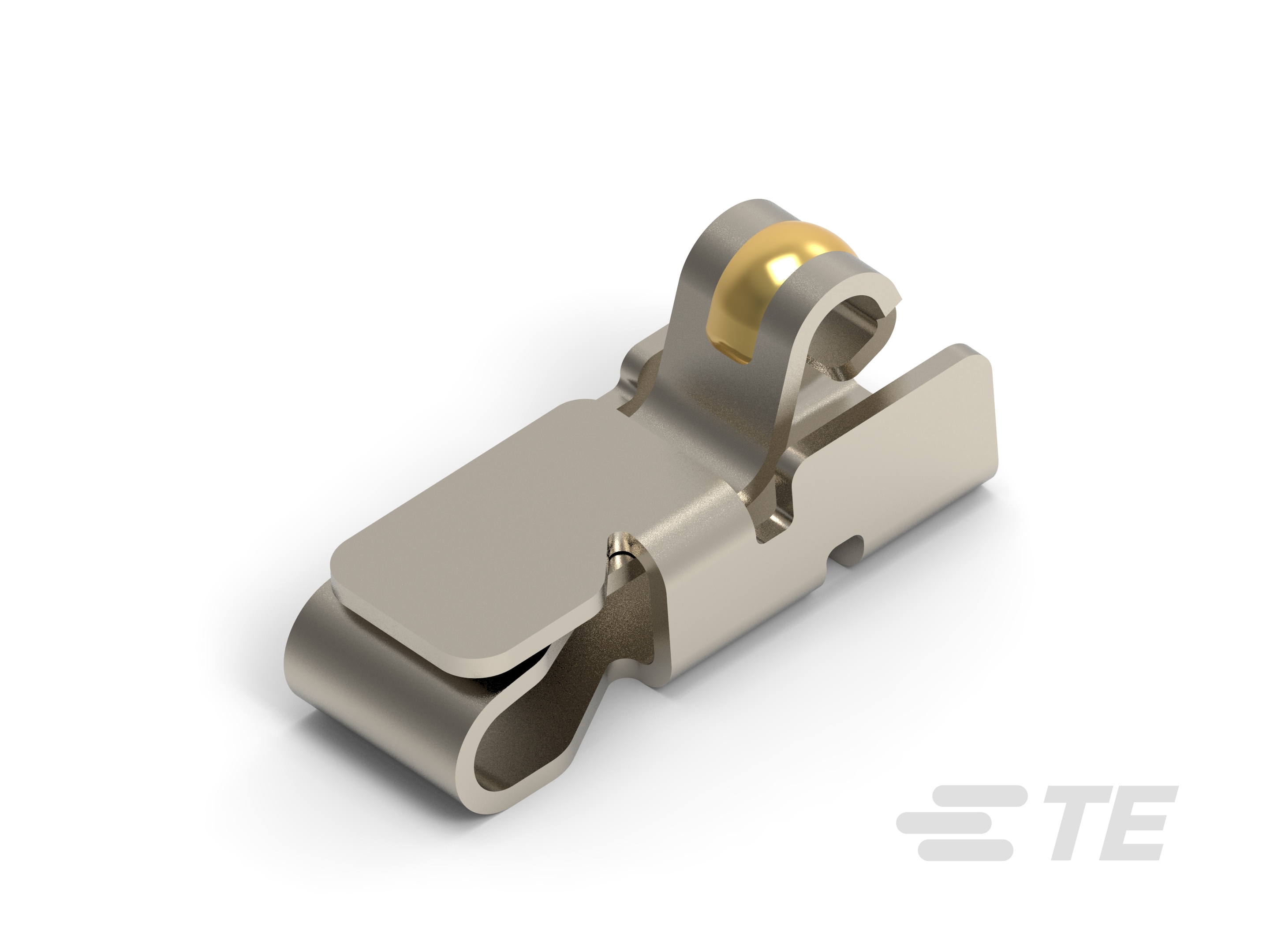

Preloaded - C-Clip PCB Spring Contact, Scalable, Side Protected, 1.4 mm [.055 in] Uncompressed Height, 2.9 mm [.114 in] Length, 1 mm [.039 in] Width
2108610-5
Preloaded - C-Clip PCB Spring Contact, Scalable, Side Protected, 1.4 mm [.055 in] Uncompressed Height, 2.9 mm [.114 in] Length, 1 mm [.039 in] Width
- TE Internal #: 2108610-5
- TE Internal Description: 1.4H SPRING FINGER WITH EMBOSS
-
Spring Finger Type : Preloaded - C-Clip
-
Scalable : Yes
-
Side Protected : Yes
-
Uncompressed Height : 1.4 mm [ .055 in ]
-
Product Length : 2.9 mm [ .114 in ]
Documents
Product Drawings
- 1.4H SPRING FINGER WITH EMBOSS ENG_CD_2108610_C3.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2108610-5_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2108610-5_A.2d_dxf.zip English
- ENG_CVM_CVM_2108610-5_A.3d_igs.zip English
- ENG_CVM_CVM_2108610-5_A.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-61185_A2.pdf English
Product And Material Test Reports
- Spring Finger Scalable Type 1.4H ENG_PMTR_501-61065_A1_Spring_Finger_501-61065_1.4H.pdf English
