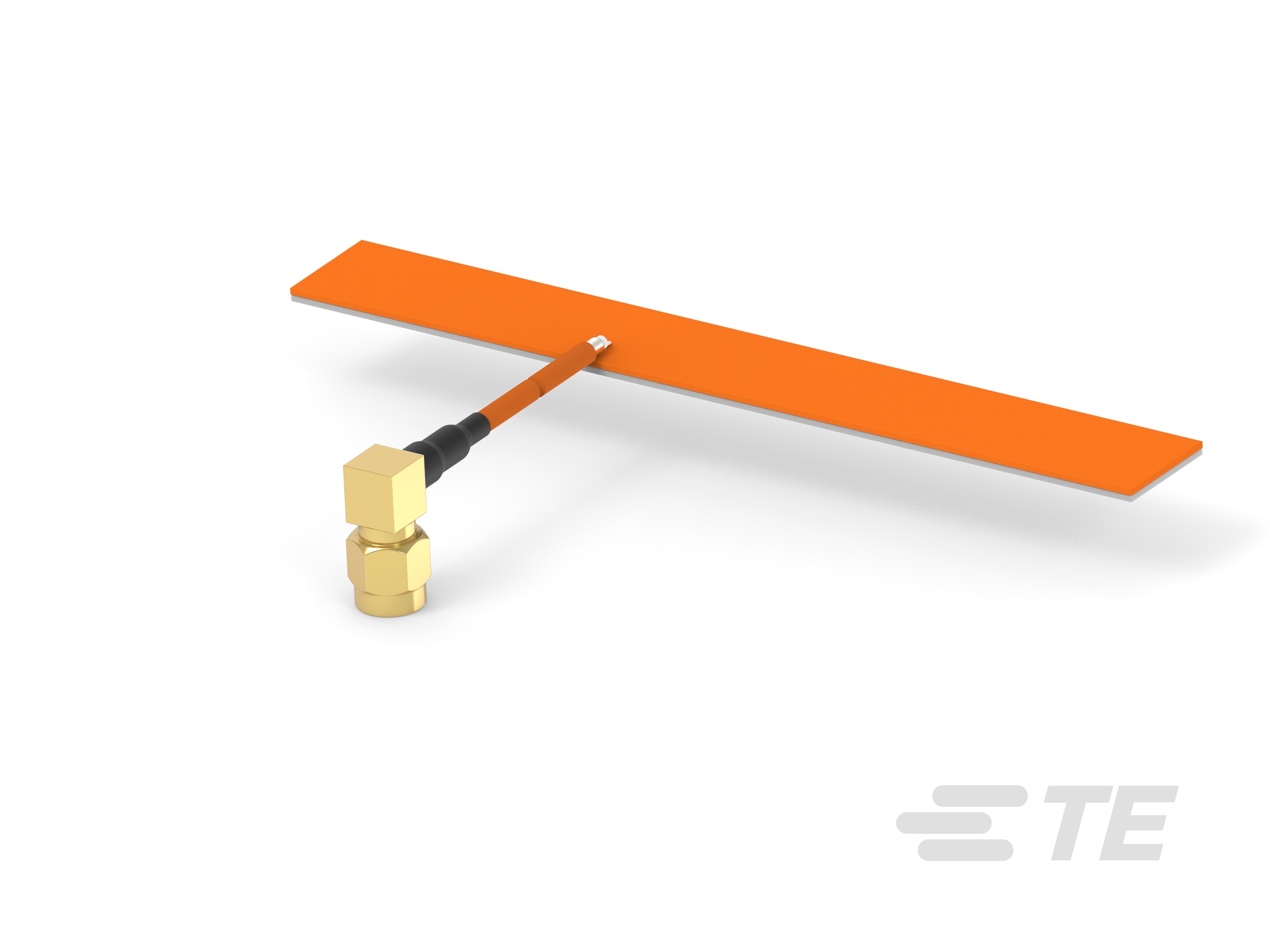

PCB Antenna, Multi Band, Cat-M/NB-IoT / Cellular / ISM, Internal/Embedded Mount, Adhesive Mount, SMA, Omnidirectional, Single Port
2118879-1
PCB Antenna, Multi Band, Cat-M/NB-IoT / Cellular / ISM, Internal/Embedded Mount, Adhesive Mount, SMA, Omnidirectional, Single Port
- TE Internal #: 2118879-1
- TE Internal Description: PCB Ant., SMA RA, 254mm, 0.7-2.7GHz
-
Antenna Type : PCB
-
Band Type : Multi Band
-
Primary Application : Cat-M/NB-IoT, Cellular, ISM
-
Wireless Application : Bluetooth, Cat-M/NB-IoT, Cellular, ISM, LoRaWAN, Wi-Fi
-
Mounting Location : Internal/Embedded
Documents
Product Drawings
- 4G WORLD BAND METASPAN PCB DEPENDENT ENG_CD_2118879_C2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2118879-1_C.pdf 3D
- Customer View Model ENG_CVM_CVM_2118879-1_C.2d_dxf.zip English
- ENG_CVM_CVM_2118879-1_C.3d_igs.zip English
- ENG_CVM_CVM_2118879-1_C.3d_stp.zip English
Datasheets & Catalog Pages
- 4G/3G/2G, NB-IoT, Cat-M, GNSS WORLD BAND ANTENNA ENG_DS_2118879_1_A.pdf English
Product Specifications
- Product Specification ENG_SS_108-61449_A.pdf English
