Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

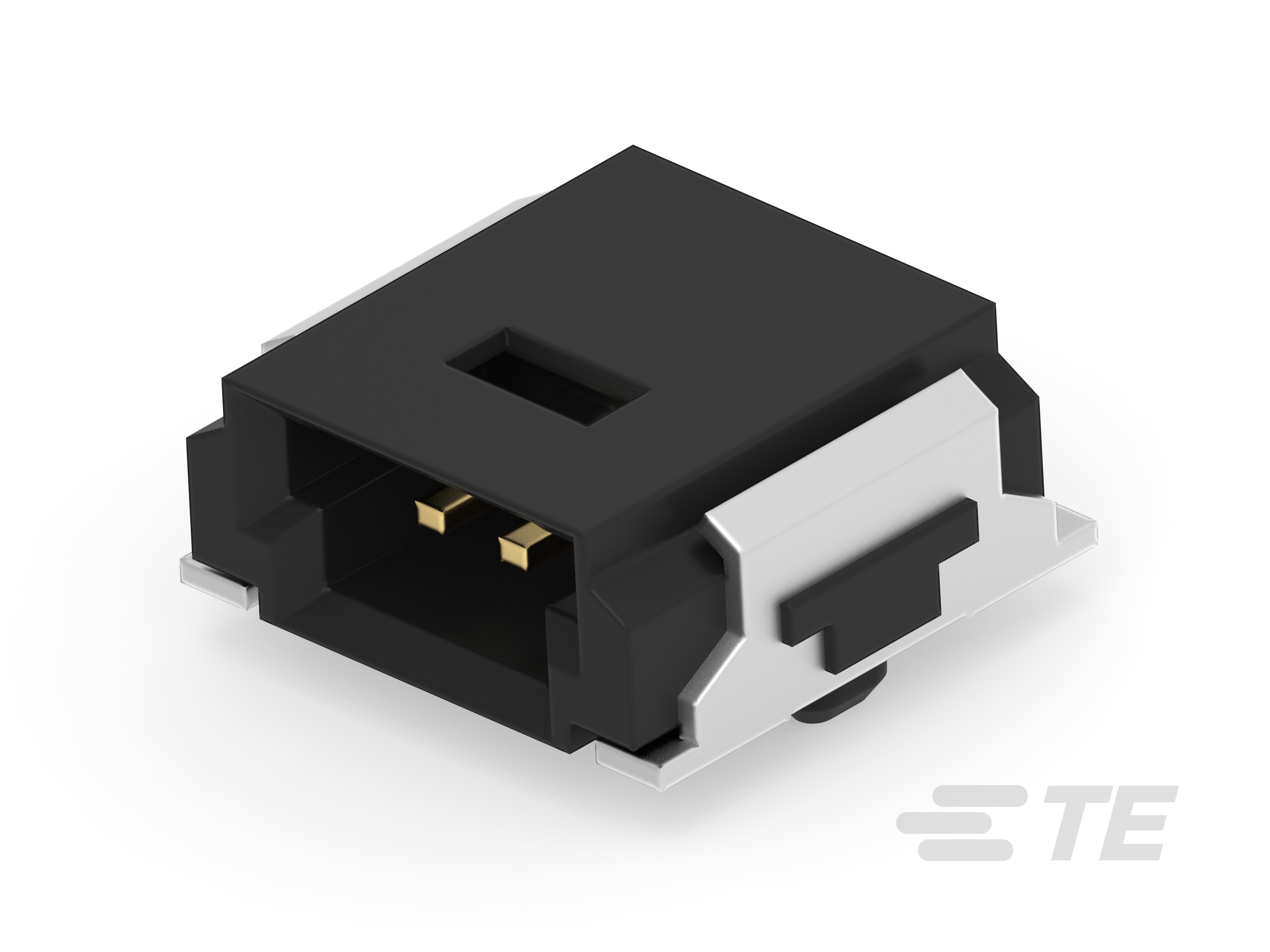

• Connector Shape : Rectangular

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Cable-to-Board

• Header Type : Fully Shrouded

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Contact Load Condition : Fully Loaded

• Number of Loaded Positions : 2

• Number of Columns : 2

• PCB Mount Orientation : Right Angle

• Number of Positions : 2

• Number of Rows : 1

• Housing Material : LCP

• Mating Entry Location : Side

• Centerline (Pitch) : 1.27 mm [ .05 in ]

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Mating Area Length : 2.5 mm [ .098 in ]

• Contact Layout : Inline

• PCB Contact Termination Area Plating Material Thickness : 4 – 6 µm [ 157.48 – 236.22 µin ]

• Contact Shape & Form : Rectangular

• Contact Mating Area Plating Material : Gold (Au)

• Contact Type : Pin

• Contact Current Rating (Max) (A): 4.8

• PCB Mount Alignment Type : Pegs

• Mating Alignment Type : Polarization

• Mating Retention : With

• Mounting Alignment Feature Length : .75 mm [ .029 in ]

• Mating Retention Type : Friction Lock

• PCB Mount Retention : Without

• PCB Mount Alignment : With

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Assembly Process Feature : Pick and Place Cover

• Circuit Application : Power & Signal

• Operating Temperature (Max) : 150 °C [ 302 °F ]

• Operating Temperature Range : -55 – 150 °C [ -67 – 302 °F ]

• Industry Standard : IEC

• Compatible With Agency/Standards Products : DIN, UL

• UL Flammability Rating : UL 94V-0

• Packaging Quantity : 1000

• Packaging Reel Diameter : 330 mm [ 12.99 in ]

• Packaging Method : Tape & Reel

• Connector Length : 7.62 mm [ .3 in ]

• Profile Height from PCB : 2.98 mm [ .117 in ]

• Connector Height : 2.98 mm [ .117 in ]

• Connector Width : 7.2 mm [ .283 in ]

• Dielectric Withstanding Voltage (Max) (Vrms): 500

• Insulation Resistance (MΩ): 10000

• Primary Product Color : Black

• Termination Method to PCB : Surface Mount
