Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

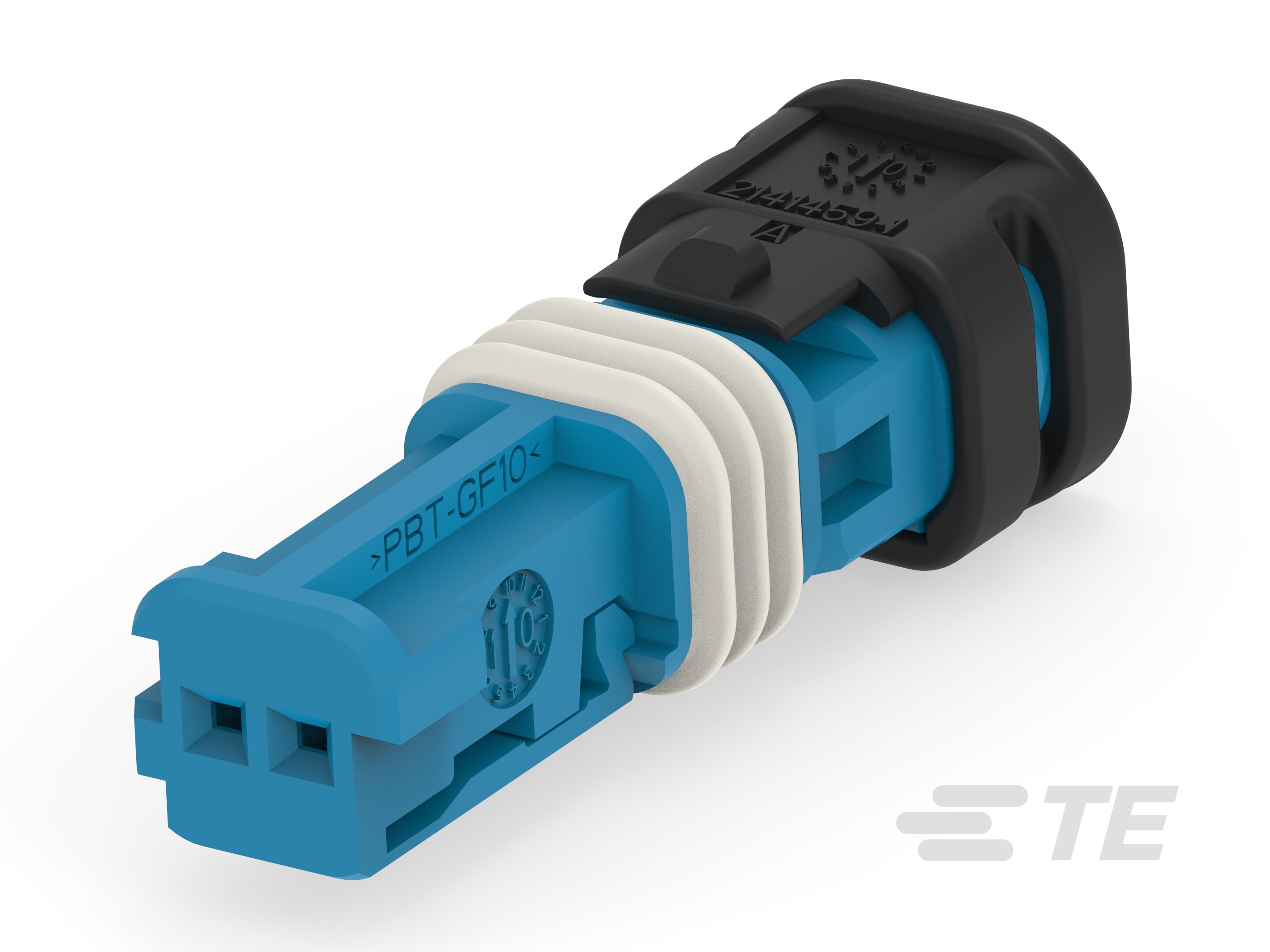

• Connector & Contact Terminates To : Wire & Cable

• Connector Shape : Rectangular

• Connector & Housing Type : Housing for Female Terminals

• Primary Locking Feature : On the Terminal

• Sealable : Yes

• Connector System : Wire-to-Wire, Wire-to-Device, Wire-to-Board

• Mixed & Hybrid Connector : No

• Number of Positions : 2

• Number of Rows : 1

• Nominal Voltage Architecture (V): 12, 14

• Primary Product Color : Blue

• Connector & Keying Code : C

• Cable Exit Angle : 180°

• Mating Tab Width : .5 mm [ .019 in ]

• Contact Current Rating (Max) (A): 3

• Contact Size : .5mm

• Contact Type : Receptacle

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Mating Alignment : With

• Strain Relief : Without

• Housing Material : PBT GF

• Centerline (Pitch) : 1.8 mm [ .07 in ]

• Product Width : 22.05 mm [ .868 in ]

• Connector Height : 8.2 mm [ .323 in ]

• Product Length : 7.6 mm [ .299 in ]

• Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]

• Operating Temperature (Max) : 105 °C [ 221 °F ]

• Circuit Application : Signal

• IP Rating : IPX9K

• UL Flammability Rating : UL 94HB

• Packaging Method : Box

• Packaging Quantity : 1000
