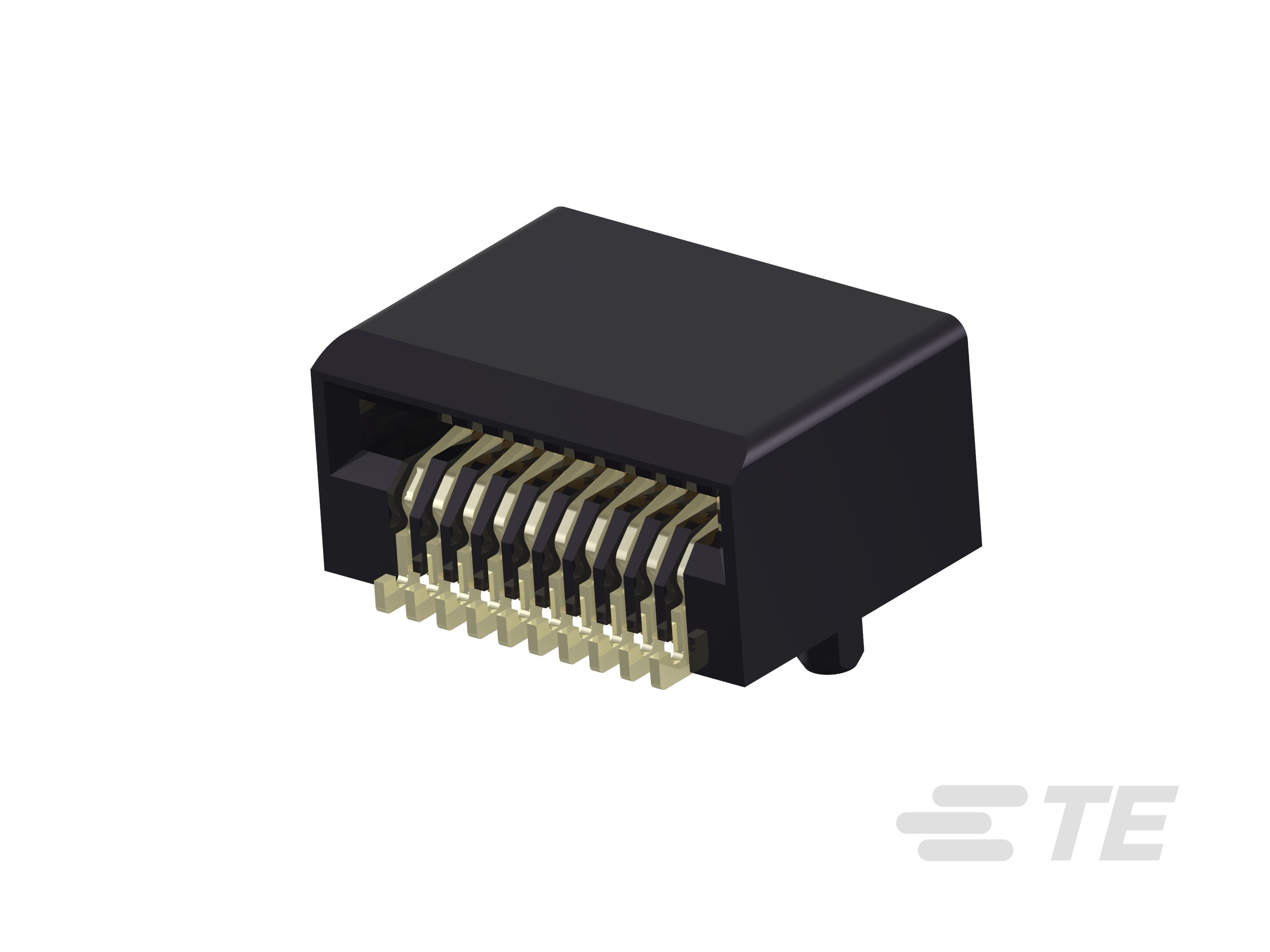

2170088-1
zSFP+, Connector, .8mm [.031in] Centerline, Power & Signal, Operating Temperature Range -55 – 85 °C [-67 – 185 °F], Data Rate (Max) 56 Gb/s
2170088-1
zSFP+, Connector, .8mm [.031in] Centerline, Power & Signal, Operating Temperature Range -55 – 85 °C [-67 – 185 °F], Data Rate (Max) 56 Gb/s
- TE Internal #: 2170088-1
- TE Internal Description: ZSFP+ Connector,30u"
-
Form Factor : zSFP+
-
Pluggable I/O Product Type : Connector
-
Centerline (Pitch) : .8 mm [ .031 in ]
-
Sealable : No
-
Circuit Application : Power & Signal
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2170088-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2170088-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2170088-1_A.3d_igs.zip English
- ENG_CVM_CVM_2170088-1_A.3d_stp.zip English
Datasheets & Catalog Pages
- zSFP+ Interconnect Brochure ENG_DS_1-1773707-6_ZSFP_PLUS_INTERCONNECT_1121.pdf English
Product Specifications
- Application Specification ENG_SS_114-13120_L.pdf English
- Product Specification ENG_SS_108-60099_B.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_E28476_20120829_A.pdf English
