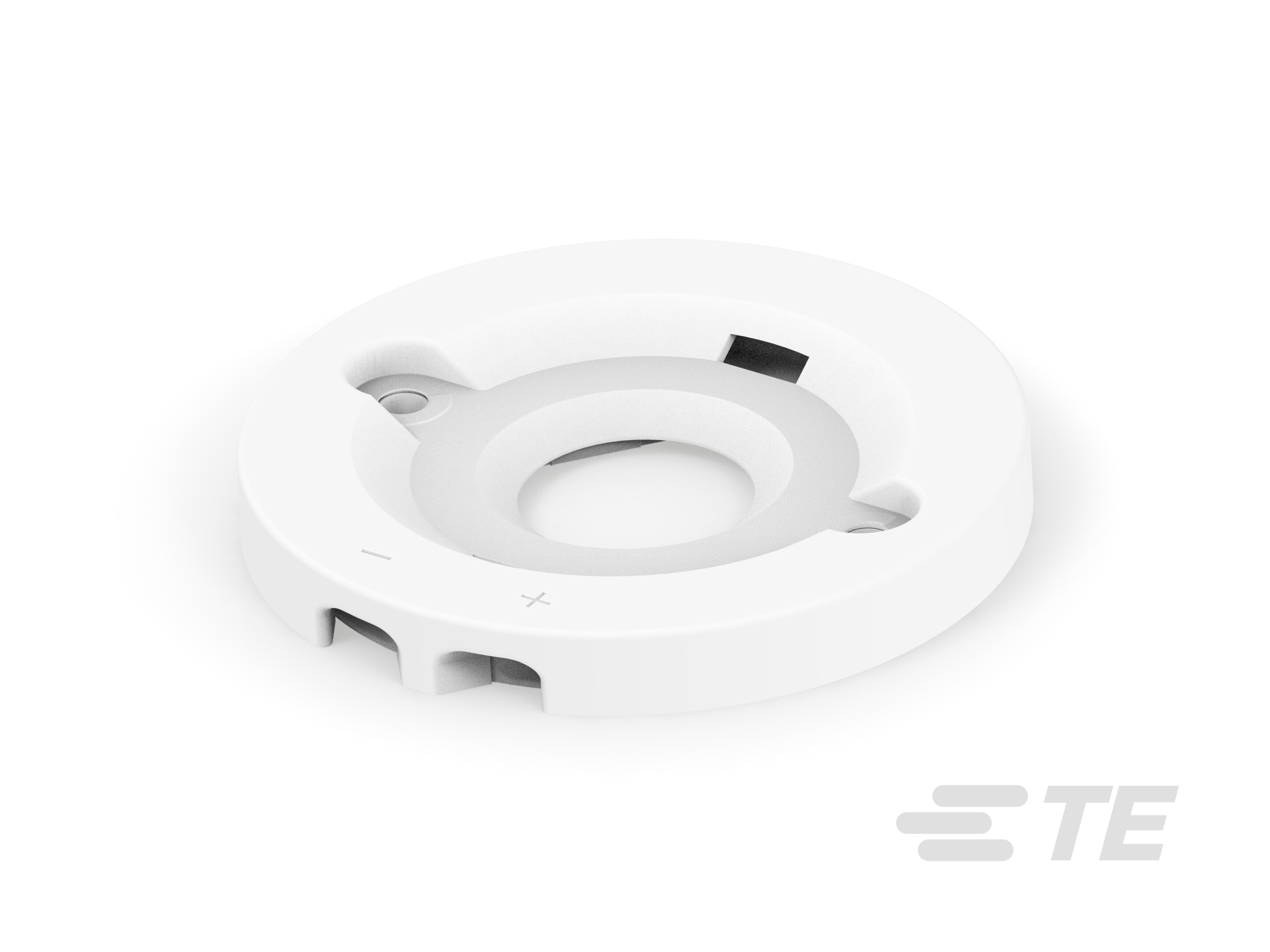

No Thermal Protection / Not Programmable / Optic Compatible, 300 VDC, Poke-In, Wire-to-Board, 2 Position, LUMAWISE LED Holders, LED Holders
2213382-2
No Thermal Protection / Not Programmable / Optic Compatible, 300 VDC, Poke-In, Wire-to-Board, 2 Position, LUMAWISE LED Holders, LED Holders
-
- LUMAWISE
- LUMAWISE LED Holders
- TE Internal #: 2213382-2
- TE Internal Description: LUMAWISE LED HOLDER Z50 STD PROFILE 1619
-
Lighting Connector Features Included : Optic Compatible, No Thermal Protection, Not Dimmable, Not Programmable, No Driver on Board, Enables Zhaga Compatibility
-
Operating Voltage (VDC): 300
-
Termination Method to Wire & Cable : Poke-In
-
Connector System : Wire-to-Board
-
Number of Positions : 2
Documents
Product Drawings
- LUMAWISE LED HOLDER Z50 1619 ENG_CD_2213382_B2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2213382-2_B.pdf 3D
- Customer View Model ENG_CVM_CVM_2213382-2_B.2d_dxf.zip English
- ENG_CVM_CVM_2213382-2_B.3d_igs.zip English
- ENG_CVM_CVM_2213382-2_B.3d_stp.zip English
Datasheets & Catalog Pages
- 1-1773702-2_Z50PHILLIPS_COB ENG_DS_1-1773702-2_Z50PHILLIPS_COB_0314_1-1773702-2_LED_Holder_Type_Z50_Philips_R8_012014.pdf English
- LED Holder Type Z50_NICHIA ENG_DS_1-1773721-2_LEDHOLDERTYPEZ50_NICHIA_0214_1-1773721-2_LED_Holder_Type_Z50_NICHIA_R4_012014.pdf English
Product Specifications
- Application Specification ENG_SS_114-32048_H.pdf English
- ENG_SS_114-32208_T.pdf English
- Product Specification ENG_SS_108-133008_C.pdf English
Agency Approvals
- CB_CERT_IEC_60838-2-2_NL-42967_C1 ENG_AAD_CB_CERT_IEC_60838-2-2_NL-42967_C1_1.pdf English
- KEMA Certificate label ENG_AAD_DEKRA_219257_50_A.pdf English
- UL Report ENG_AAD_UL_E28476_20130116_L.pdf English
