Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

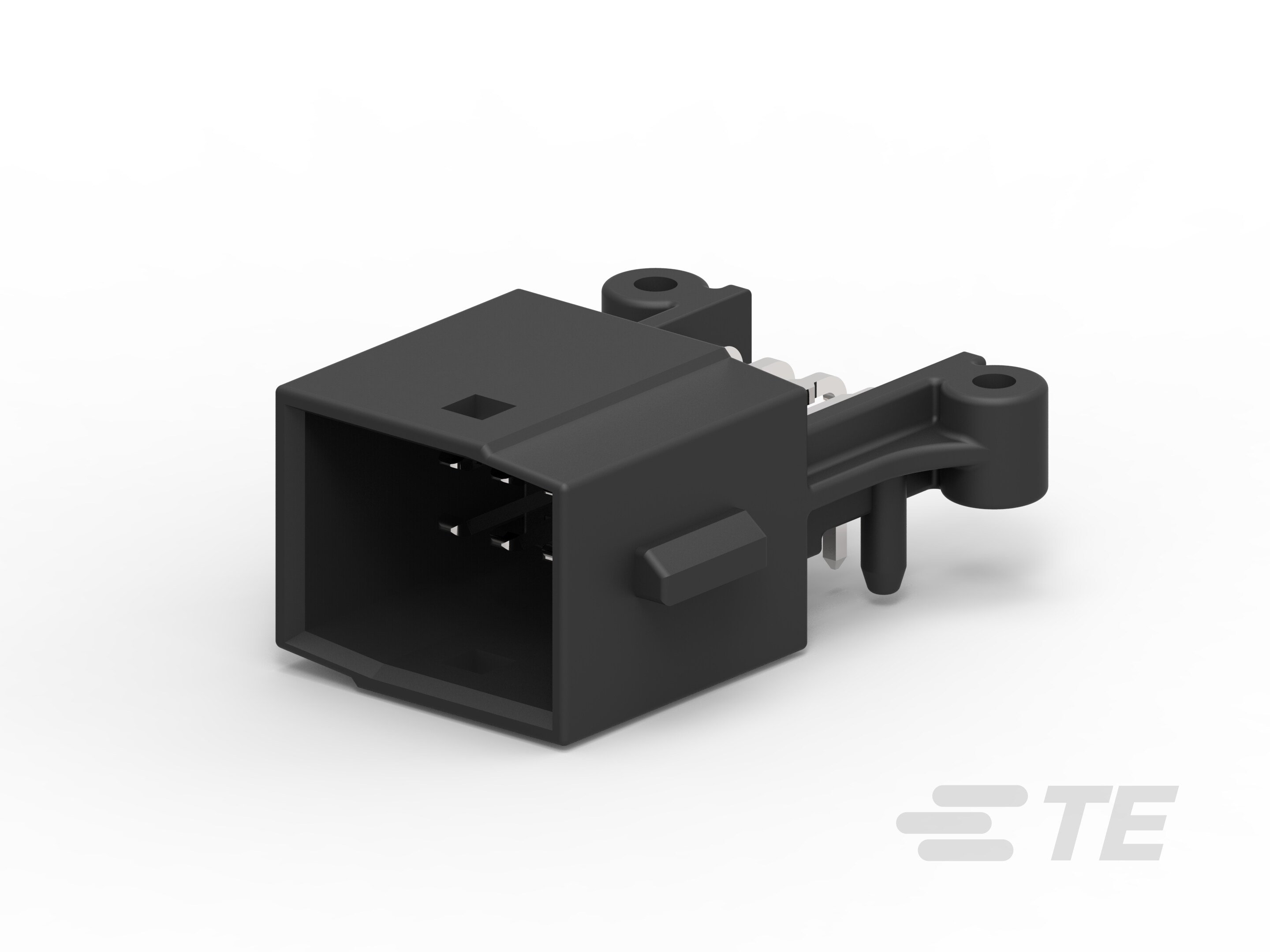

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Sections : 1

• Number of Signal Positions : 8

• PCB Mount Orientation : Horizontal

• Number of Positions : 8

• Number of Rows : 2

• Mating Tab Thickness : .63 mm [ .025 in ]

• Mating Tab Width : 1.2 mm [ .047 in ]

• Contact Size : 1.2mm

• Contact Mating Area Plating Material : Gold

• Contact Type : Tab

• PCB Mount Retention Type : Mounting Hole

• Mounting Holes : With

• Panel Mount Feature : Without

• PCB Mount Retention : With

• PCB Mount Alignment : With

• Mating Alignment : With

• Shielded : No

• Circuit Application : Signal

• Operating Temperature (Max) (°C): 80, 75, 70

• Operating Temperature (Max) (°F): 158, 167, 176

• Operating Temperature Range : -40 – 80 °C [ -40 – 176 °F ]

• Packaging Quantity : 117

• Packaging Method : Tray

• Connector Length : 20.3 mm [ .799 in ]

• Profile Height from PCB : 7.41 mm [ .292 in ]

• PCB Thickness (Recommended) : 1.6 mm [ .063 in ]

• Connector Width : 25.8 mm [ 1.01 in ]

• Voltage Rating (Max) (VDC): 12

• Operating Voltage (VDC): 12

• Primary Product Color : Black

• Termination Method to PCB : Through Hole - Solder

• Centerline (Pitch) : 2.5 mm [ .098 in ]

• UL Flammability Rating : UL 94HB
