- SOLARLOK
- SOLARLOK PV4-PM Connector
- TE Internal #: 2270039-2

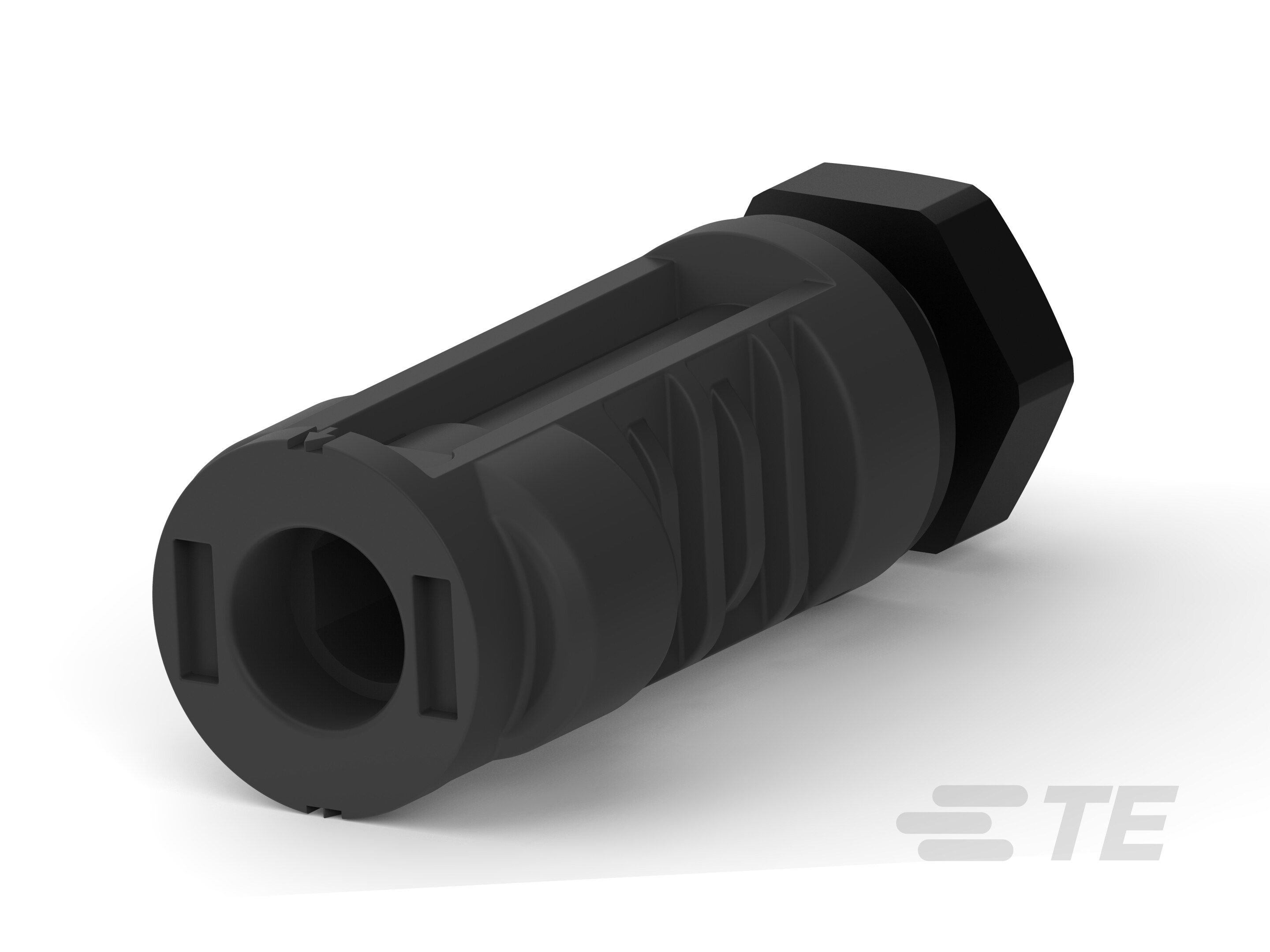

- TE Internal Description: PIN CONNECTOR PREASSEMBLED, PV4-PM
- All SOLARLOK PV4-S DC Crimp Connectors (56)
-
Solar Connector Type : DC/AC Converter Receptacle
-
Solar Connector Style : Plug
-
Keying Type : Minus
-
Wire Size (AWG): 10, 12
-
Wire Size (mm²): 4, 6
Documents
Product Drawings
- PIN CONNECTOR KITS PV4 PANEL MOUNTED CONNECTOR ENG_CD_2270039_B.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2270039-2_B.pdf 3D
- Customer View Model ENG_CVM_CVM_2270039-2_B.2d_dxf.zip English
- ENG_CVM_CVM_2270039-2_B.3d_igs.zip English
- ENG_CVM_CVM_2270039-2_B.3d_stp.zip English
Datasheets & Catalog Pages
- SOLARLOK PV4-PM CONNECTOR 1000V DC ENG_DS_1-1773952-9_1118.pdf English
- SOLARLOK PV4-S DC CRIMP CONNECTORS ENG_DS_EPP-3688_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-106122_B1.pdf English
- Product Specification ENG_SS_108-106122_B_108_106122_A.pdf English
Agency Approvals
- TUV Certificate ENG_AAD_TUV_R50372137_A1.pdf English
- ENG_AAD_TUV_CERT_R60148776_C1_C.pdf English
