2287075-1

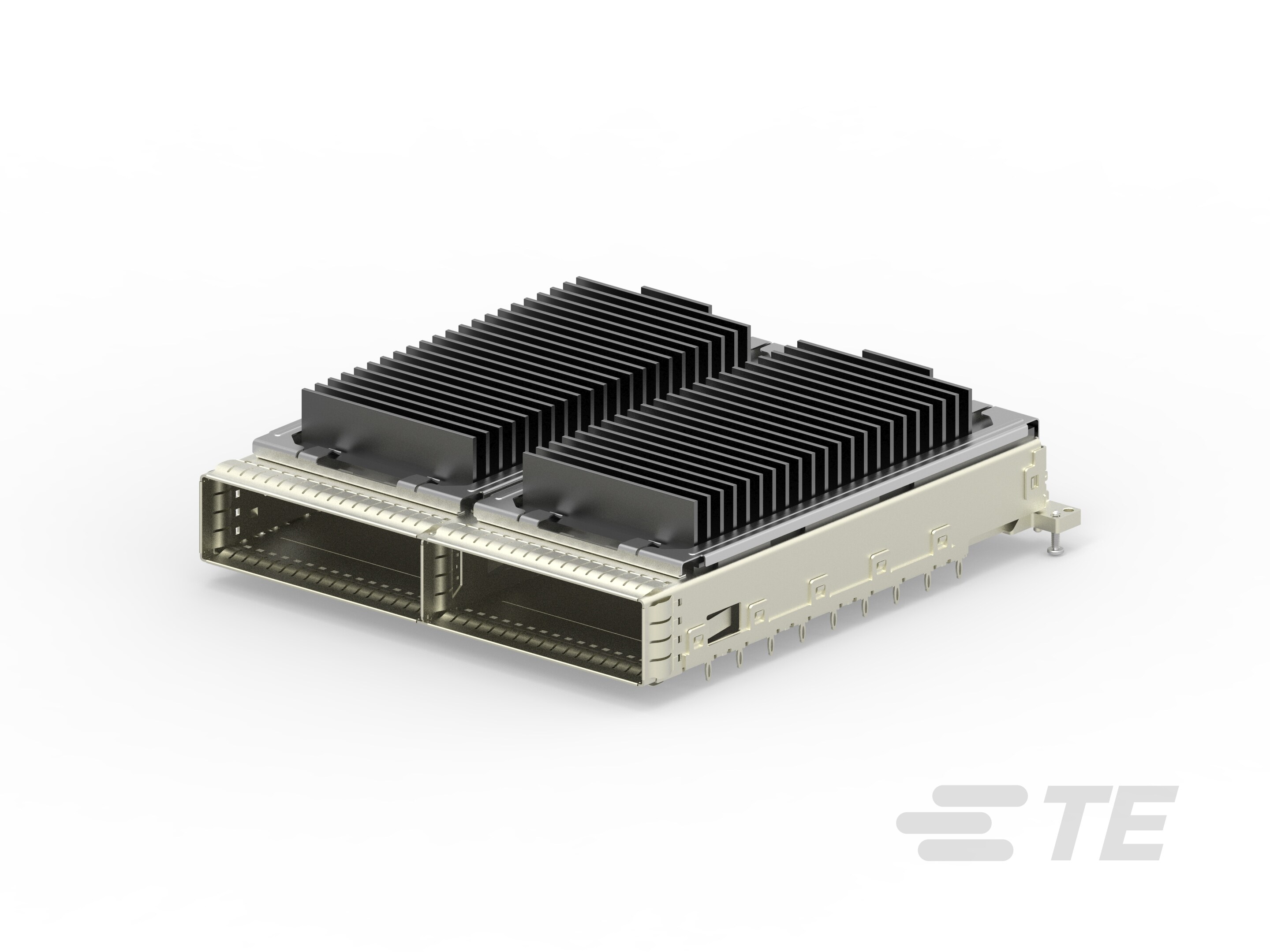

CFP2, Cage Assembly, Signal, Operating Temperature Range -55 – 85 °C [-67 – 185 °F], Data Rate (Max) 56 Gb/s, 2 Ports, Port Matrix Configuration 1 x 2
2287075-1
CFP2, Cage Assembly, Signal, Operating Temperature Range -55 – 85 °C [-67 – 185 °F], Data Rate (Max) 56 Gb/s, 2 Ports, Port Matrix Configuration 1 x 2
- TE Internal #: 2287075-1
- TE Internal Description: CFP2 HARDWARE KIT, 1X2
-
Packaging Method : Box & Tray
-
Operating Temperature Range : -55 – 85 °C [ -67 – 185 °F ]
-
Primary Product Material : Aluminum Alloy
-
Product Width (mm): 87.84
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2287075-1_A3.pdf 3D
- Customer View Model ENG_CVM_CVM_2287075-1_A3.2d_dxf.zip English
- ENG_CVM_CVM_2287075-1_A3.3d_igs.zip English
- ENG_CVM_CVM_2287075-1_A3.3d_stp.zip English
Datasheets & Catalog Pages
- CFP2/CFP4 Connectors & Cages ENG_DS_1-1773867-7_CFP2CFP4_datasheet_102015_0817.pdf English
Product Specifications
- Application Specification ENG_SS_114-32146_B.pdf English
- Product Specification ENG_SS_108-32103_O1.pdf English
- Qualification Test Report ENG_SS_501-130011_A.pdf English
