2306654-3

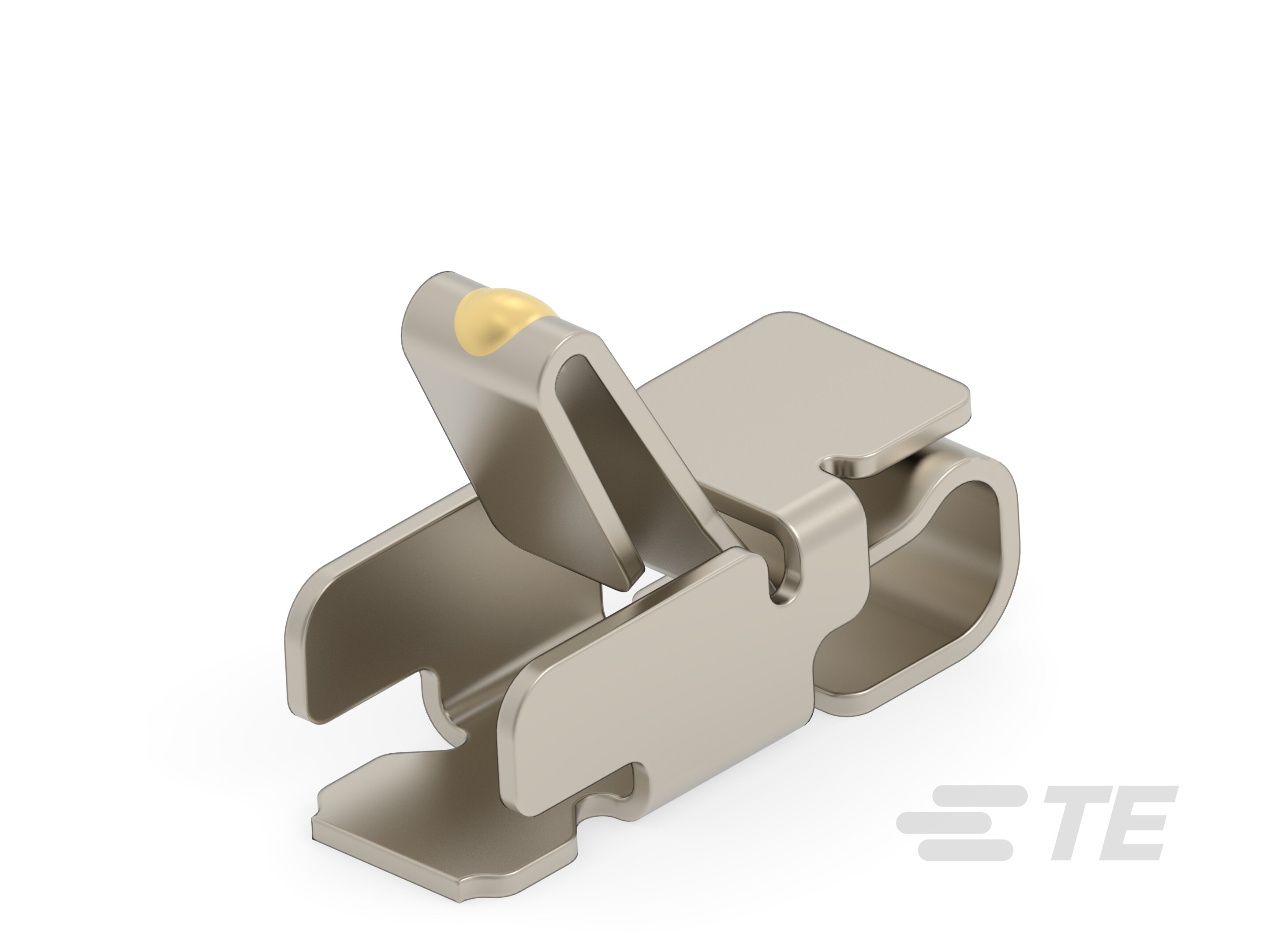

Ultra Small - C-Clip PCB Spring Contact, Side Protected, Uncompressed Height 1.8 mm [.071 in], Length 2.4 mm [.094 in], Width 1 mm [.039 in]
2306654-3
Ultra Small - C-Clip PCB Spring Contact, Side Protected, Uncompressed Height 1.8 mm [.071 in], Length 2.4 mm [.094 in], Width 1 mm [.039 in]
- TE Internal #: 2306654-3
- TE Internal Description: SPRING FINGER 1.8H
-
Packaging Method : Tape & Reel
-
Operating Temperature Range : -40 – 85 °C [ -40 – 85 °F ]
-
Product Width : 1 mm [ .039 in ]
-
Connector & Contact Terminates To : Printed Circuit Board
-
Side Protected : Yes
Documents
Product Drawings
- SPRING FINGER 1.8H ENG_CD_2306654_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2306654-3_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2306654-3_A.2d_dxf.zip English
- ENG_CVM_CVM_2306654-3_A.3d_igs.zip English
- ENG_CVM_CVM_2306654-3_A.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-115120_1.pdf English
- Qualification Test Report ENG_SS_501-115131-3_A.pdf English
