12 Position Housing, Housing for Female Terminals, 3 mm [.118 in] Centerline, Sealable, Black, Wire & Cable, Cable Mount (Free-Hanging), MCON 1.2mm
2307072-2
12 Position Housing, Housing for Female Terminals, 3 mm [.118 in] Centerline, Sealable, Black, Wire & Cable, Cable Mount (Free-Hanging), MCON 1.2mm
-
- MCON
- MCON 1.2mm
- TE Internal #: 2307072-2

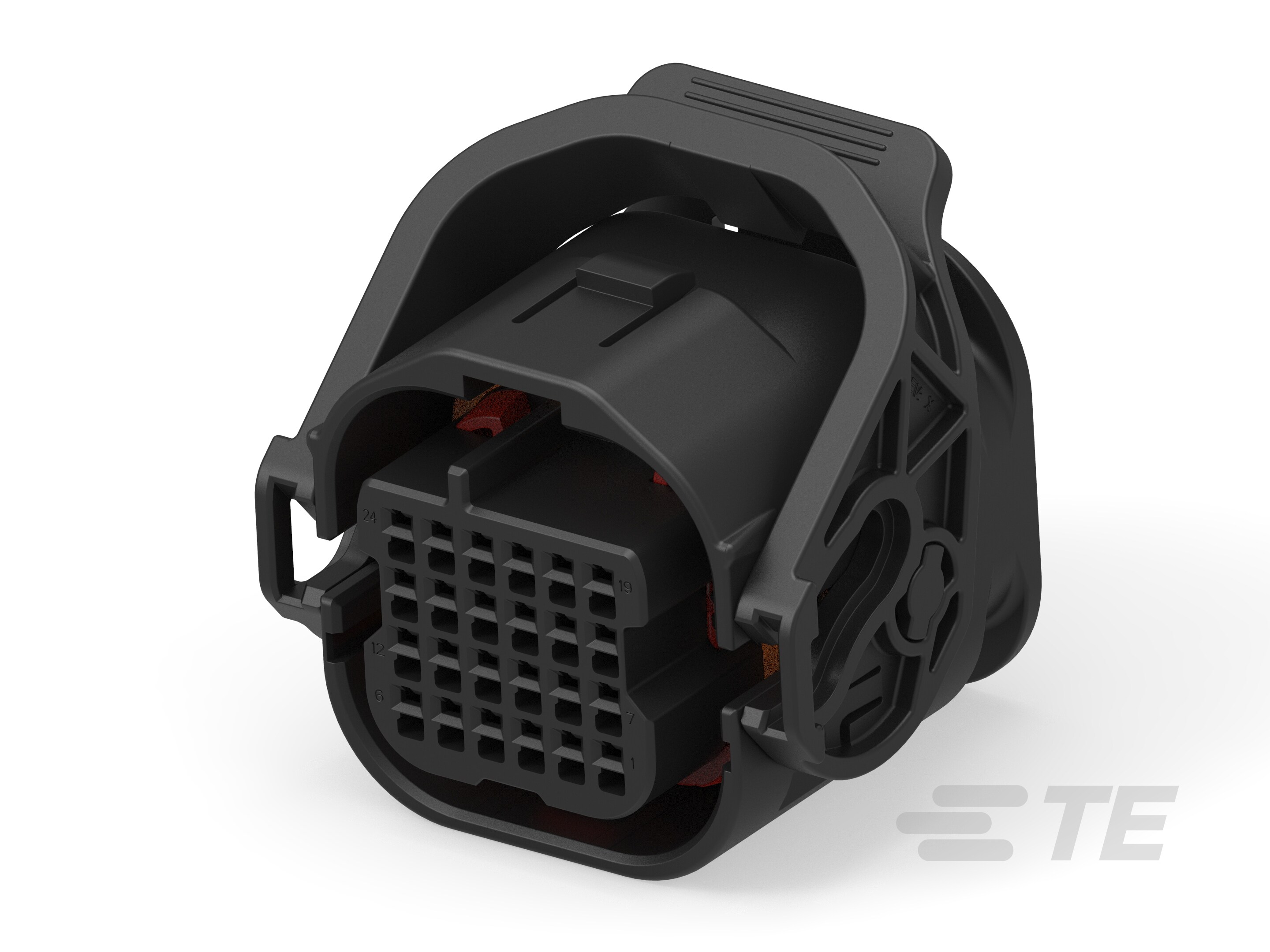

- TE Internal Description: 24POS,MCON 1.2,REC HSG ASSY,SLD,COD 1
-
Number of Positions : 12
-
Connector & Housing Type : Housing for Female Terminals
-
Mating Tab Width : 1.2 mm [ .047 in ]
-
Centerline (Pitch) : 3 mm [ .118 in ]
-
Sealable : Yes
Documents
Product Drawings
- 24W MCON 1.2 PLUG ASSY. ENG_CD_2307072_A6.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2307072-2_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2307072-2_A.2d_dxf.zip English
- ENG_CVM_CVM_2307072-2_A.3d_igs.zip English
- ENG_CVM_CVM_2307072-2_A.3d_stp.zip English
Product Specifications
- 24W MCON 1.2 Through Wall Connector Assy ENG_SS_108-101524_A.pdf English
