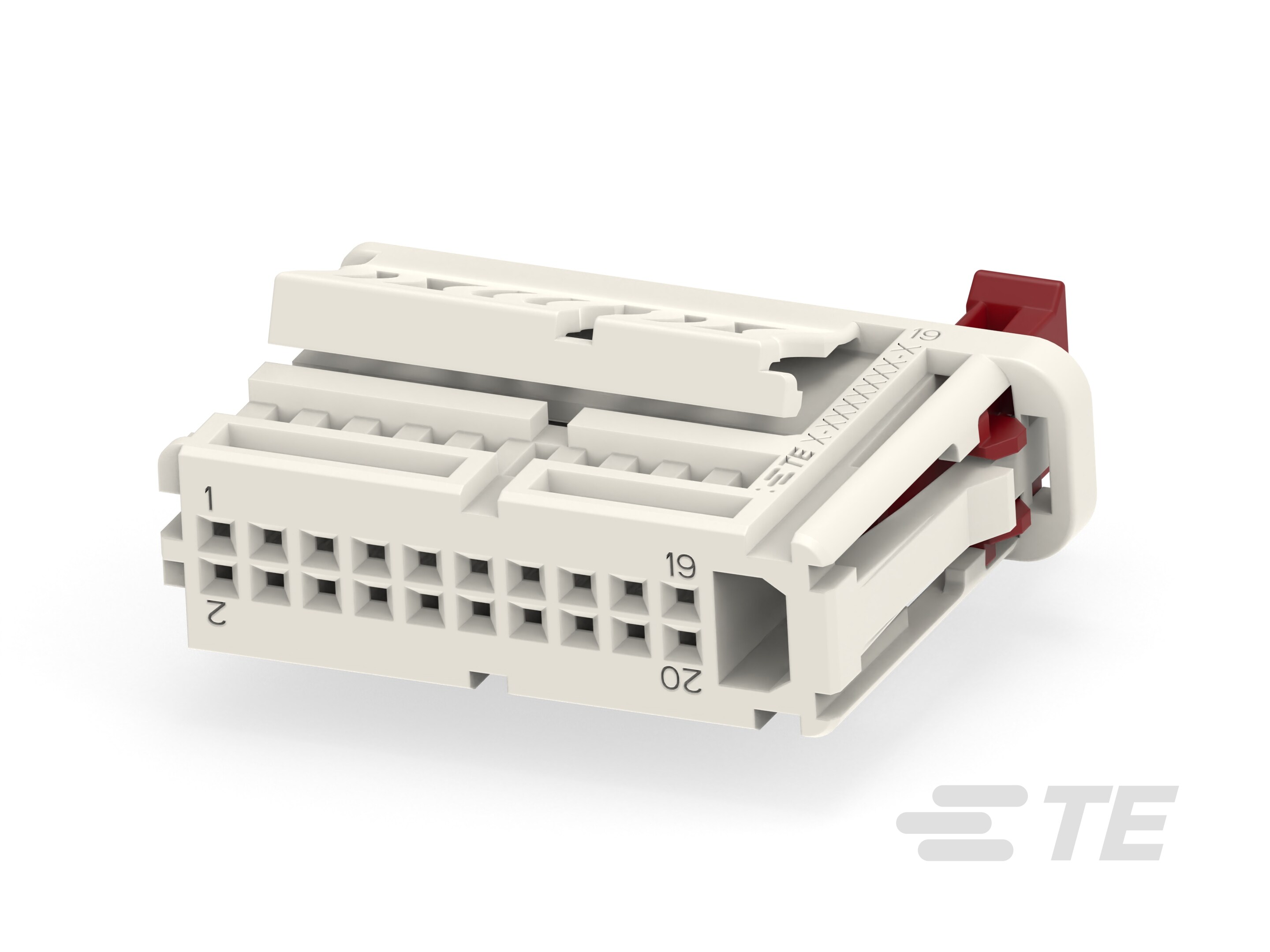

20 Position Housing, Receptacle, Cable-to-Board / Cable-to-Cable, 1.8 mm [9.84 in] Centerline, Natural, Wire & Cable, Signal
2312120-2
20 Position Housing, Receptacle, Cable-to-Board / Cable-to-Cable, 1.8 mm [9.84 in] Centerline, Natural, Wire & Cable, Signal
- TE Internal #: 2312120-2
- TE Internal Description: 20POS,NANOMQS,REC HSG ASSY,COD B
-
Number of Positions : 20
-
Connector & Housing Type : Receptacle
-
Mating Tab Width (mm): .5
-
Connector System : Cable-to-Board, Cable-to-Cable
-
Centerline (Pitch) : 1.8 mm [ 9.84 in ]
Documents
Product Drawings
- 4-20 POS. NanoMQS, Buchseng. mit CPA 4-20 POS. NanoMQS, REC. HSG. WITH CPA ENG_CD_2312420_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2312120-2_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2312120-2_A.2d_dxf.zip English
- ENG_CVM_CVM_2312120-2_A.3d_igs.zip English
- ENG_CVM_CVM_2312120-2_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-94491_B2.pdf English
- Product Specification ENG_SS_108-94288_A2.pdf English
