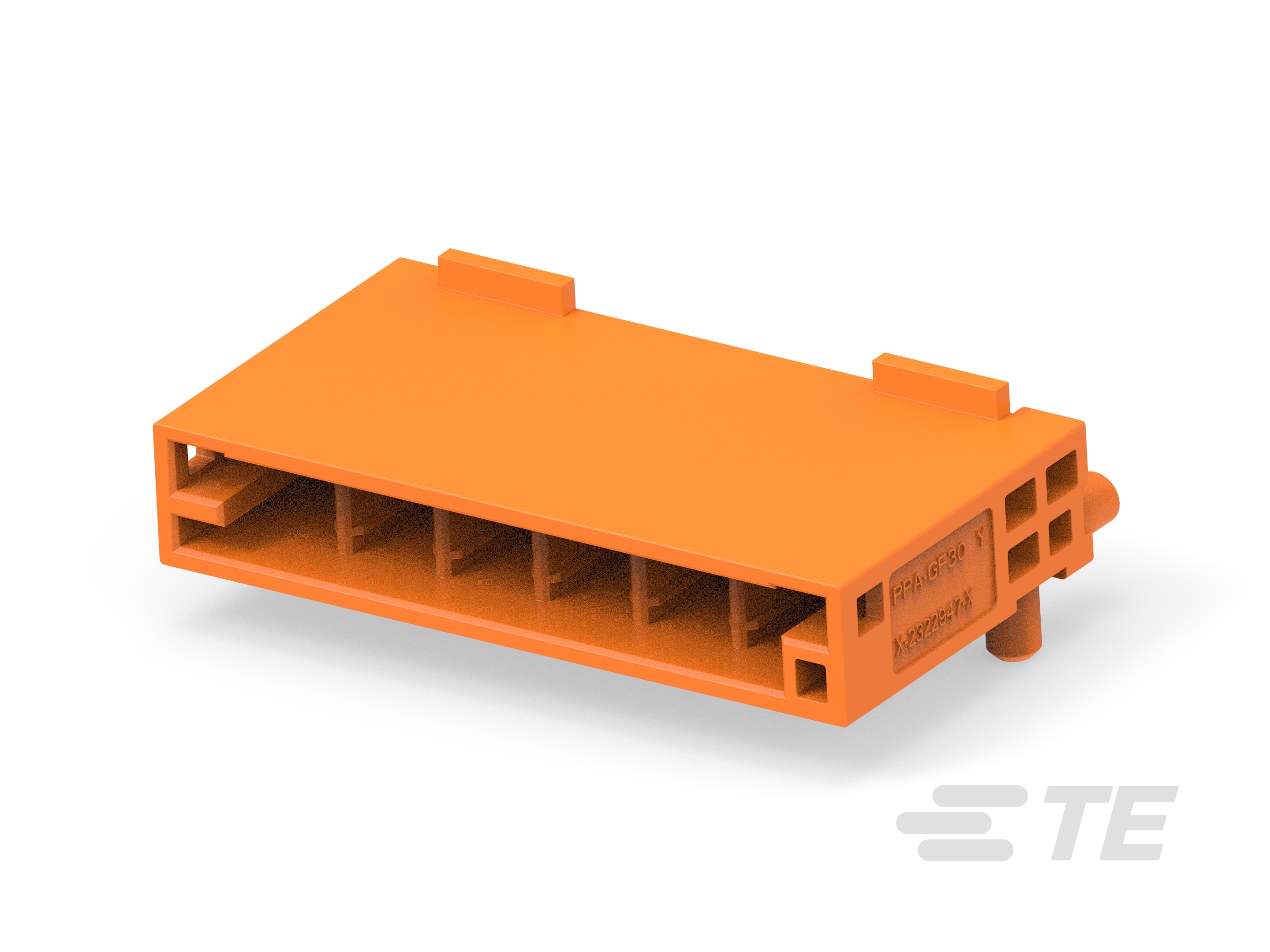

PCB Mount Header, Horizontal, Cable-to-Board, 6 Position, 6.35 mm [.25 in] Centerline, Header & Ejector Assembly, Tin (Sn), Through Hole - Solder
2322946-1
PCB Mount Header, Horizontal, Cable-to-Board, 6 Position, 6.35 mm [.25 in] Centerline, Header & Ejector Assembly, Tin (Sn), Through Hole - Solder
- TE Internal #: 2322946-1
- TE Internal Description: 6POS,TAB0.63X0.63,HDR ASSY,90DEG
-
PCB Connector Type : PCB Mount Header
-
PCB Mount Orientation : Horizontal
-
Connector System : Cable-to-Board
-
Number of Positions : 6
-
Number of Rows : 1
Documents
Product Drawings
- HV DETECTING HEADER ASSY RIGHT ANGLE ENG_CD_2322946_B5.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2322946-1_B.pdf 3D
- Customer View Model ENG_CVM_CVM_2322946-1_B.2d_dxf.zip English
- ENG_CVM_CVM_2322946-1_B.3d_igs.zip English
- ENG_CVM_CVM_2322946-1_B.3d_stp.zip English
Product Specifications
- Product Specification ENG_SS_108-32179_A1.pdf English
