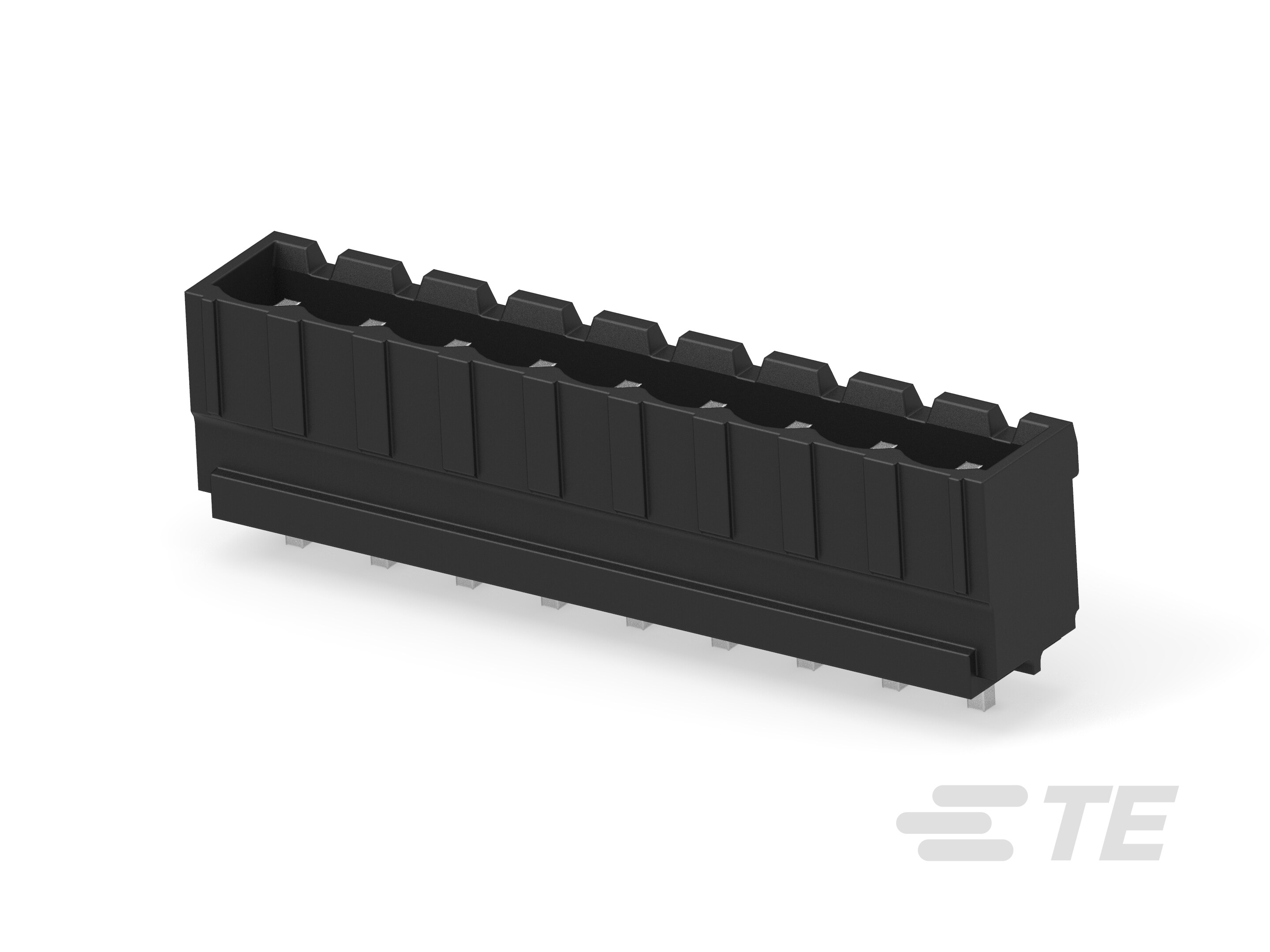

9 Position PCB Terminal Block, Header, Wire-to-Board, 5.08 mm [.2 in] Centerline, 1 Row, Operating Voltage 300 VAC, Printed Circuit Board
2342084-9
9 Position PCB Terminal Block, Header, Wire-to-Board, 5.08 mm [.2 in] Centerline, 1 Row, Operating Voltage 300 VAC, Printed Circuit Board
-
- Buchanan
- TE Internal #: 2342084-9
- TE Internal Description: 9POS HDR ST, HT, 5.08MM PITCH, TL 2.6MM
-
Number of Positions : 9
-
Terminal Block Connector Type : Header
-
Connector System : Wire-to-Board
-
Centerline (Pitch) : 5.08 mm [ .2 in ]
-
Number of Rows : 1
Documents
Product Drawings
- HEADER STRAIGHT, HIGH TEMPERATURE, 5.08MM PITCH, TAIL LENGTH 2.6mm ENG_CD_2342084_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2342084-9_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2342084-9_A.2d_dxf.zip English
- ENG_CVM_CVM_2342084-9_A.3d_igs.zip English
- ENG_CVM_CVM_2342084-9_A.3d_stp.zip English
Datasheets & Catalog Pages
- BUCHANAN PCB TERMINAL BLOCKS ENG_DS_1-773958-1_2008.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERTB_E60677_19960809_C1_7.pdf English
