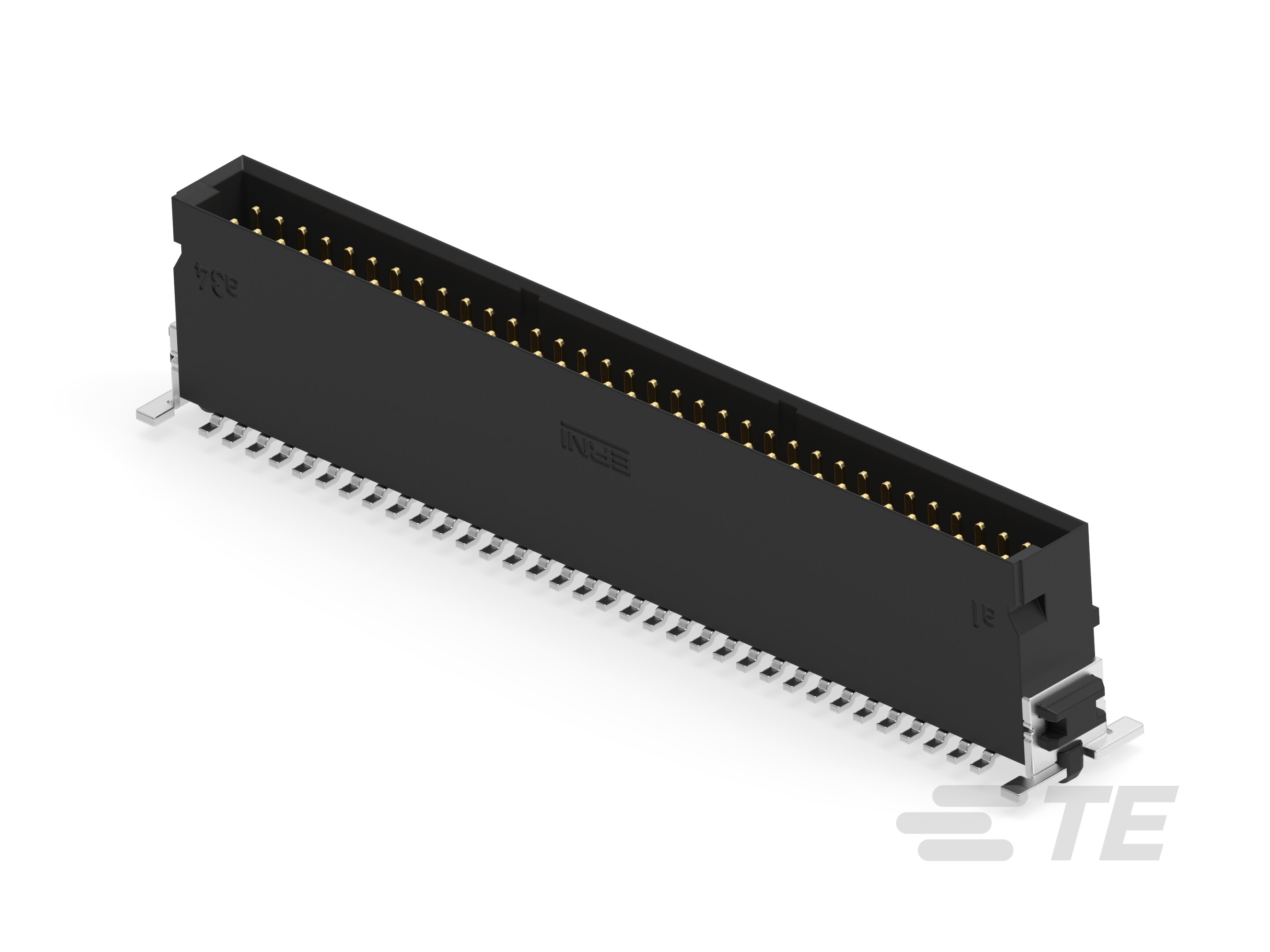

• Connector Shape : Rectangular

• PCB Connector Type : PCB Mount Header

• Connector System : Board-to-Board

• Header Type : Fully Shrouded

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Stackable : Yes

• Board-to-Board Configuration : Parallel

• Connector Contact Load Condition : Fully Loaded

• Stacking Configuration : Stack Through

• Number of Loaded Positions : 68

• PCB Mount Orientation : Vertical

• Number of Positions : 68

• Number of Rows : 2

• Dielectric Withstanding Voltage (Max) (Vrms): 500

• Connector Profile : High

• Primary Product Color : Black

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Mating Area Length : 4 mm [ .157 in ]

• Contact Layout : Matrix

• Contact Shape & Form : Rectangular

• PCB Contact Termination Area Plating Material Thickness : 4 – 6 µm [ 157.48 – 236.22 µin ]

• Contact Mating Area Plating Material : Gold (Au)

• Contact Type : Pin

• Contact Current Rating (Max) (A): 1

• Termination Method to PCB : Surface Mount

• PCB Mount Alignment Type : Locating Posts

• PCB Mount Retention Type : Location Peg

• Mating Alignment Type : Polarization

• Mounting Alignment Feature Length : .75 mm [ .029 in ]

• PCB Mount Retention : With

• PCB Mount Alignment : With

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Housing Material : LCP

• Mating Entry Location : Top

• Centerline (Pitch) : 1.27 mm [ .05 in ]

• Connector Length : 48.26 mm [ 1.9 in ]

• Profile Height from PCB : 9.85 mm [ .388 in ]

• Connector Height : 9.85 mm [ .388 in ]

• Connector Width : 7.2 mm [ .283 in ]

• Stack Height : 4.85 mm [ .191 in ]

• Row-to-Row Spacing : 1.27 mm [ .05 in ]

• Operating Temperature (Max) : 125 °C [ 257 °F ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Shielded : No

• Circuit Application : Power & Signal

• Compatible With Approved Standards Products : UL

• Industry Standard : IEC

• Compatible With Agency/Standards Products : DIN, UL

• UL Flammability Rating : UL 94V-0
