2343428-1

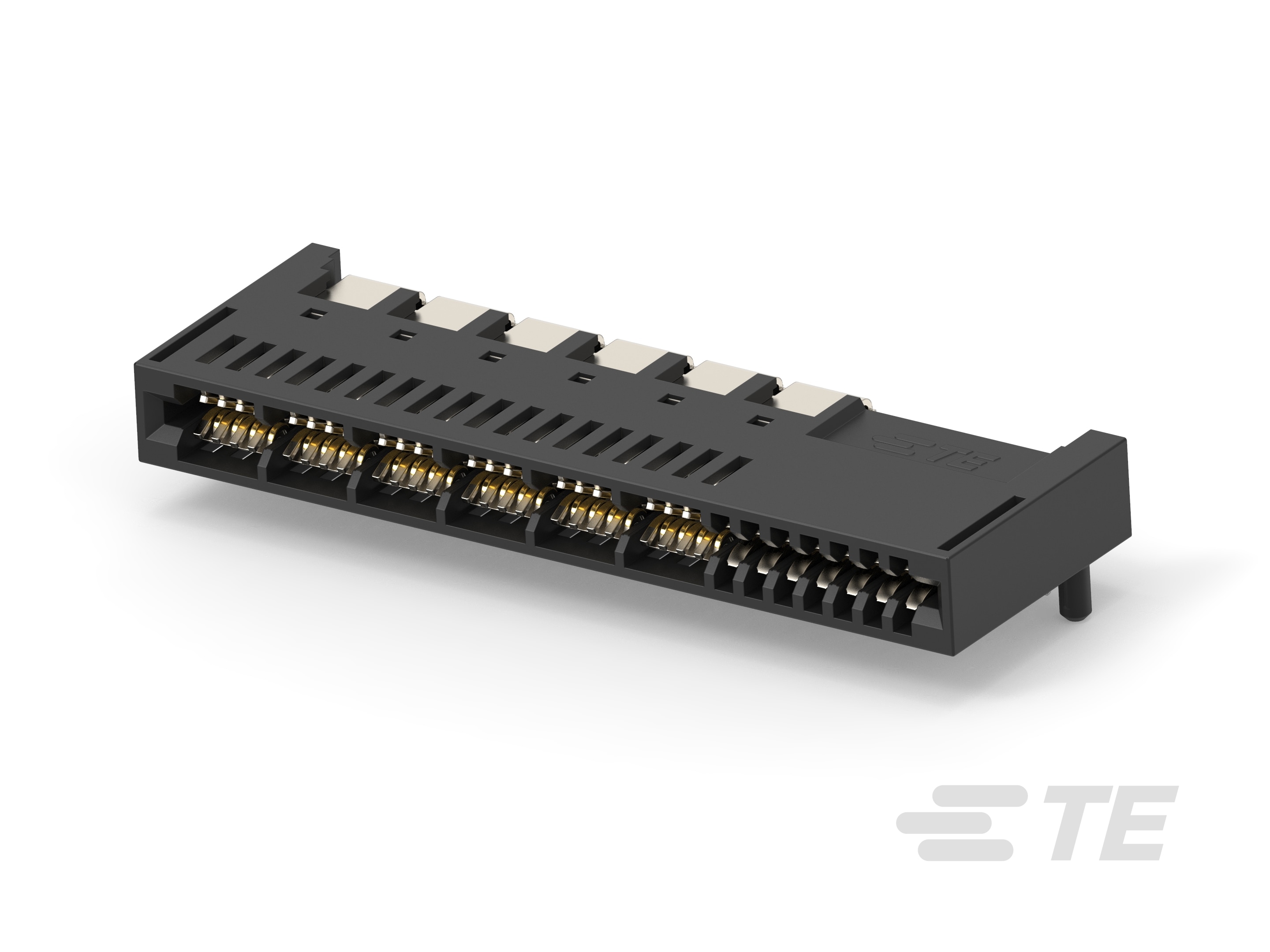

Board-to-Board Card Edge Power Connector, 26 Position, 7.62 mm [.3 in] Centerline, Power & Signal, 12 Power Positions, 14 Signal Positions
2343428-1
Board-to-Board Card Edge Power Connector, 26 Position, 7.62 mm [.3 in] Centerline, Power & Signal, 12 Power Positions, 14 Signal Positions
- TE Internal #: 2343428-1
- TE Internal Description: HD+ CE, RA, CRPS
-
Connector System : Board-to-Board
-
Number of Positions : 26
-
Centerline (Pitch) : 7.62 mm [ .3 in ]
-
Contact Current Rating (Max) (A): 41
-
Circuit Application : Power & Signal
Documents
Product Drawings
- HDCE PLUS, RIGHT ANGLE 2X6 POWER, 2X7 SIGNAL ENG_CD_2343428_A3.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2343428-1_A2.pdf 3D
- Customer View Model ENG_CVM_CVM_2343428-1_A2.2d_dxf.zip English
- ENG_CVM_CVM_2343428-1_A2.3d_igs.zip English
- ENG_CVM_CVM_2343428-1_A2.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-32380_A.pdf English
- Product Specification ENG_SS_108-128088_B2.pdf English
- Qualification Test Report ENG_SS_501-128089_B.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_E28476_20090305_E.pdf English
- TUV Certificate ENG_AAD_TUV-SUD_B_0471750023_A.pdf English
- ENG_AAD_TUV-SUD_B0471750023Rev.00_A.pdf English
