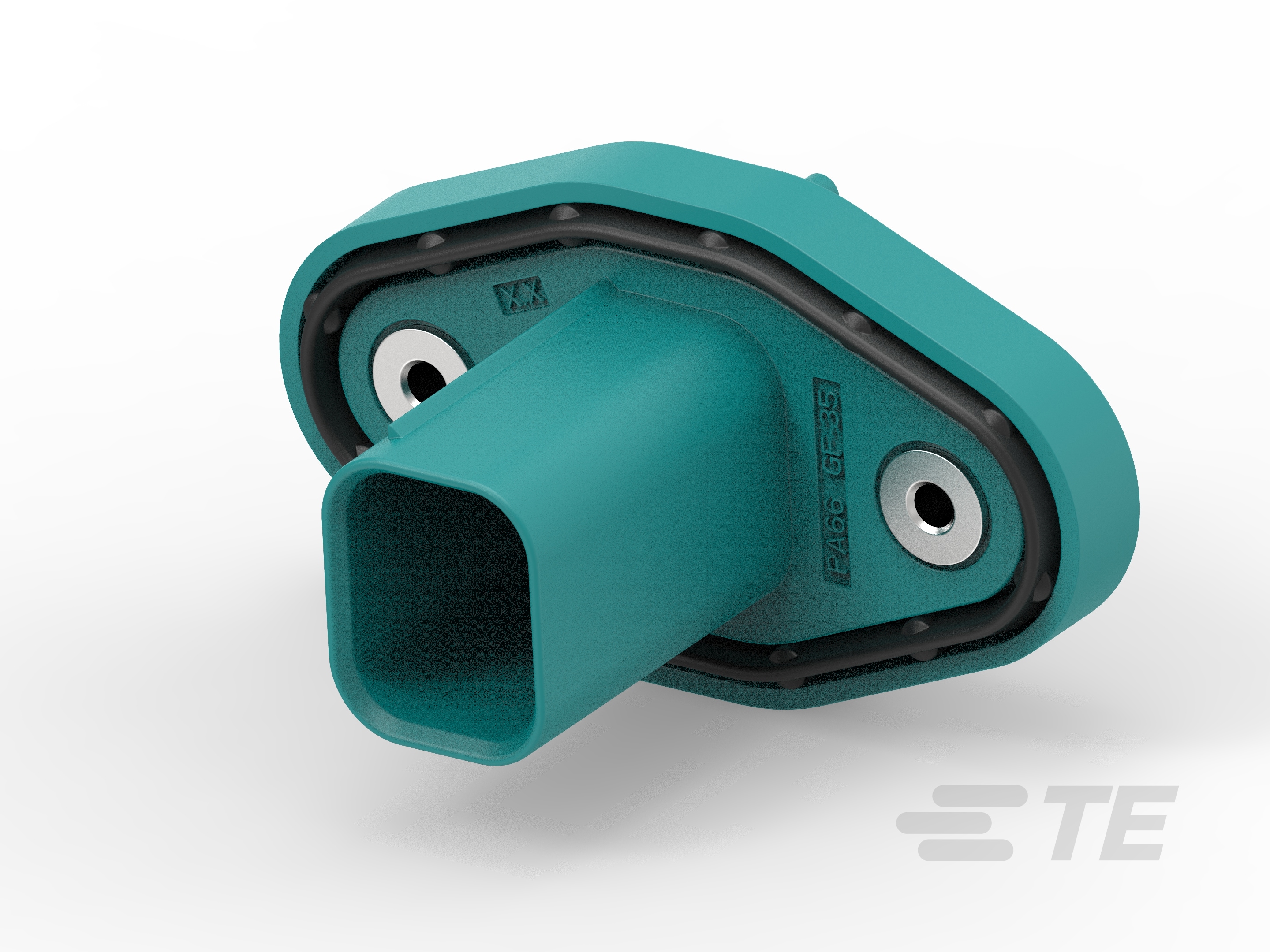

2355844-1
A, Cable-to-Board, 1 Position, Sealable, Shielded, Vertical, Signal, Board Mount, -40 – 105 °C [-40 – 221 °F], AMPSEAL 16, Data Connectivity Headers
2355844-1
A, Cable-to-Board, 1 Position, Sealable, Shielded, Vertical, Signal, Board Mount, -40 – 105 °C [-40 – 221 °F], AMPSEAL 16, Data Connectivity Headers
-
- AMPSEAL 16
- TE Internal #: 2355844-1
- TE Internal Description: 1POS,PIN DIA 2.5,HDR ASSY,180DEG
- All AMPseal 16 DC Headers (6)
-
Mating Pin Diameter : 2.5 mm [ .098 in ]
-
Connector & Keying Code : A
-
Connector System : Cable-to-Board
-
Number of Positions : 1
-
Sealable : Yes
Documents
Product Drawings
- 1POS,PIN DIA 2.5,HDR ASSY,180DEG AS16 COAX ENG_CD_2355844_B1.pdf English
- AS16 COAX PRODUCT FAMILY GROUP DRAWING ENG_CD_2381263_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2355844-1_B.pdf 3D
- Customer View Model ENG_CVM_CVM_2355844-1_B.3d_stp.zip English
- ENG_CVM_CVM_2355844-1_B.3d_igs.zip English
- ENG_CVM_CVM_2355844-1_B.2d_dxf.zip English
Datasheets & Catalog Pages
- DATA CONNECTIVITY SOLUTIONS ENG_CS_5-1773984-3_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-94667_A3.pdf English
- Product Specification ENG_SS_108-94799_A4.pdf English
- Qualification Test Report ENG_SS_501-94038_A3.pdf English
