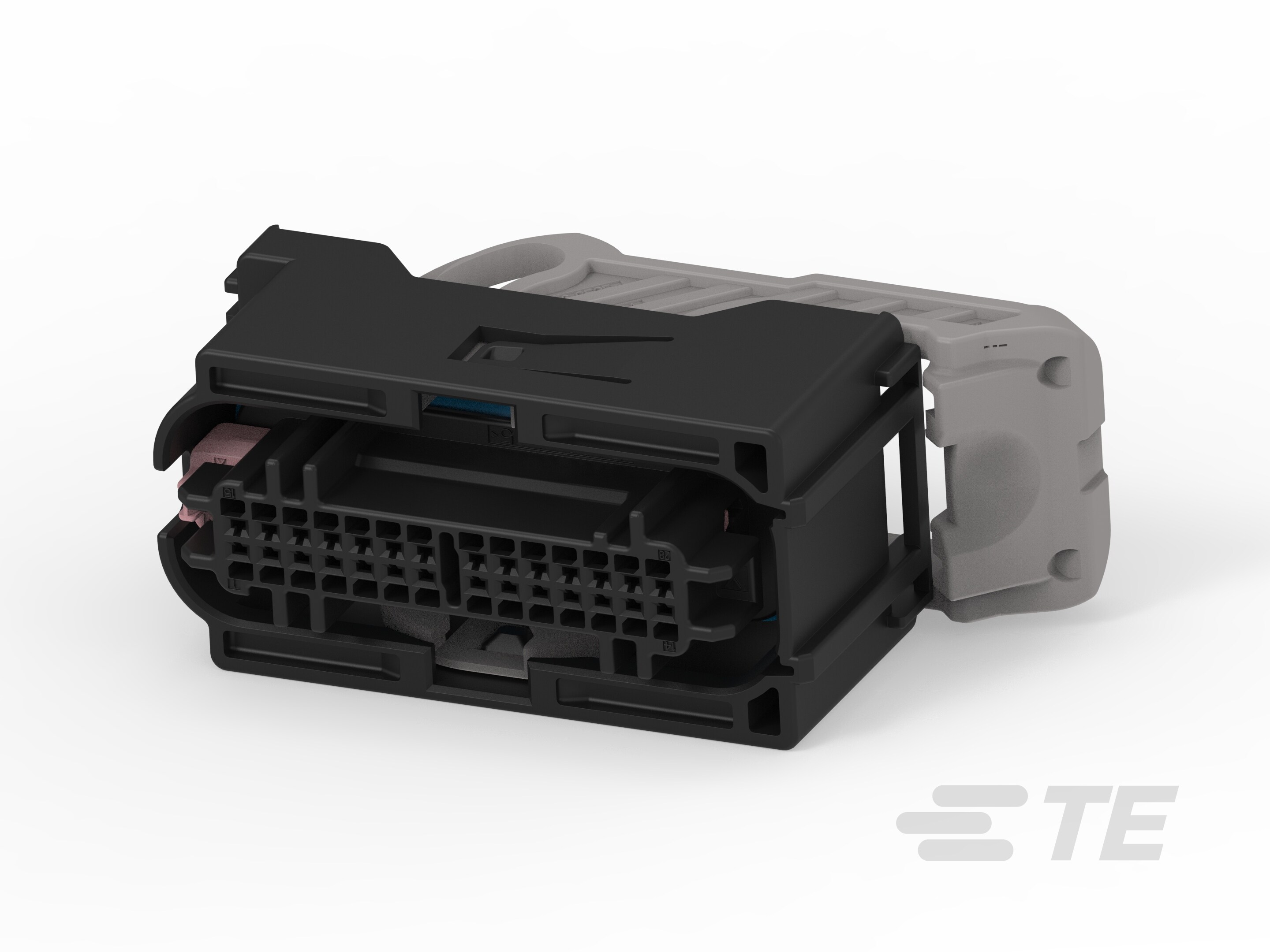

2362674-1
28 Position Housing, Housing for Female Terminals, Wire-to-Board, 3 mm [.11 in] Centerline, Sealable, Black, Wire & Cable, Power, MCON 1.2mm
2362674-1
28 Position Housing, Housing for Female Terminals, Wire-to-Board, 3 mm [.11 in] Centerline, Sealable, Black, Wire & Cable, Power, MCON 1.2mm
-
- MCON
- MCON 1.2mm
- TE Internal #: 2362674-1
- TE Internal Description: 28POS,MCON 1.2,REC HSG ASSY,SLD,COD A
-
Number of Positions : 28
-
Connector & Housing Type : Housing for Female Terminals
-
Mating Tab Width : 1.2 mm [ .04 in ]
-
Connector System : Wire-to-Board
-
Centerline (Pitch) : 3 mm [ .11 in ]
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2362674-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2362674-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2362674-1_A.3d_igs.zip English
- ENG_CVM_CVM_2362674-1_A.3d_stp.zip English
