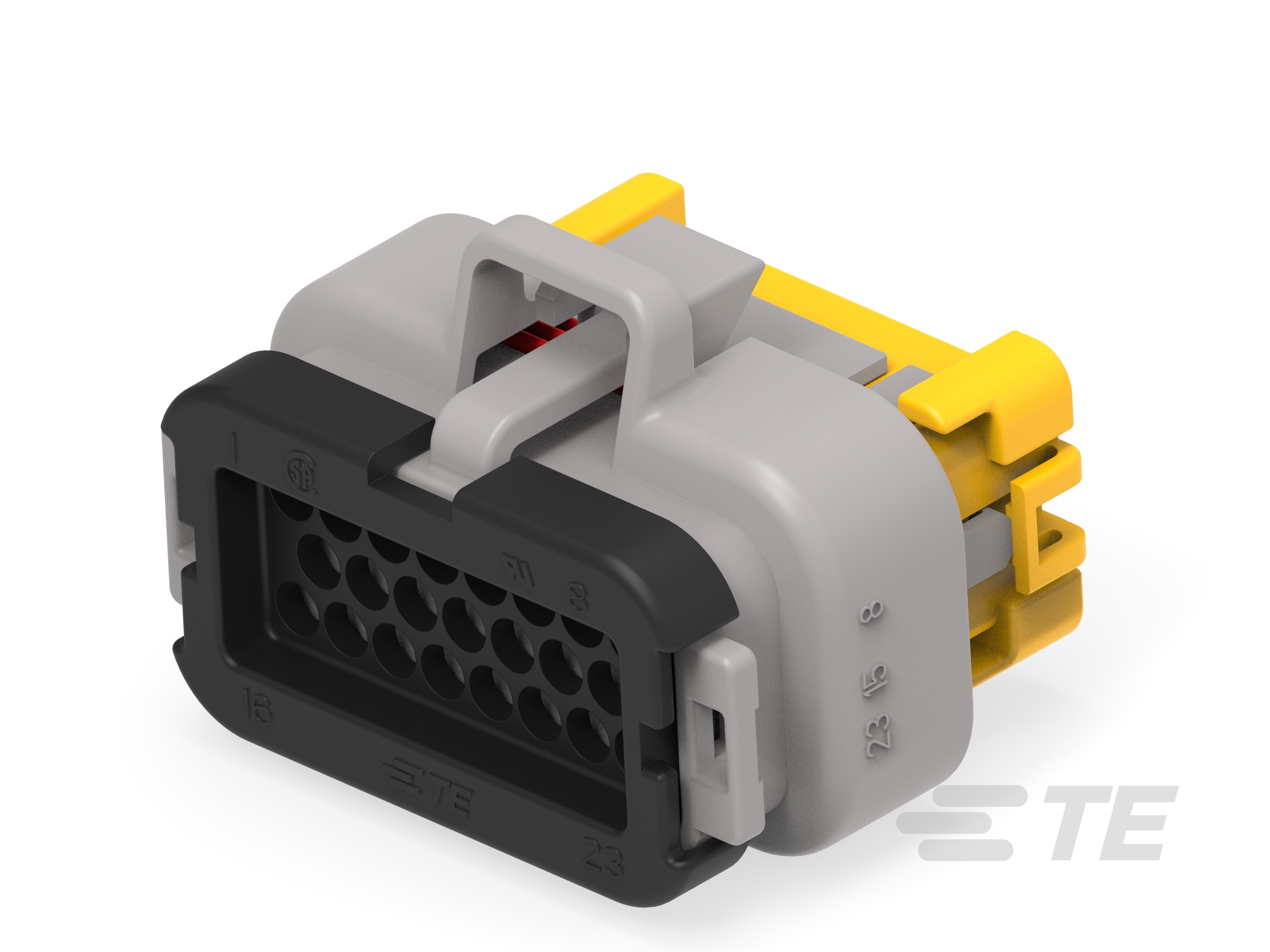

23 Position Housing, Housing for Female Terminals, Wire-to-Board, 4 mm [.16 in] Centerline, Sealable, Gray, Wire & Cable, AMPSEAL
2371884-4
23 Position Housing, Housing for Female Terminals, Wire-to-Board, 4 mm [.16 in] Centerline, Sealable, Gray, Wire & Cable, AMPSEAL
-
- AMP
- AMPSEAL
- TE Internal #: 2371884-4
- TE Internal Description: 23POS,AMPSEAL,SOC HSG ASSY,SLD,COD 4
- All AMPSEAL Receptacle Housings (31)
-
Number of Positions : 23
-
Connector & Housing Type : Housing for Female Terminals
-
Mating Pin Diameter : 1.3 mm [ .05 in ]
-
Connector System : Wire-to-Board
-
Centerline (Pitch) : 4 mm [ .16 in ]
