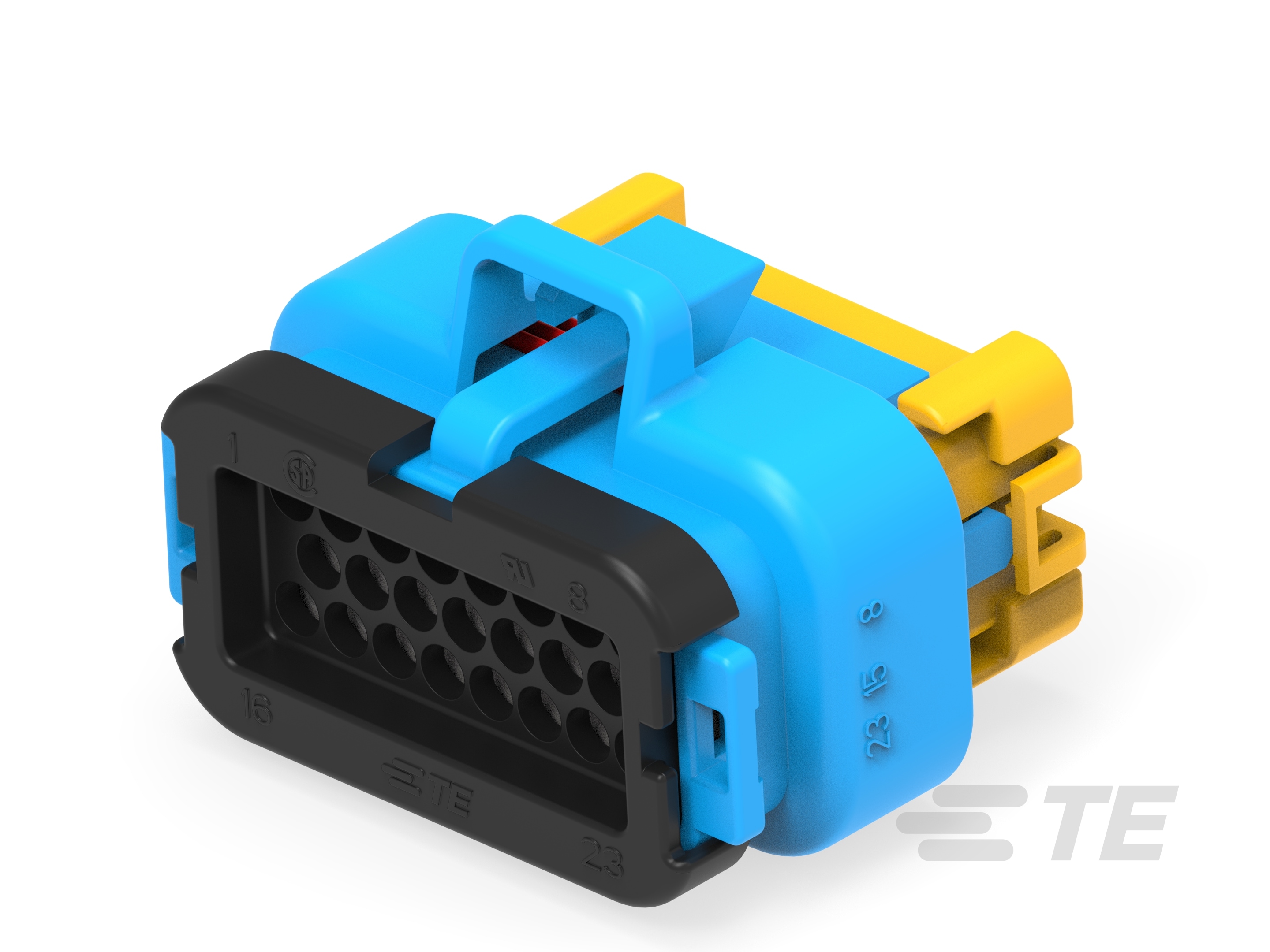

23 Position Housing, Housing for Female Terminals, Wire-to-Board, 4 mm [.16 in] Centerline, Sealable, Blue, Wire & Cable, AMPSEAL
2371884-5
23 Position Housing, Housing for Female Terminals, Wire-to-Board, 4 mm [.16 in] Centerline, Sealable, Blue, Wire & Cable, AMPSEAL
-
- AMP
- AMPSEAL
- TE Internal #: 2371884-5
- TE Internal Description: 23POS,AMPSEAL,SOC HSG ASSY,SLD,COD 5
- All AMPSEAL Receptacle Housings (31)
-
Number of Positions : 23
-
Connector & Housing Type : Housing for Female Terminals
-
Mating Pin Diameter : 1.3 mm [ .05 in ]
-
Connector System : Wire-to-Board
-
Centerline (Pitch) : 4 mm [ .16 in ]
Documents
Product Drawings
- PLUG ASSEMBLY,REDUCED WIRE SIZE AMPSEAL FAMILY DRAWING ENG_CD_2371886_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2371884-5_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2371884-5_A.2d_dxf.zip English
- ENG_CVM_CVM_2371884-5_A.3d_igs.zip English
- ENG_CVM_CVM_2371884-5_A.3d_stp.zip English
Datasheets & Catalog Pages
- AMPSEAL Connector Series ENG_CS_ict_ampseal_cat_a4_1-1773979-2_en_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-16016_S.pdf English
- Product Specification ENG_SS_108-160402_A.pdf English
- Qualification Test Report ENG_SS_501-160470_A.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_CERT_E28476_19920617_C1_E2.pdf English
- CSA Certificate ENG_AAD_CSA_CERT_164196_1062842_623301_C1_D.pdf English
