2383853-4

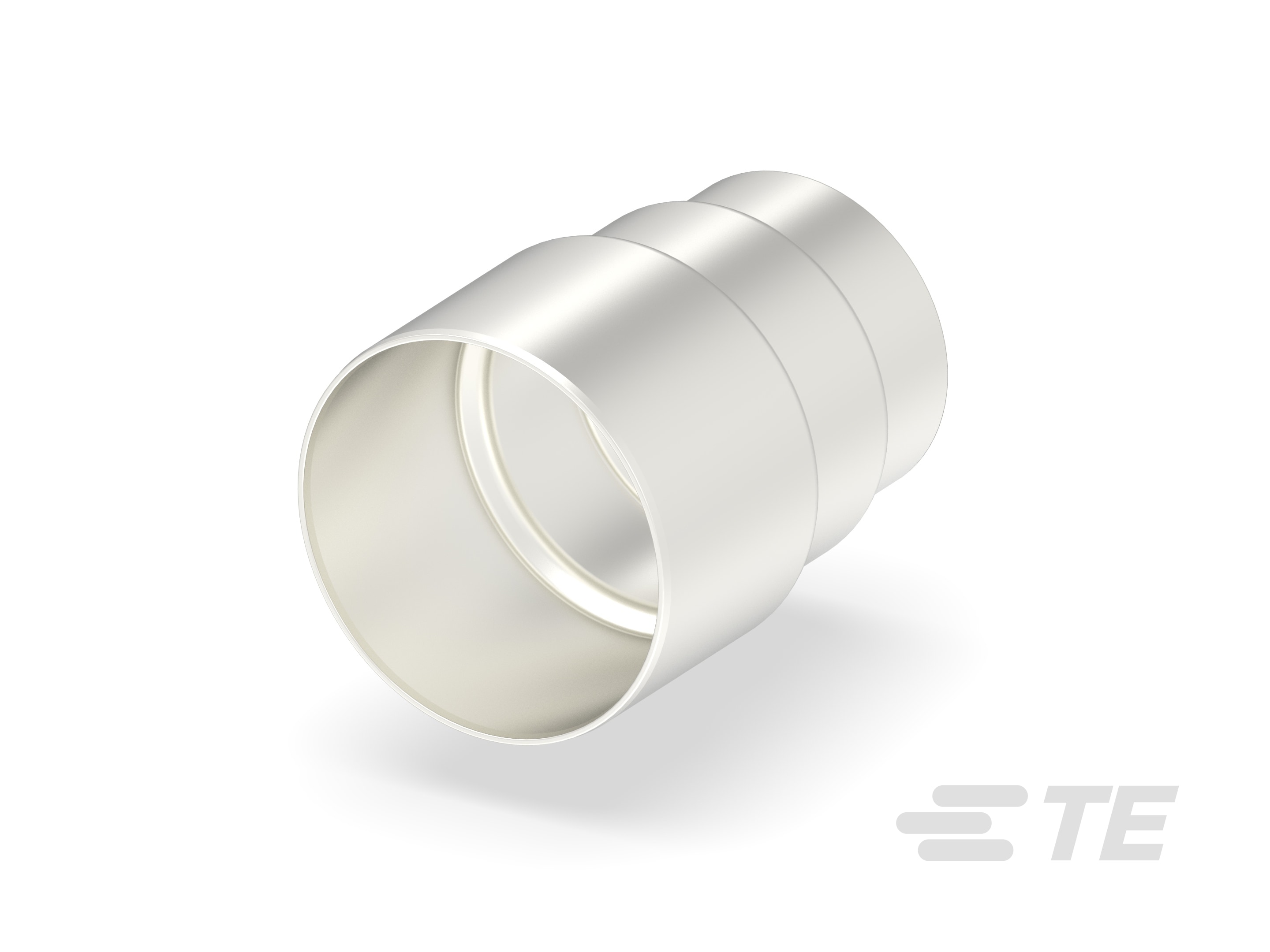

Sleeve, Copper Alloy, Silver, -40 – 140 °C [-40 – 284 °F], PowerTube HVP-HD 1000, Other Automotive Connector Accessories
2383853-4
Sleeve, Copper Alloy, Silver, -40 – 140 °C [-40 – 284 °F], PowerTube HVP-HD 1000, Other Automotive Connector Accessories
-
- PowerTube
- PowerTube HVP-HD 1000
- TE Internal #: 2383853-4
- TE Internal Description: H&S 50mm, Shielt Sleeve
- All PowerTube HVP-HD 1000 Accessories and Plug Components (29)
-
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
-
Primary Product Color : Silver
-
Primary Product Material : Copper Alloy
-
Automotive Connector Accessory Type : Sleeve
Documents
Product Drawings
- SHIELD SLEEVE HVP-HD1000 ENG_CD_2383853_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2383853-4_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2383853-4_A.2d_dxf.zip English
- ENG_CVM_CVM_2383853-4_A.3d_igs.zip English
- ENG_CVM_CVM_2383853-4_A.3d_stp.zip English
Datasheets & Catalog Pages
- HIVONEX CONNECTORS & CHARGING SOLUTIONS ENG_CS_3-1773983-4_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-160182_A.pdf English
- Product Specification ENG_SS_108-160341_A.pdf English
