2399667-3

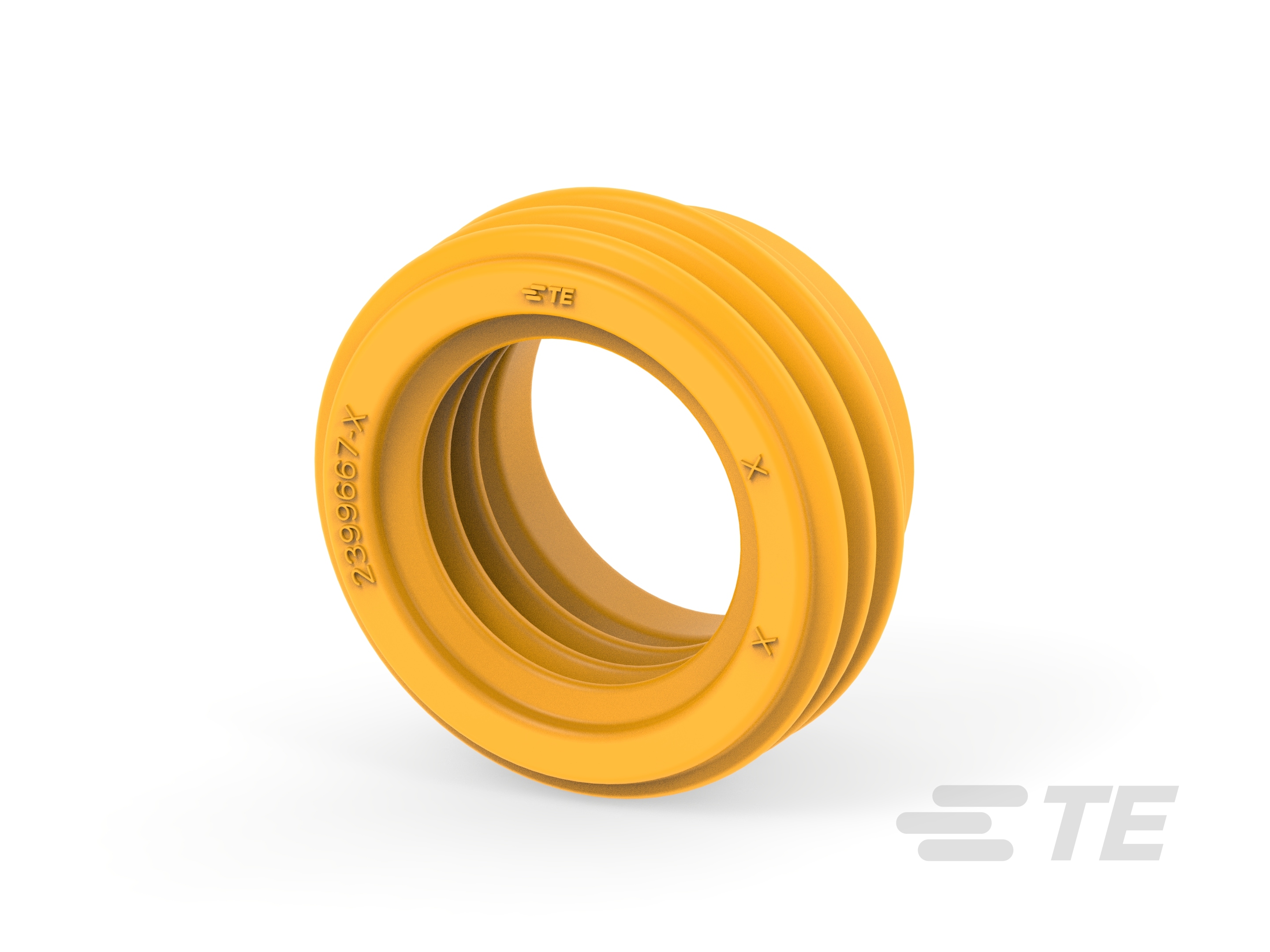

Single Wire Seal (SWS), Silicone Rubber, Yellow, 20.2 mm [.795 in] Cavity Diameter, -40 – 140 °C [-40 – 284 °F], PowerTube HVP-HD 1400
2399667-3
Single Wire Seal (SWS), Silicone Rubber, Yellow, 20.2 mm [.795 in] Cavity Diameter, -40 – 140 °C [-40 – 284 °F], PowerTube HVP-HD 1400
-
- PowerTube
- PowerTube HVP-HD 1400
- TE Internal #: 2399667-3
- TE Internal Description: H&S 120mm, SWS
-
Connector Seal & Plug Type : Single Wire Seal (SWS)
-
Primary Product Material : Silicone Rubber
-
Primary Product Color : Yellow
-
Cavity Diameter : 20.2 mm [ .795 in ]
-
Shore A Hardness : 27
Documents
Product Drawings
- SINGLE WIRE SEAL HVP-HD1400 ENG_CD_2399667_A4.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2399667-3_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2399667-3_A.3d_stp.zip English
- ENG_CVM_CVM_2399667-3_A.2d_dxf.zip English
- ENG_CVM_CVM_2399667-3_A.3d_igs.zip English
Datasheets & Catalog Pages
- HIVONEX CONNECTORS & CHARGING SOLUTIONS ENG_CS_3-1773983-4_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-160223_A.pdf English
- Product Specification ENG_SS_108-160407_A.pdf English
