2405007-1

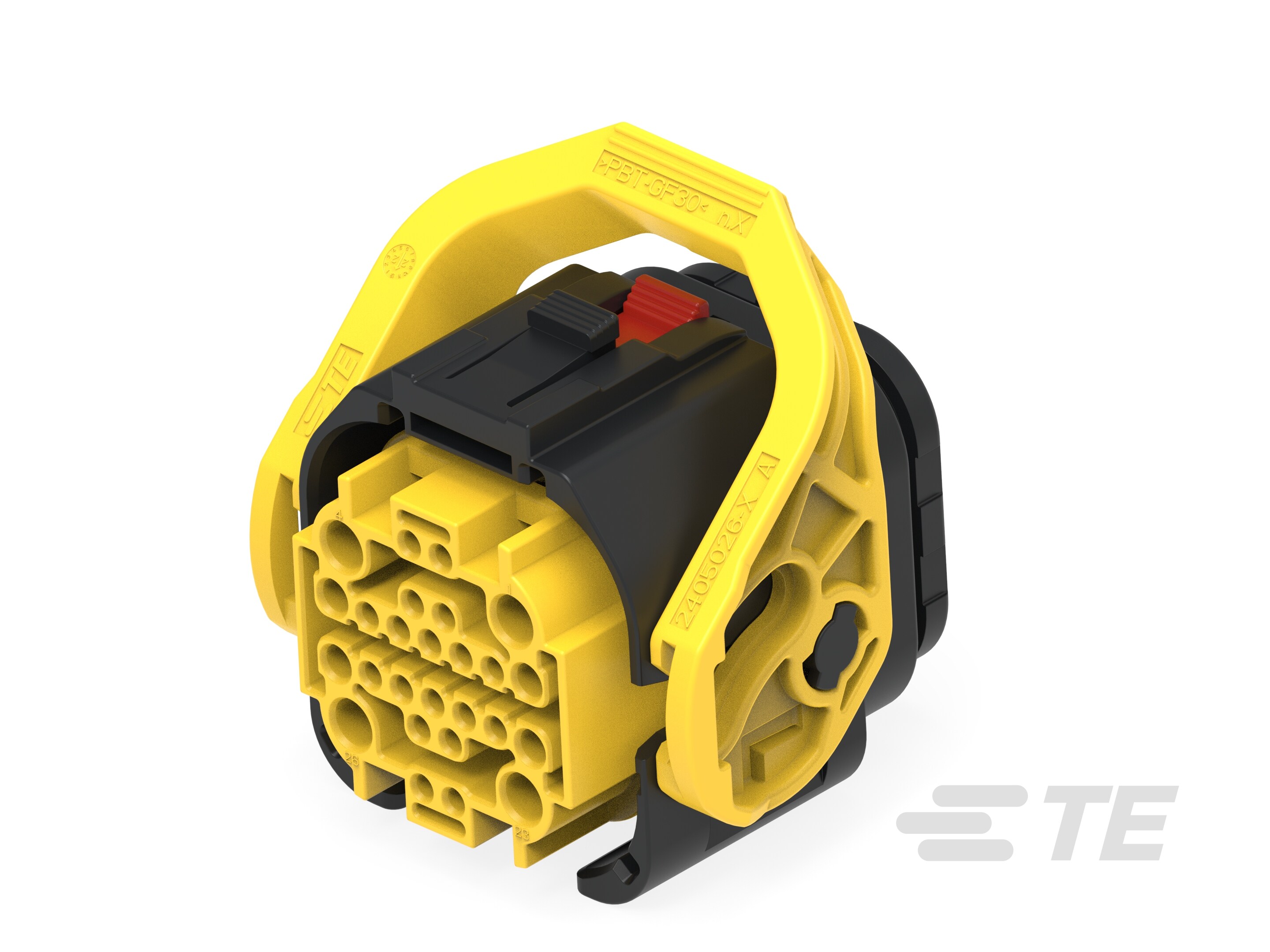

26 Position Housing, Plug, Cable-to-Cable, Sealable, Black, Wire & Cable, Power & Signal, Cable Mount (Free-Hanging), DEUTSCH NTSEAL
2405007-1
26 Position Housing, Plug, Cable-to-Cable, Sealable, Black, Wire & Cable, Power & Signal, Cable Mount (Free-Hanging), DEUTSCH NTSEAL
-
- DEUTSCH
- DEUTSCH NTSEAL
- TE Internal #: 2405007-1
- TE Internal Description: 26POS,HYBRID,SOC HSG ASSY,SLD,COD A
-
Number of Positions : 26
-
Connector & Housing Type : Plug
-
Connector System : Cable-to-Cable
-
Sealable : Yes
-
Primary Locking Feature : Locking Lance
Documents
Product Drawings
- NTS 26P PLUG ASSEMBLY ENG_CD_2405007_A2.pdf English
- INTERFACE DRAWING NTS 26P HYBRID CONNECTOR ENG_CD_114-160450_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2405007-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2405007-1_A.3d_igs.zip English
- ENG_CVM_CVM_2405007-1_A.3d_stp.zip English
- ENG_CVM_CVM_2405007-1_A.2d_dxf.zip English
Datasheets & Catalog Pages
- NTSEAL Sealed Wire-to-Wire Connectors ENG_DS_ict-ntseal-ds-a4-en_A.pdf English
Product Specifications
- Application Specification ENG_SS_114-32209_C3.pdf English
- Product Specification ENG_SS_108-101662_D2.pdf English
