2416068-1

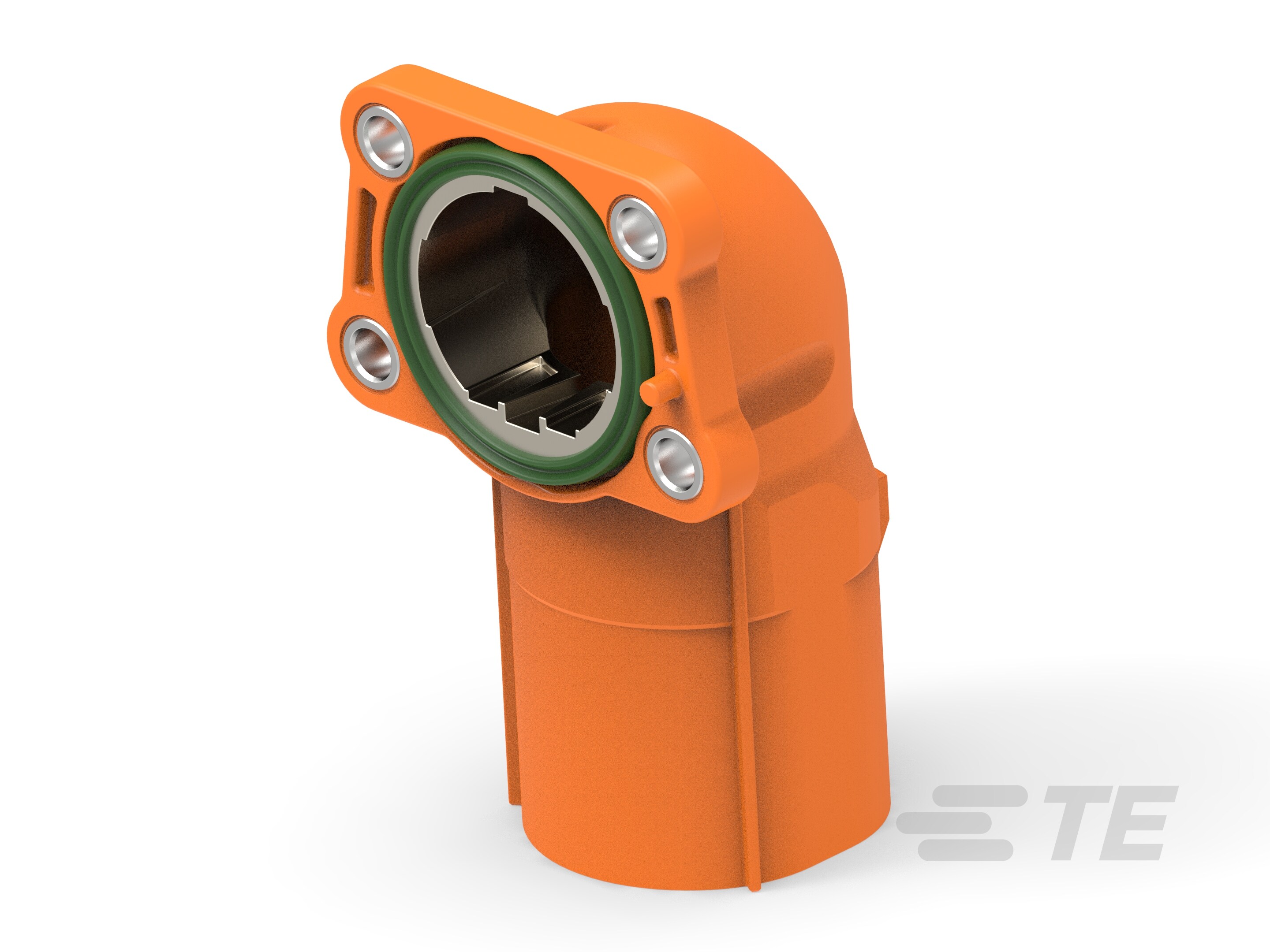

Housing for Male Terminals, Cable-to-Panel, Sealable, Orange, Wire & Cable, Power, Cable Mount (Free-Hanging), -40 – 140 °C [-40 – 284 °F], HVA HD400
2416068-1
Housing for Male Terminals, Cable-to-Panel, Sealable, Orange, Wire & Cable, Power, Cable Mount (Free-Hanging), -40 – 140 °C [-40 – 284 °F], HVA HD400
-
- HIVONEX
- HVA HD400
- TE Internal #: 2416068-1
- TE Internal Description: 3POS,DIA 4MM,HDR ASSY,90DEG,COD A
-
Connector & Housing Type : Housing for Male Terminals
-
Mating Pin Diameter : 4 mm [ .157 in ]
-
Connector System : Cable-to-Panel
-
Sealable : Yes
-
Operating Temperature (Max) : 140 °C [ 284 °F ]
Documents
Product Drawings
- HVA HD400 90DEG HEADER OUTER HOUSING ASSY ENG_CD_2416068_C.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2416068-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2416068-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2416068-1_A.3d_stp.zip English
- ENG_CVM_CVM_2416068-1_A.3d_igs.zip English
Product Specifications
- Application Specification ENG_SS_114-160443_1_A1.pdf English
- Product Specification ENG_SS_108-160734_1_A1.pdf English
