2425487-1

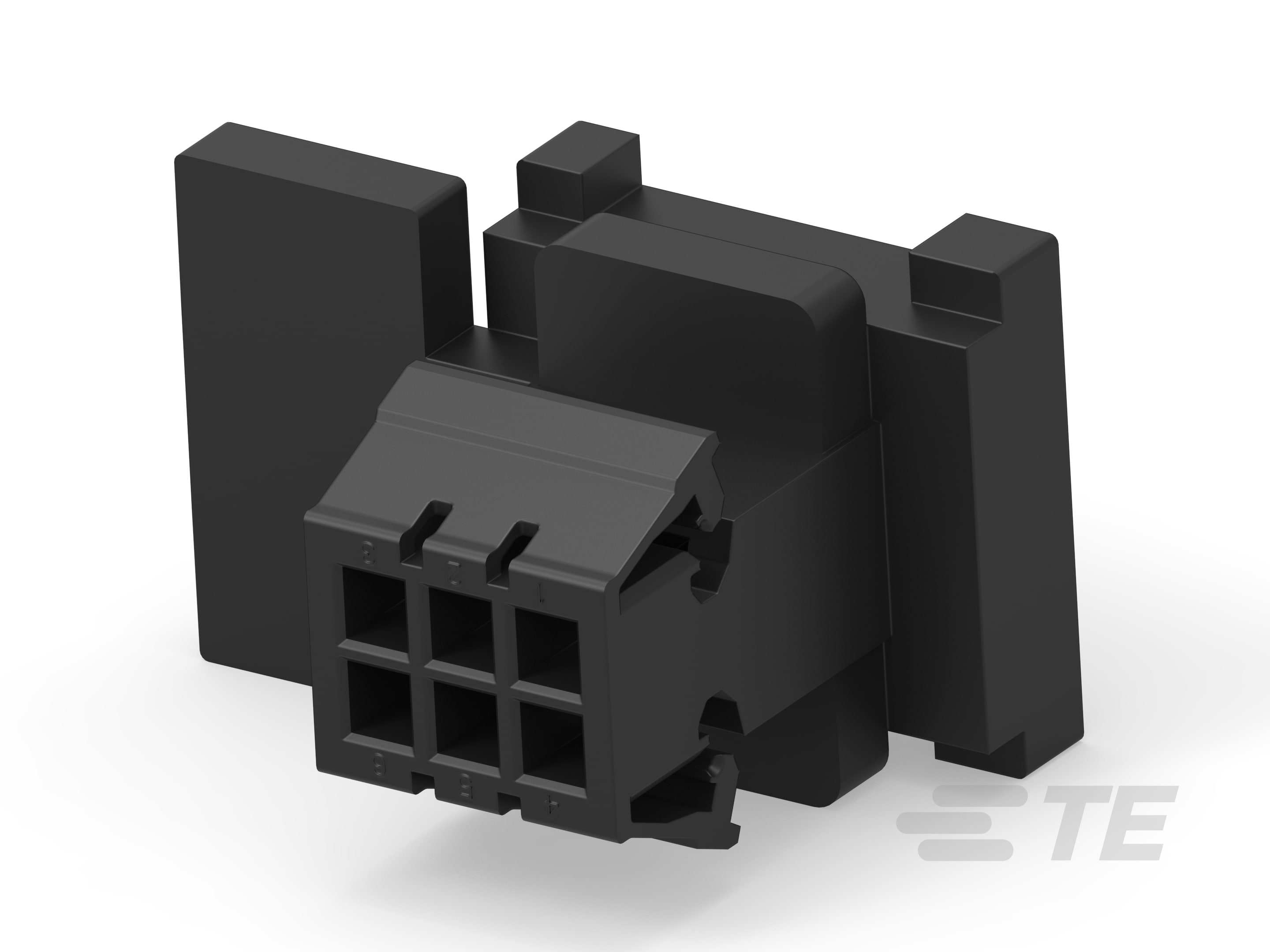

Housing, Cap, Crimp, Wire-to-Panel, UL 94V-0, 6 Position, 3 mm [.118 in] Centerline, Micro MATE-N-LOK, Rectangular Wire & Cable Connectors & Housings
2425487-1
Housing, Cap, Crimp, Wire-to-Panel, UL 94V-0, 6 Position, 3 mm [.118 in] Centerline, Micro MATE-N-LOK, Rectangular Wire & Cable Connectors & Housings
-
- MATE-N-LOK
- Micro MATE-N-LOK
- TE Internal #: 2425487-1
- TE Internal Description: MICRO MNL BLIND MATE HINGED TPA CAP 6P
-
Connector Product Type : Housing
-
Connector & Housing Type : Cap
-
Termination Method to Wire & Cable : Crimp
-
Connector System : Wire-to-Panel
-
Contact Retention Within Housing : Without
Documents
Product Drawings
- MICRO MNL BLIND MATE HINGED TPA CAP 6P ENG_CD_2425487_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2425487-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2425487-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2425487-1_A.3d_igs.zip English
- ENG_CVM_CVM_2425487-1_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-13000_H.pdf English
- Product Specification ENG_SS_108-1836_E.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_CERT_E28476_20010627_C1_C-6.pdf English
Product And Material Test Reports
- 502-160863 ENG_PMTR_502-160863_A.pdf English
