Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

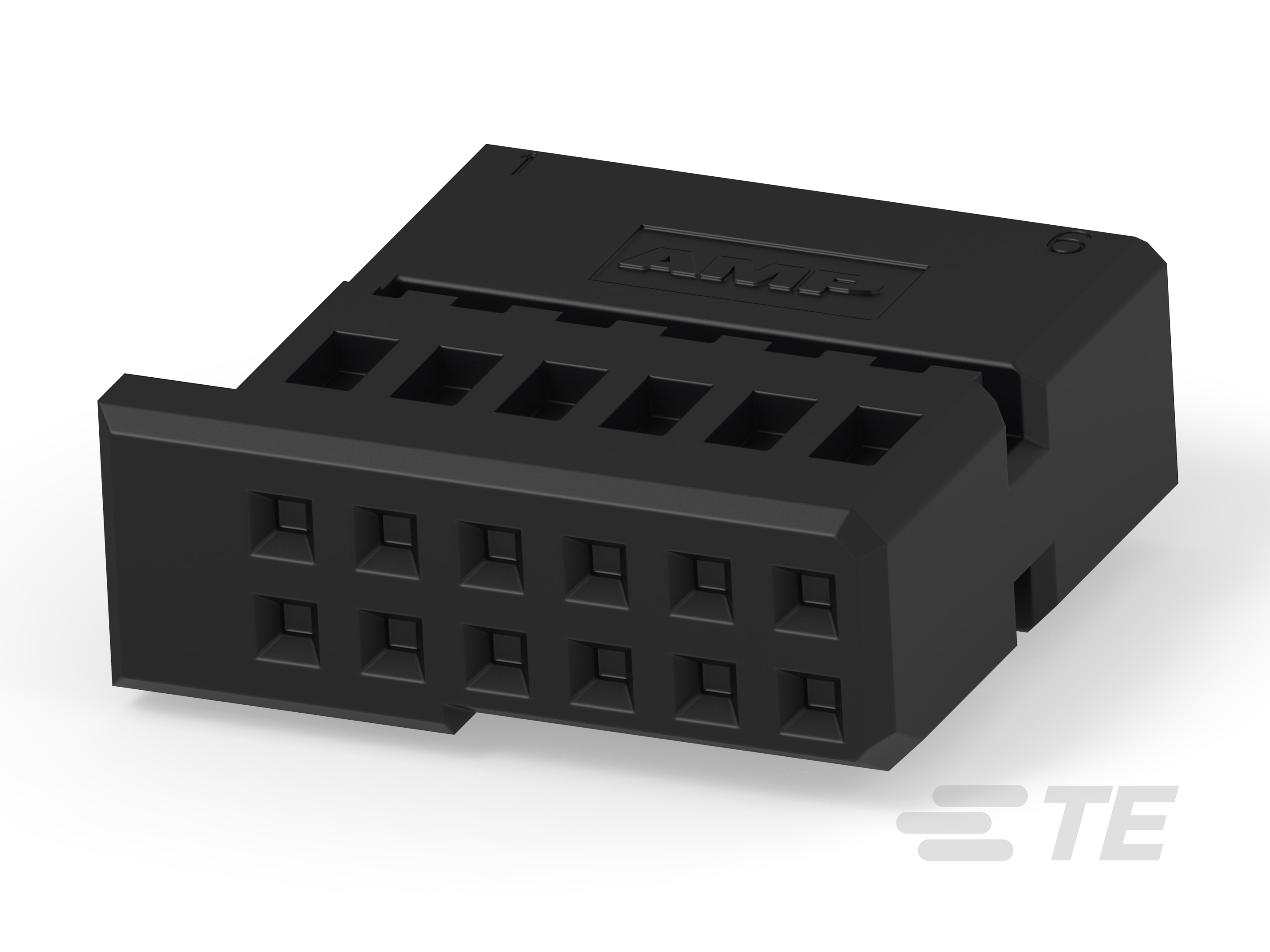

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Plug

• Connector System : Wire-to-Board

• Sealable : No

• Primary Locking Feature : On the Terminal

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Receptacle

• Contact Size : .63mm

• Mating Tab Width : .63 mm [ .025 in ]

• Contact Current Rating (Max) (A): 6

• Housing Material : PA GF

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Black

• Operating Voltage (VDC): 24

• Nominal Voltage Architecture (V): 24

• Serviceable : No

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Polarized

• Terminal Position Assurance : No

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Carton

• Connector Height : 16 mm [ .63 in ]

• Product Length : 19.1 mm [ .752 in ]

• Product Width : 6.95 mm [ .274 in ]

• Row-to-Row Spacing : 5 mm [ .197 in ]

• Number of Positions : 12

• Number of Rows : 2

• Operating Temperature (Max) (°C): 80, 105, 100, 90, 85, 75, 70

• Operating Temperature (Max) (°F): 221, 158, 167, 176, 194, 185, 212

• Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]
