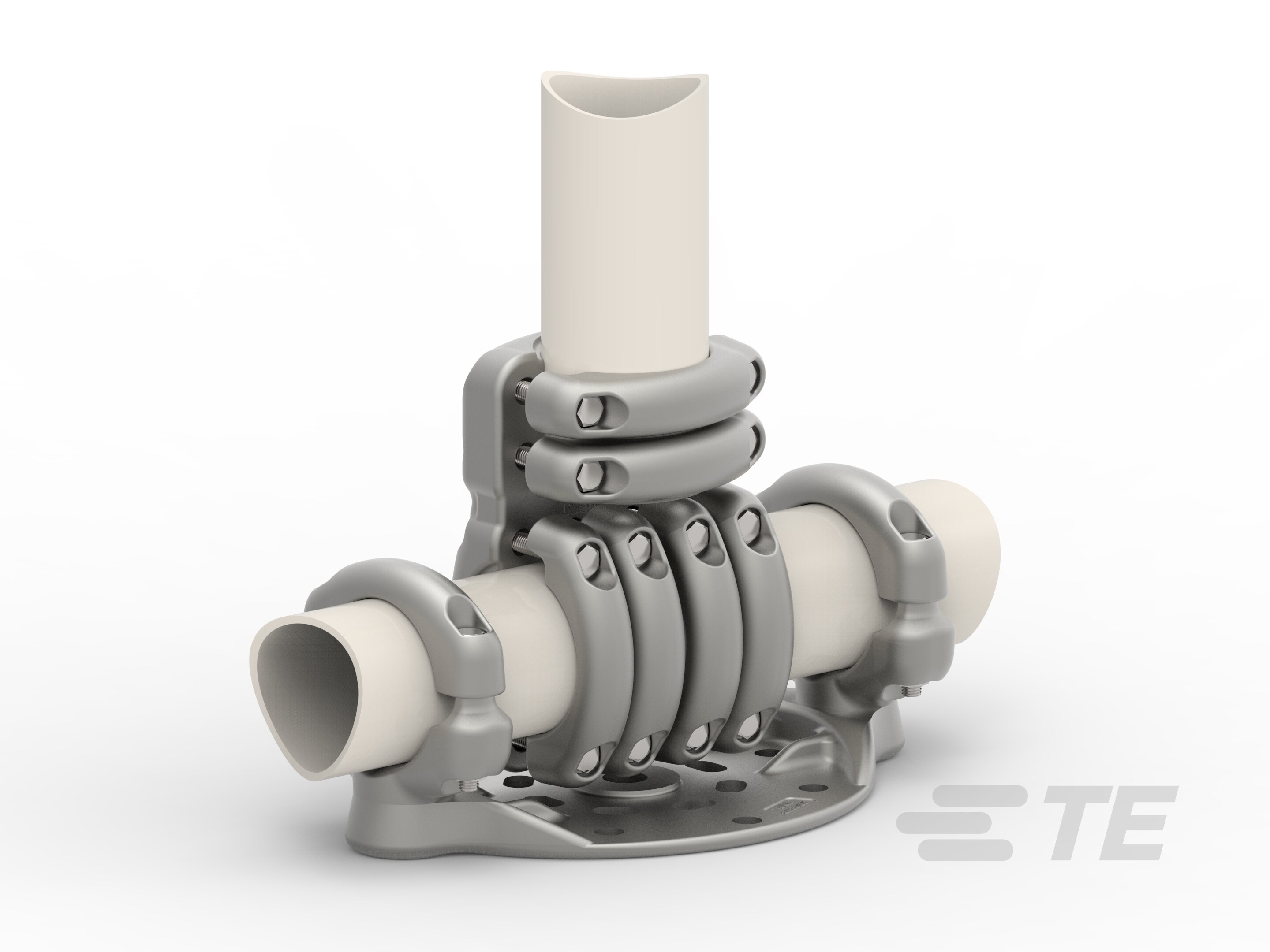

Derivation Busbar Support, Bolted Bus Junction, ≤ 500 kV, Aluminum Conductor, Tube 100 mm, Aluminum, 4 / 6 Bolts, SIMEL SIMABUS
2845374-1
Derivation Busbar Support, Bolted Bus Junction, ≤ 500 kV, Aluminum Conductor, Tube 100 mm, Aluminum, 4 / 6 Bolts, SIMEL SIMABUS
-
- SIMEL
- SIMEL SIMABUS
- TE Internal #: 2845374-1
- TE Internal Description: 5 TDJ 88 P5-P225 T100
- All High Voltage Rigid Bus Connectors (462)
-
Mechanical Connector Product Type : Derivation Busbar Support
-
Installation Technology : Bolted Bus Junction
-
Voltage Class (kV): ≤ 500
-
Compatible Conductor Material : Aluminum
-
Conductor Type : Tube 100 mm
Documents
Product Drawings
- 5 TDJ 88 P5-P225 T100 FRE_CD_2845374_A.pdf French
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_2845374-1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_2845374-1_A.2d_dxf.zip English
- ENG_CVM_CVM_2845374-1_A.3d_igs.zip English
- ENG_CVM_CVM_2845374-1_A.3d_stp.zip English
Datasheets & Catalog Pages
- SIMABUS CONNECTORS (DDS) ENG_DS_EPP-2208_1410.pdf English
