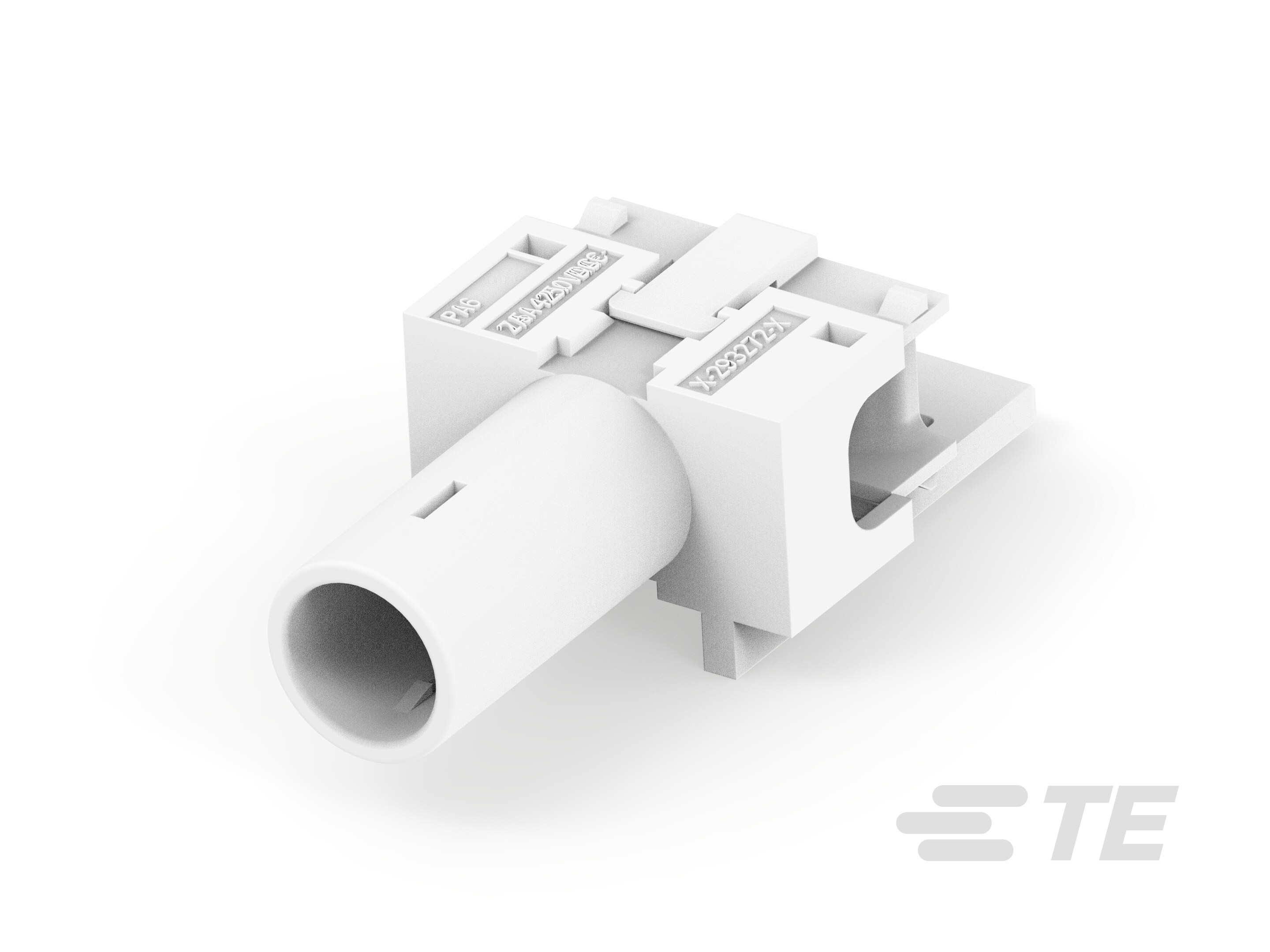

293270-1
Bus Bar, Wire-to-Bus Bar, 2 Position, Sealable, Bus Bar, 250 VAC, Cable Mount (Free-Hanging), NECTOR S, Plug & Socket Lighting Connector Accessories
293270-1
Bus Bar, Wire-to-Bus Bar, 2 Position, Sealable, Bus Bar, 250 VAC, Cable Mount (Free-Hanging), NECTOR S, Plug & Socket Lighting Connector Accessories
-
- NECTOR
- NECTOR S
- TE Internal #: 293270-1
- TE Internal Description: NECTOR S BUS BAR SEALED TAB HV-1
-
Lighting Connector Accessory Type : Bus Bar
-
Connector System : Wire-to-Bus Bar
-
Number of Positions : 2
-
Sealable : Yes
-
Connector & Contact Terminates To : Bus Bar
Documents
Product Drawings
- BUS BAR 2 POSITION SEALED ENG_CD_293270_Y2.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_293270-1_Y.pdf 3D
- Customer View Model ENG_CVM_CVM_293270-1_Y.2d_dxf.zip English
- ENG_CVM_CVM_293270-1_Y.3d_igs.zip English
- ENG_CVM_CVM_293270-1_Y.3d_stp.zip English
Datasheets & Catalog Pages
- NECTOR_S_LINE_CONNECTOR_BROCHURE ENG_DS_1773457-7_NECTOR_S_LINE_CONNECTORS_2002.pdf English
Product Specifications
- Application Specification ENG_SS_114-20131_C.pdf English
- Product Specification ENG_SS_108-94018_A4.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-32179_A.pdf English
