Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• Connector & Contact Terminates To : Wire & Cable

• Connector Shape : Rectangular

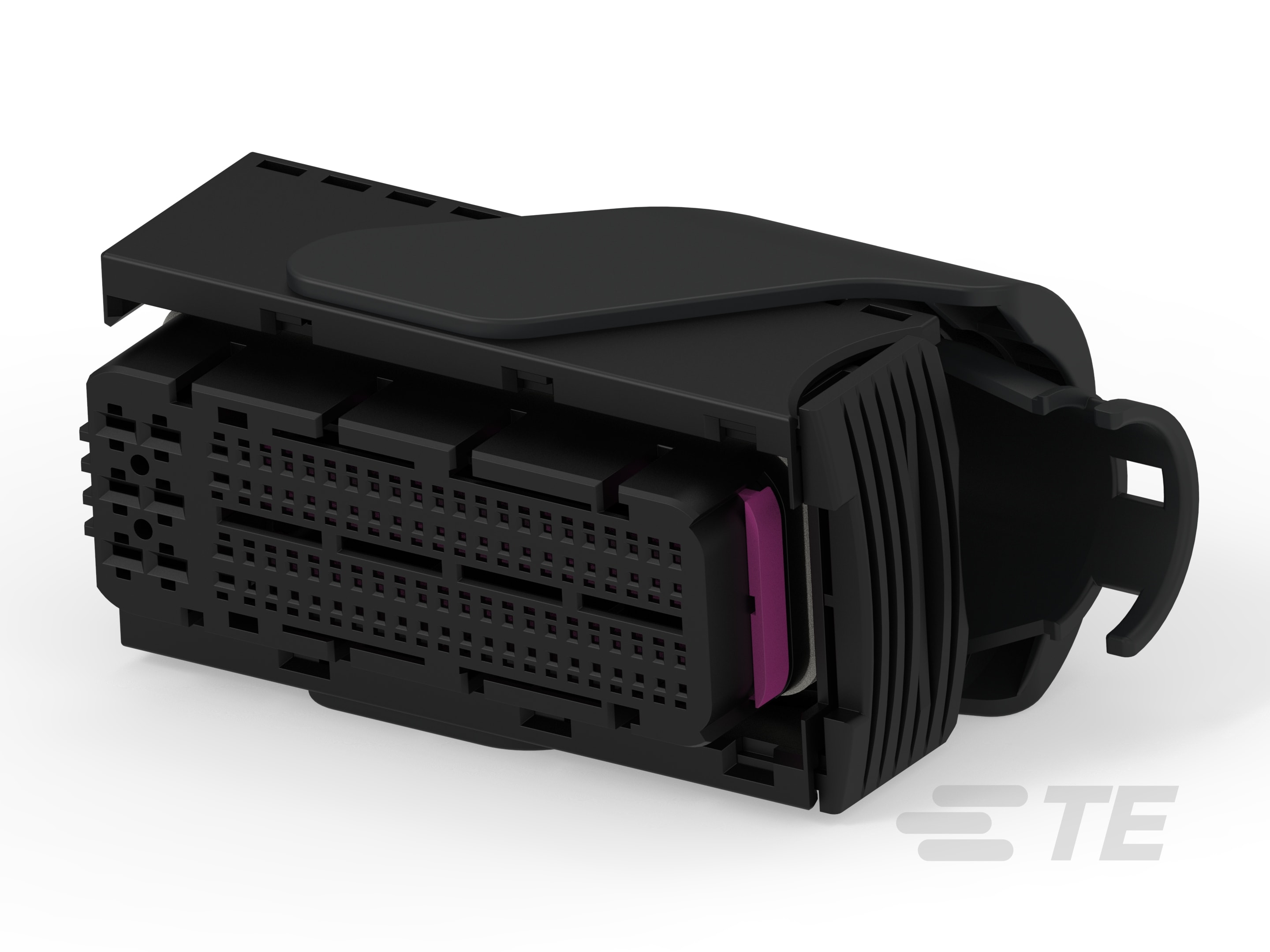

• Connector & Housing Type : Housing for Female Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : No

• Connector System : Wire-to-Board

• Mixed & Hybrid Connector : Yes

• Number of Positions : 94

• Number of Rows : 4

• Blank Cavity Position : 6, 84, 4

• Operating Voltage (VDC): 12

• Nominal Voltage Architecture (V): 12

• Primary Product Color : Black

• Mating Tab Width (mm): .63, 1.5, 2.8

• Mating Tab Width (in): .025, .06, .11

• Contact Current Rating (Max) (A): 7.5, 15, 30

• Contact Size : .63mm, 2.8mm, 1.5mm

• Contact Type : Receptacle

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Mating Alignment : With

• Strain Relief : With

• Housing Material : PBT GF

• Centerline (Pitch) (mm): 2.5, 5.2

• Centerline (Pitch) (in): .098, .204

• Product Width : 36.5 mm [ 1.437 in ]

• Connector Height : 43 mm [ 1.693 in ]

• Product Length : 85.3 mm [ 3.358 in ]

• Row-to-Row Spacing : 2.54 mm [ .1 in ]

• Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]

• Operating Temperature (Max) : 130 °C [ 266 °F ]

• Circuit Application : Power & Signal

• UL Flammability Rating : UL 94HB

• Packaging Method : Box
