3-2232572-4

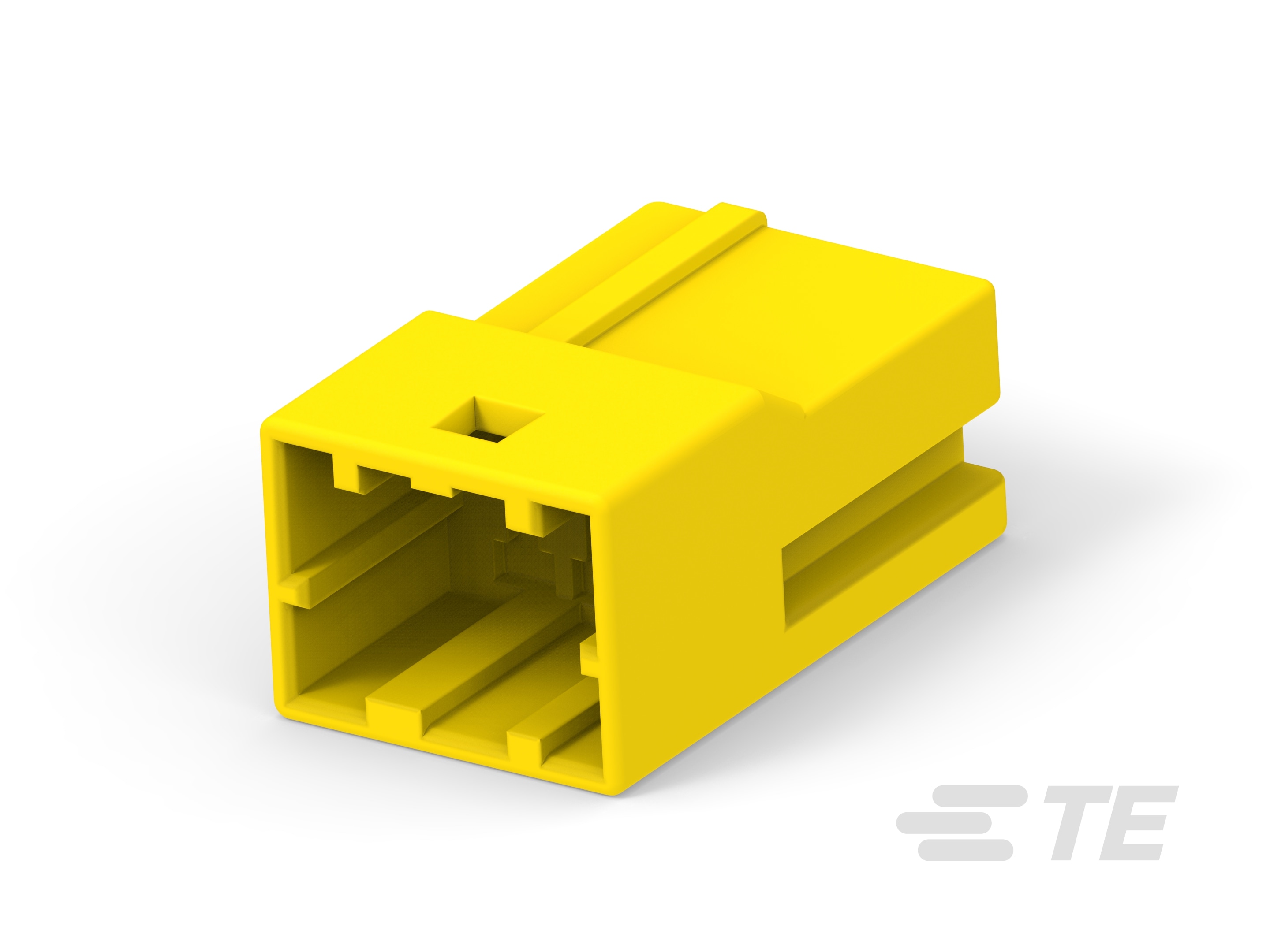

Wire-to-Wire, 3 Position, 2.5 mm [.098 in] Centerline, 1 Row, PBT GF, Receptacle, Tab, Wire & Cable, Signal, Rectangular Connector Housings
3-2232572-4
Wire-to-Wire, 3 Position, 2.5 mm [.098 in] Centerline, 1 Row, PBT GF, Receptacle, Tab, Wire & Cable, Signal, Rectangular Connector Housings
- TE Internal #: 3-2232572-4
- TE Internal Description: GIC 2.5 W CAP HSG 3P YELLOW
- All STD Temp Sig GRACE INERTIA Cap (20)
-
Packaging Method : Bag
-
Operating Temperature Range : -30 – 105 °C [ -22 – 221 °F ]
-
Product Width : 8.8 mm [ .346 in ]
-
Connector & Contact Terminates To : Wire & Cable
-
Contact Layout : Inline
Documents
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_3-2232572-4_A.pdf 3D
- Customer View Model ENG_CVM_CVM_3-2232572-4_A.2d_dxf.zip English
- ENG_CVM_CVM_3-2232572-4_A.3d_igs.zip English
- ENG_CVM_CVM_3-2232572-4_A.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-5203_E1.pdf English
- Product Specification ENG_SS_108-78350_G_108_78350.pdf English
