Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

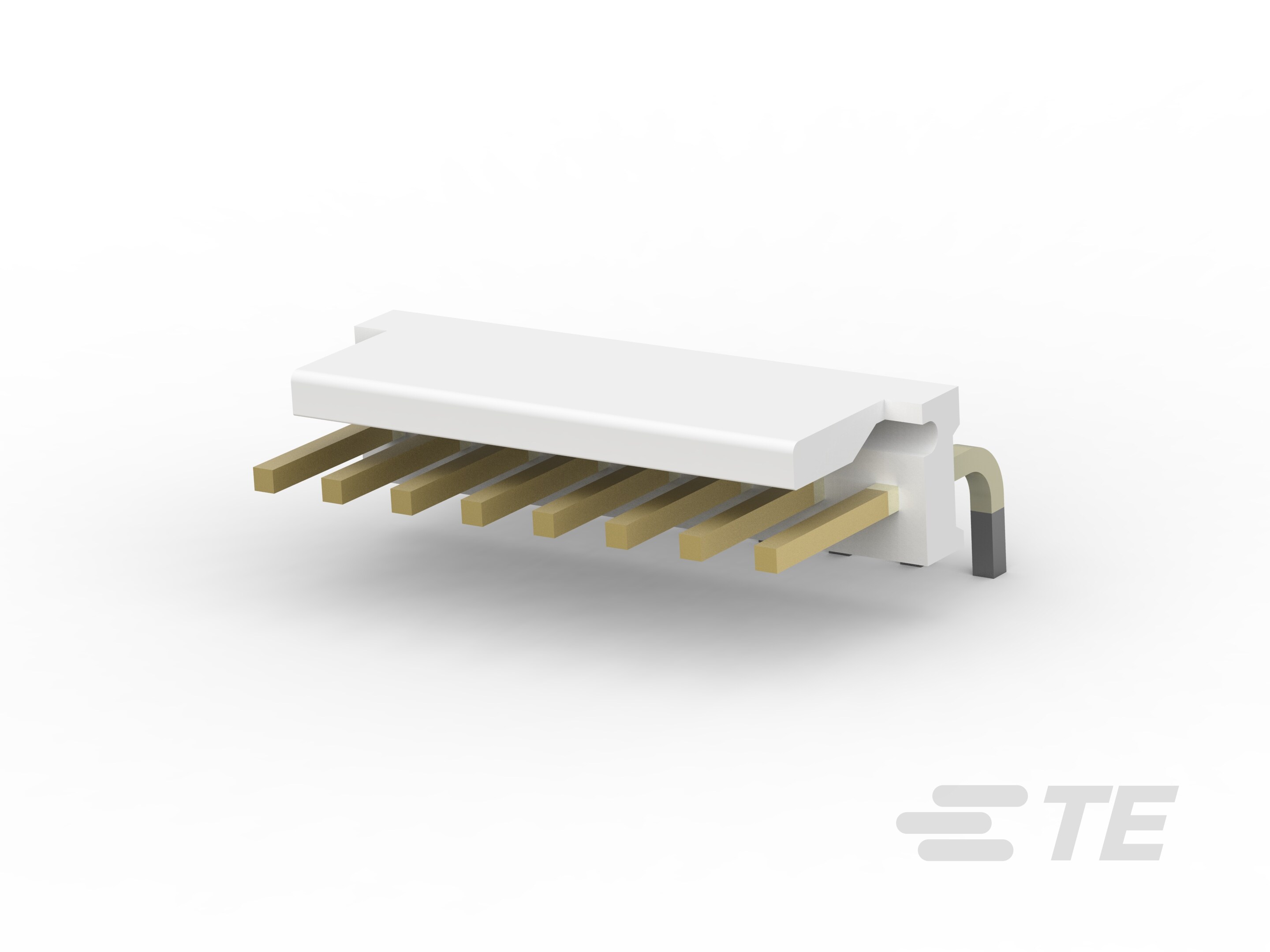

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Partially Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Contact Load Condition : Fully Loaded

• Number of Power Positions : 8

• Number of Loaded Positions : 8

• Number of Columns : 8

• PCB Mount Orientation : Right Angle

• Number of Positions : 8

• Number of Rows : 1

• Right Angle Bending Side : Front

• Housing Material : Thermoplastic Polyester - Glass-Filled

• Mating Entry Location : Side

• Centerline (Pitch) : 3.96 mm [ .156 in ]

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Mating Area Length : 10.16 mm [ .4 in ]

• Contact Layout : Inline

• Contact Shape & Form : Square

• PCB Contact Termination Area Plating Material Thickness : 3.81 – 8.89 µm [ 150 – 350 µin ]

• Mating Square Post Dimension : 1.14 mm [ .045 in ]

• Contact Mating Area Plating Material Thickness : .76 µm [ 30 µin ]

• Contact Size : 1.14mm

• PCB Contact Termination Area Plating Material Finish : Matte

• Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Gold

• Contact Type : Tab

• Contact Current Rating (Max) (A): 14.24

• Square Termination Post & Tail Dimension : 1.14 mm [ .045 in ]

• Termination Post & Tail Length : 3.18 mm [ .125 in ]

• Termination Method to PCB : Through Hole - Solder

• Mating Retention : With

• Mating Retention Type : Friction Lock

• Panel Mount Feature : Without

• PCB Mount Retention : Without

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : Without

• Operating Temperature (Max) : 105 °C [ 221 °F ]

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Glow Wire Rating : Standard Part - Not Glow Wire

• Compatible With Approved Standards Products : UL E28476

• UL Rating : Recognized

• Compatible With Agency/Standards Products : UL, CSA

• UL Flammability Rating : UL 94V-0

• Packaging Quantity : 1000

• Packaging Method : Package

• Connector Length : 31.7 mm [ 1.248 in ]

• Connector Height : 7.62 mm [ .3 in ]

• PCB Thickness (Recommended) : 1.57 mm [ .062 in ]

• Connector Width : 10.79 mm [ .425 in ]

• Operating Voltage (VAC): 600

• Primary Product Color : Natural

• Circuit Application : Power
