3-963214-1

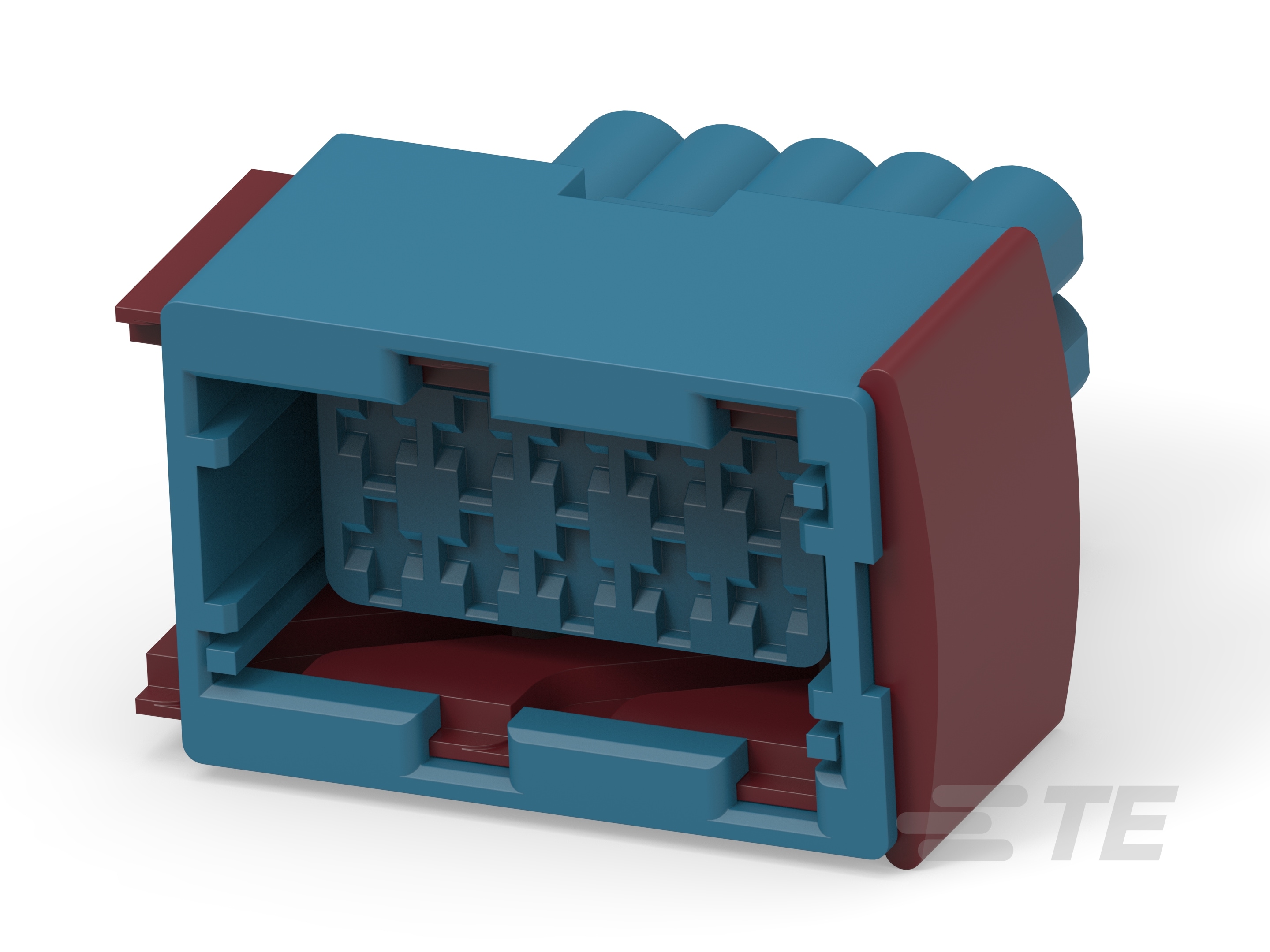

10 Position Housing, Housing for Female Terminals, Wire-to-Wire, 5 mm [.196 in] Centerline, Blue, Wire & Cable, Junior Power Timer
3-963214-1
10 Position Housing, Housing for Female Terminals, Wire-to-Wire, 5 mm [.196 in] Centerline, Blue, Wire & Cable, Junior Power Timer
-
- AMP
- Junior Power Timer
- TE Internal #: 3-963214-1
- TE Internal Description: 10P J-P-T GEH KOMPL
-
Number of Positions : 10
-
Connector & Housing Type : Housing for Female Terminals
-
Mating Tab Width : 2.8 mm [ .11 in ]
-
Connector System : Wire-to-Wire
-
Centerline (Pitch) : 5 mm [ .196 in ]
Documents
Product Drawings
- 10 POS. JPT HOUSING, ASSY ENG_CD_963214_D1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF ENG_CVM_3-963214-1_D.pdf English
- Customer View Model ENG_CVM_3-963214-1_D.2d_dxf.zip English
- ENG_CVM_3-963214-1_D.3d_igs.zip English
- ENG_CVM_3-963214-1_D.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-18175-2_C_114-18175-2.pdf English
