Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

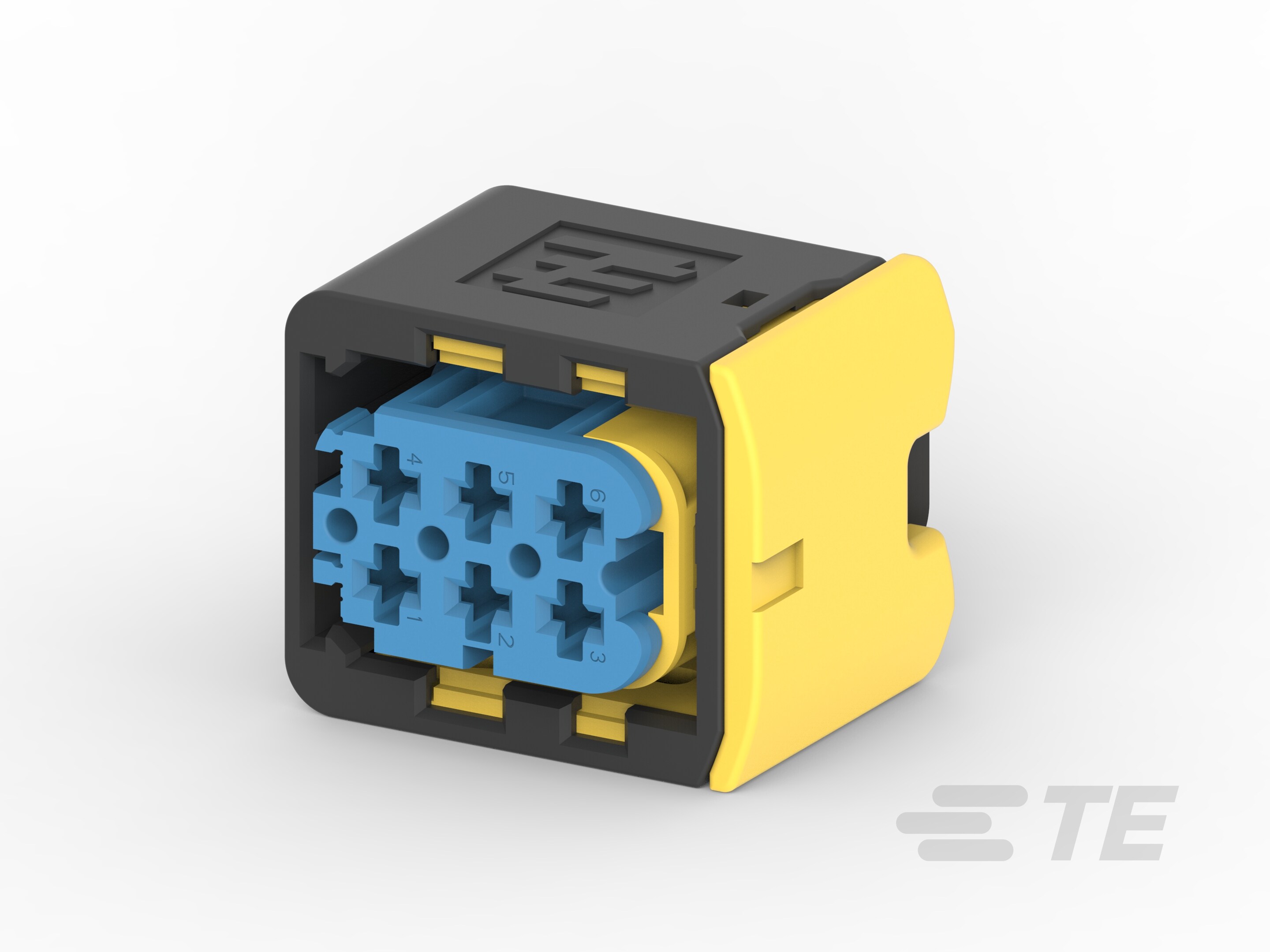

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : On the Terminal

• Connector & Contact Terminates To : Wire & Cable

• Contact Type : Receptacle

• Contact Size : 2.8mm

• Mating Tab Width : 2.8 mm [ .11 in ]

• Contact Current Rating (Max) (A): 40

• Housing Material : PBT GF

• Centerline (Pitch) : 6 mm [ .236 in ]

• Cable Exit Angle : 90°, 180°

• Primary Product Color : Black

• Connector & Keying Code : D

• Serviceable : Yes

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Packaging Method : Box

• Packaging Quantity : 380

• Connector Height : 31.25 mm [ 1.23 in ]

• Product Length : 44 mm [ 1.732 in ]

• Product Width : 25.7 mm [ 1.012 in ]

• Row-to-Row Spacing : 6 mm [ .236 in ]

• UL Flammability Rating : UL 94V-0

• IP Rating : IP67

• Operating Voltage (VDC): 60

• Number of Positions : 6

• Number of Rows : 2

• Operating Temperature (Max) : 140 °C [ 284 °F ]

• Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
