Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

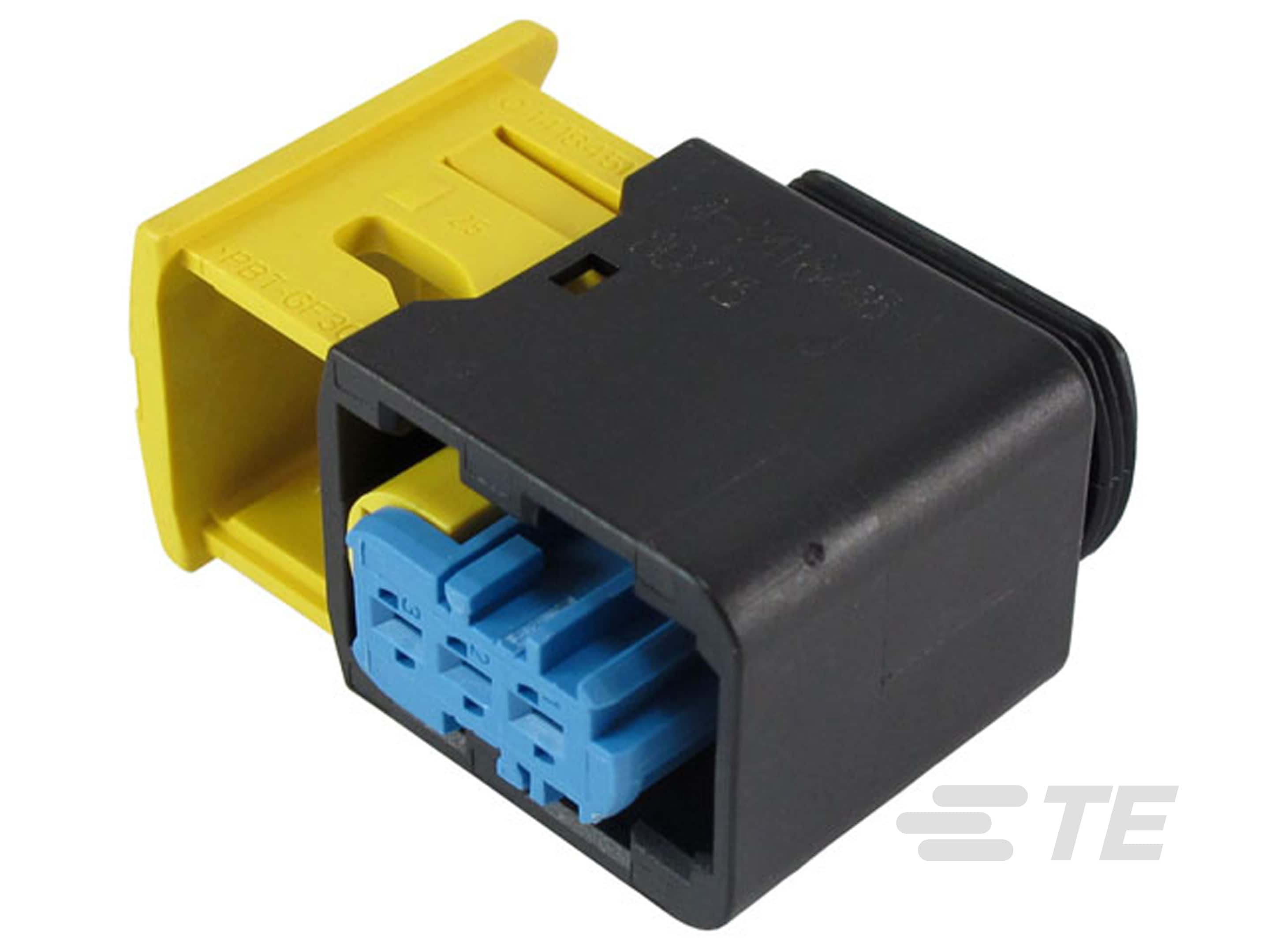

• Connector & Contact Terminates To : Wire & Cable

• Connector & Housing Type : Housing for Female Terminals

• Primary Locking Feature : Integrated in Housing

• Sealable : Yes

• Connector Shape : Rectangular

• Connector System : Wire-to-Wire

• Mixed & Hybrid Connector : No

• Number of Rows : 1

• Number of Positions : 3

• Operating Voltage (VDC): 60

• Nominal Voltage Architecture (V): 60

• Primary Product Color : Blue

• Connector & Keying Code : D

• Cable Exit Angle : 90°, 180°

• Contact Current Rating (Max) (A): 20

• Contact Type : Receptacle

• Mating Tab Width : 1.6 mm [ .063 in ]

• Contact Size : 1.5K

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Terminal Position Assurance : No

• Strain Relief : Without

• Mating Alignment Type : Keyed

• Mating Alignment : With

• Centerline (Pitch) : 4 mm [ .157 in ]

• Housing Material : PBT GF

• Product Width : 18.5 mm [ .728 in ]

• Connector Height : 30.75 mm [ 1.211 in ]

• Product Length : 36 mm [ 1.417 in ]

• Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]

• Operating Temperature (Max) : 140 °C [ 284 °F ]

• Circuit Application : Power

• UL Flammability Rating : UL 94V-0

• Degree of Protection : IP67

• Packaging Method : Package

• Packaging Quantity : 700
