Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

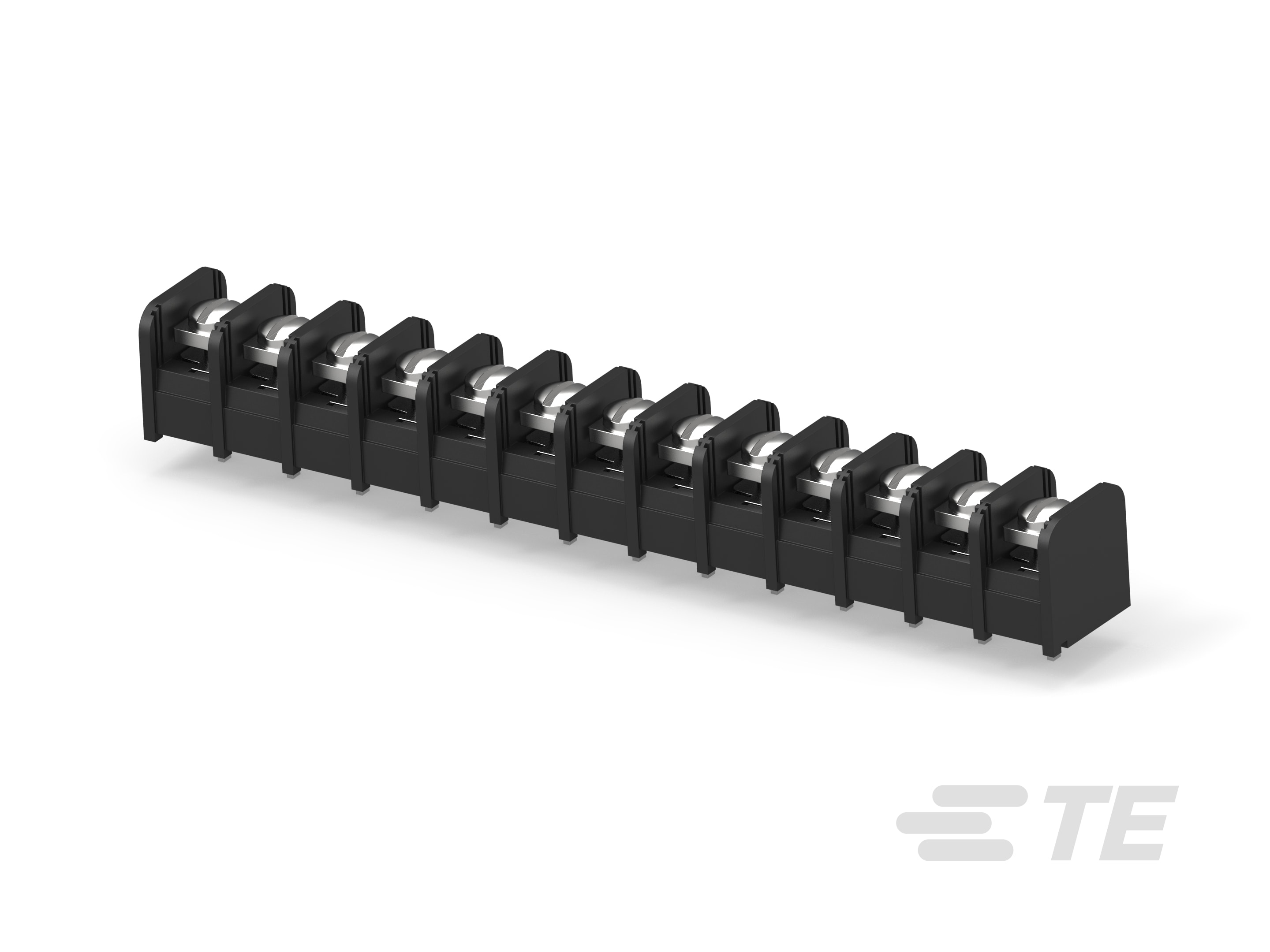

• Number of Levels : 1

• Number of Positions : 13

• Number of Rows : 1

• Product Orientation : Vertical

• Primary Product Color : Black

• Terminal Profile : Low

• Barrier Strip Style : Dual Barrier

• Block Style : Flat Bottom with standoffs

• Connector System : Wire-to-Board

• Connector & Contact Terminates To : Printed Circuit Board

• Housing Material : Polyamide

• Centerline (Pitch) : 9.53 mm [ .375 in ]

• Product Length : 125.37 mm [ 4.936 in ]

• Wire Size (AWG): 22 – 12

• Wire Size (mm²): .3 – 3

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Current Rating (Max) (A): 20

• Screw Head Type : Wire Clamp Combo Head

• Thread Size : 6-32

• Screw Material : Steel

• Screw Plating Material : Zinc

• Mounting Options : None

• Top Termination Type : Wire Clamp Combo Head

• Connector Mounting Type : Board Mount

• Circuit Application : Power

• Packaging Quantity : 1

• Packaging Method : Package

• UL Flammability Rating : UL 94V-0

• Bottom Termination Type : Printed Circuit Pin

• Operating Voltage (V): 300

• Operating Temperature Range : -40 – 105 °C [ -40 – 221 °F ]
