PS0SXDSX0

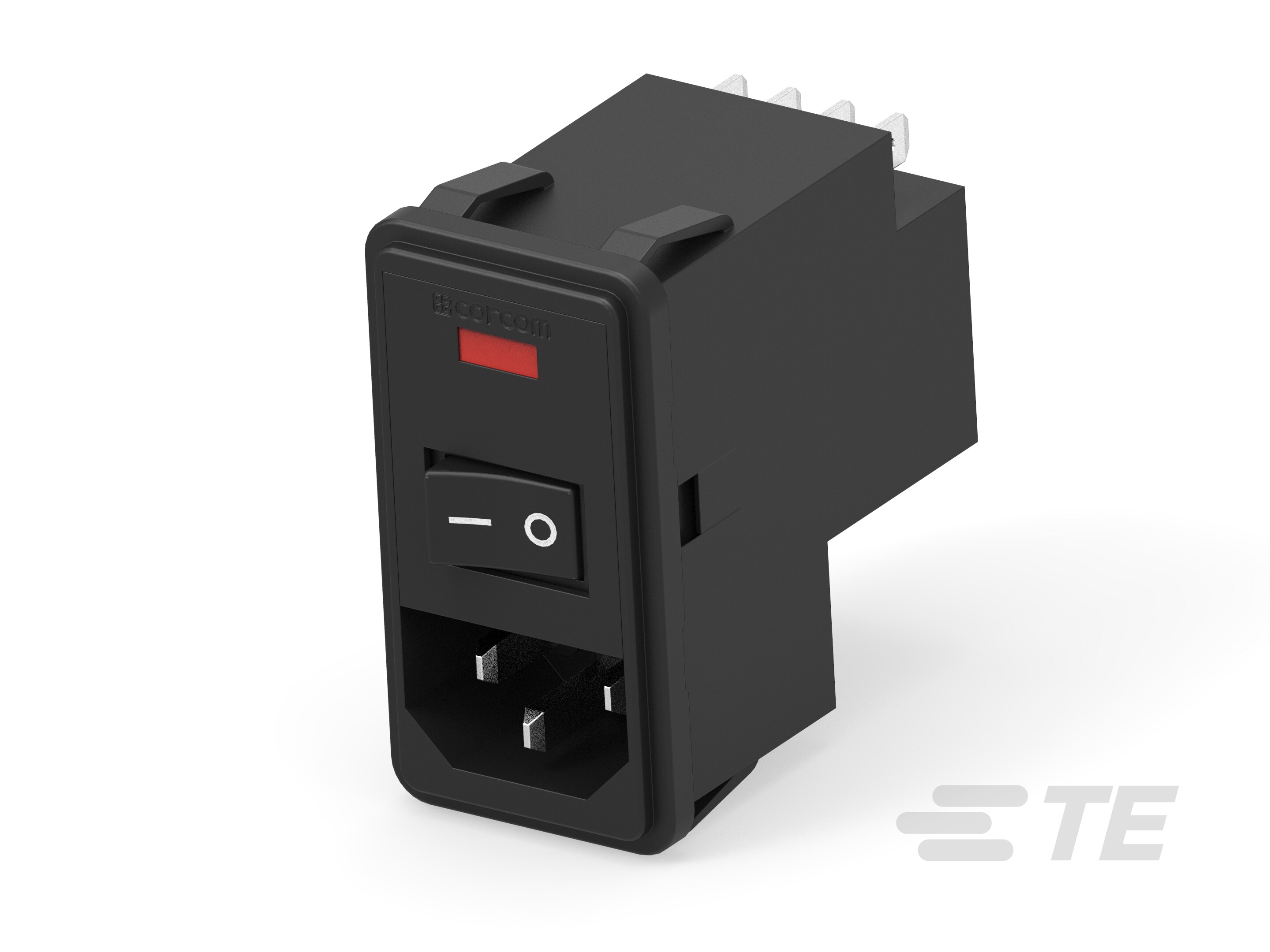

Power Entry (Filtered/Unfiltered), Dual AC (Series/Parallel) Input, DPST, None, Vertical, 10A Current Rating, Corcom P, Power Entry Modules
PS0SXDSX0
Power Entry (Filtered/Unfiltered), Dual AC (Series/Parallel) Input, DPST, None, Vertical, 10A Current Rating, Corcom P, Power Entry Modules
-
- Corcom
- Corcom P
- TE Internal #: 4-6609951-3
- TE Internal Description: PS0SXDSX0=C4457
- All CORCOM P SERIES MULTI-FUNCTION INLET FIL (261)
-
Operating Temperature Range (°C): -10 – 40
-
Fuse Options : Dual
-
Extender Options : None
-
Leakage Current (Max) (120VAC, 60Hz) (µA): 2
-
Filter Connector Type : IEC 60320-1 C-14
Documents
Product Drawings
- Customer Drawing P-Series ENG_CD_P-Series_D.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_4-6609951-3_A.pdf 3D
- 3D_CVM_CVM_4-6609951-3_O.pdf 3D
- Customer View Model ENG_CVM_4-6609951-3_A.3d_igs.zip English
- ENG_CVM_4-6609951-3_A.3d_stp.zip English
- ENG_CVM_4-6609951-3_A.2d_dxf.zip English
- ENG_CVM_CVM_4-6609951-3_O.3d_igs.zip English
- ENG_CVM_CVM_4-6609951-3_O.3d_stp.zip English
- ENG_CVM_CVM_4-6609951-3_O.2d_dxf.zip English
Datasheets & Catalog Pages
- Corcom Combined Selector Charts ENG_DS_1-1773858-6_Corcom_Selector_Charts_0618.pdf English
- 1-1654250-1_CORCOM_EMI_RFI_QRG ENG_DS_1-1654250-1_CORCOM_EMI_RFI_QRG_1011.pdf English
